Summit SWC532BLBISTPNRLHD 24" Wide Built-In Wine Cellar (Panel Not Included)
Summit'S Extensive Selection Of Built-In Undercounter Commercially Approved Wine Cellars Includes Elegant Choices That Let You Achieve A Custom Look Ideal For Any Space. The Swc532Blbistpnrlhd Is A Dual Zone Wine Cellar Sized For 24" Spaces. The Front-Breathing Design Allows Built-In Installation, While The Fully Finished Black Cabinet Also Enables Freestanding Use. The Panel-Ready Door Features Our Fully Articulating European Style Hinging, With A 2-Piece Bracket Kit Included To Allow Easy Installation Of Your Own Custom Door Trim To Match Or Blend Into Adjacent Cabinetry. A Factory-Installed Lock Offers Added Security And A Stainless Steel Kickplate Completes The Look. Inside, The Swc532Blbistpnrlhd Is Designed To Store Up To 46 Standard Bordeaux Style Bottles, Or A Combination Of 30 Bordeaux And 16 Wider Burgundy Bottles. The Digital Control Panel Allows You To Manage The Upper Temperature Chamber Between 41 And 50 F For White Wine, While The Lower Zone Is Designed To Store Red Wine Between 50 And 64 F. Six Full-Extension Black Wire Shelves With Stainless Steel Front Trim Move Out Smoothly On Ball-Bearing Glides For Easy Loading. Both Compartments Include Recessed Led Lighting In A Gentle Blue Hue For An Attractive And Efficient Presentation. This Unit Is Etl-S Listed To Nsf-7 Commercial Standards. With Its Advanced User Features And Versatile Design, The Swc532Blbistpnrlhd Makes A Great Addition To Any Ada Compliant Setting Looking To Store Wine In Modern Style. Additional Panel-Ready Wine Cellars Are Available In More Sizes (Including Shallow Depth). Explore The Full Summit Line To Discover The Perfect Choice For Your Space.

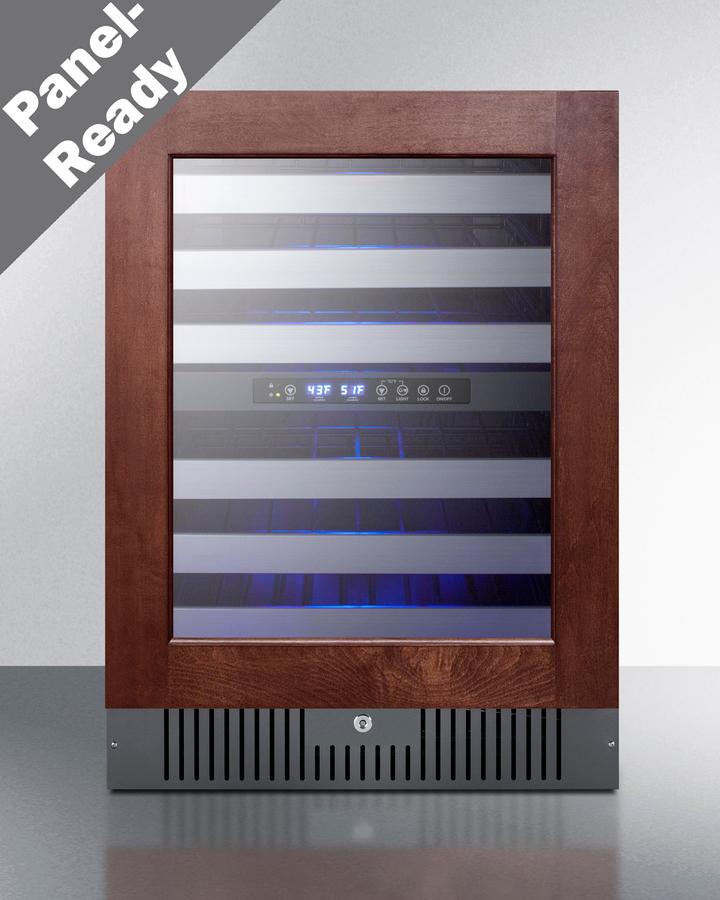

- Undercounter wine cellar with a panel-ready glass door in a 24" footprint with evenly split temperature zones
- Front-breathing design allows this unit to be installed under counters
- Innovative bracket kit allows easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 29 1/4" H x 23 1/8" W with a 22 3/8" H x 17 3/4" W viewable area
- Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving and offers a more versatile fit for a variety of bottles
- Shelves move smoothly on ball-bearing glides for easier loading and unloading
- Lower zone for reds has a temperature range of 50 F to 64 F; Upper zone stores whites and sparkling wine between 41 F and 50 F
- Easy temperature management with electronic controls located inside
- Temperature viewable in Celsius or Fahrenheit
- Reduced maintenance with auto defrost system
- Provides a full display of the interior, with two levels of glass for added protection
- Recessed LED lighting in both compartments brings striking blue illumination to your collection
- Keyed lock for secure interior, with two keys included

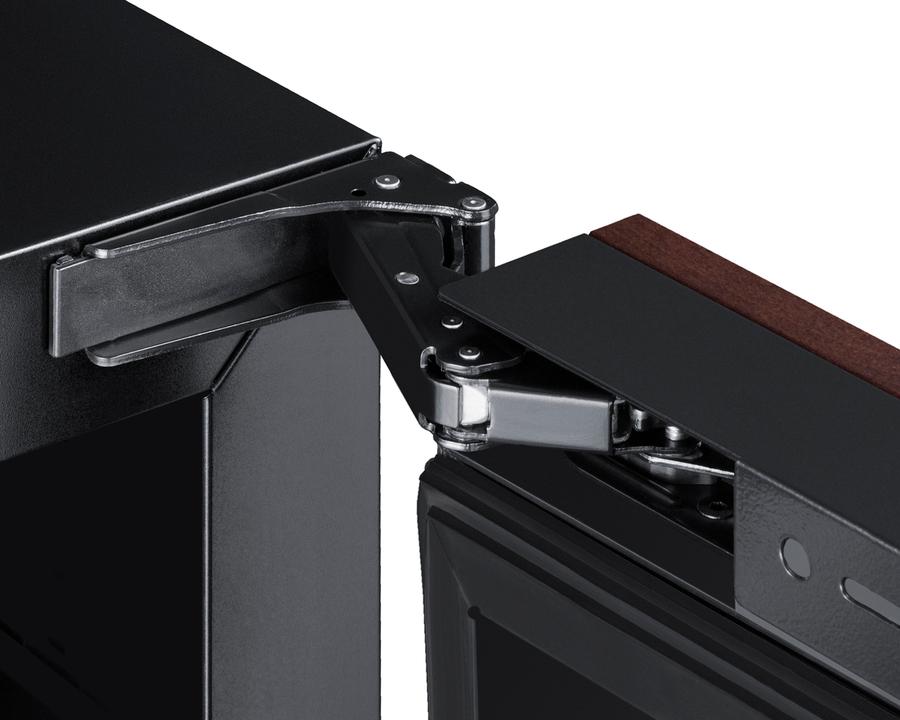

- Smoother opening and a better fit with an integrated European style door hinge
- Allows the unit to be used freestanding
- ETL-S listed to NSF-7 Standards for use in commercial establishments
- Environmentally friendly design with no ozone-damaging chemicals
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Overview | |

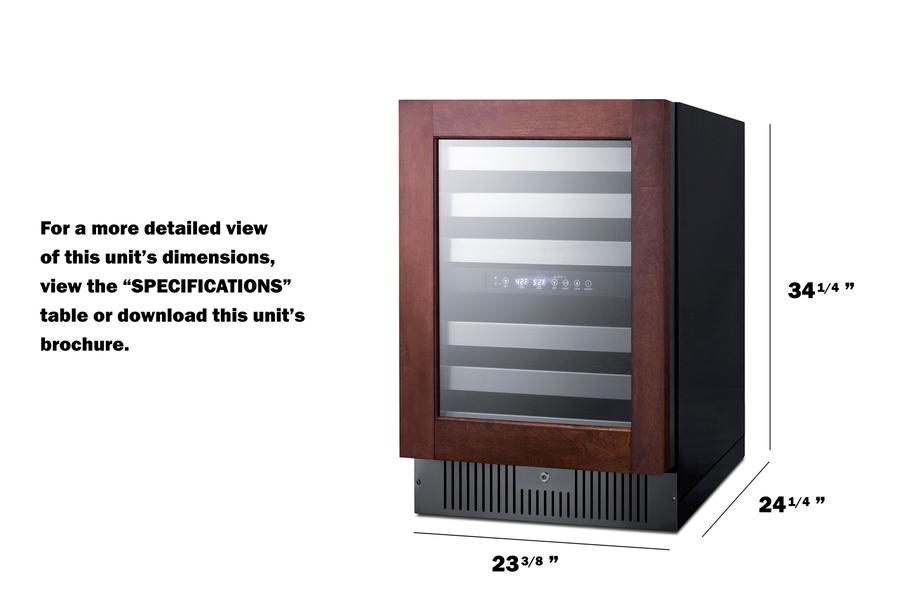

Nominal Height | 34.0' (86 cm) |
Height of Cabinet | 34.25' (87 cm) |
Nominal Width | 24.0' (61 cm) |
Width | 23.38' (59 cm) |
Nominal Depth | 24.0' (61 cm) |
Depth | 23.5' (60 cm) |
Depth with door at 90° | 47.38' (120 cm) |
Bottles | 46 bottles |
Defrost Type | Automatic |
Door | Glass/Panel-Ready Frame |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Amps | 1.25 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 113.0 lbs. (51 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101101552 |
Wine Cellar | |
Number of Zones | 2 |
Door Swing | LHD |
Shelf Type | Wire |
Shelf Qty | 6 |
Thermostat Type | Digital |
Interior Light | Yes |
Fan Type | Interior and Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 1.23 oz. |
High Side PSI | 150.0 |
Low Side PSI | 50.0 |
Interior Height 1 | 11.63' (30 cm) |
Interior Width 1 | 20.5' (52 cm) |
Interior Depth 1 | 18.0' (46 cm) |
Compressor Step Depth | 6.0' (15 cm) |
Level Legs | 2 |
Temperature Range | 41 to 64 F |
Interior Height 2 | 11.88' (30 cm) |
Interior Width 2 | 20.5' (52 cm) |
Interior Depth 2 | 18.0' (46 cm) |
