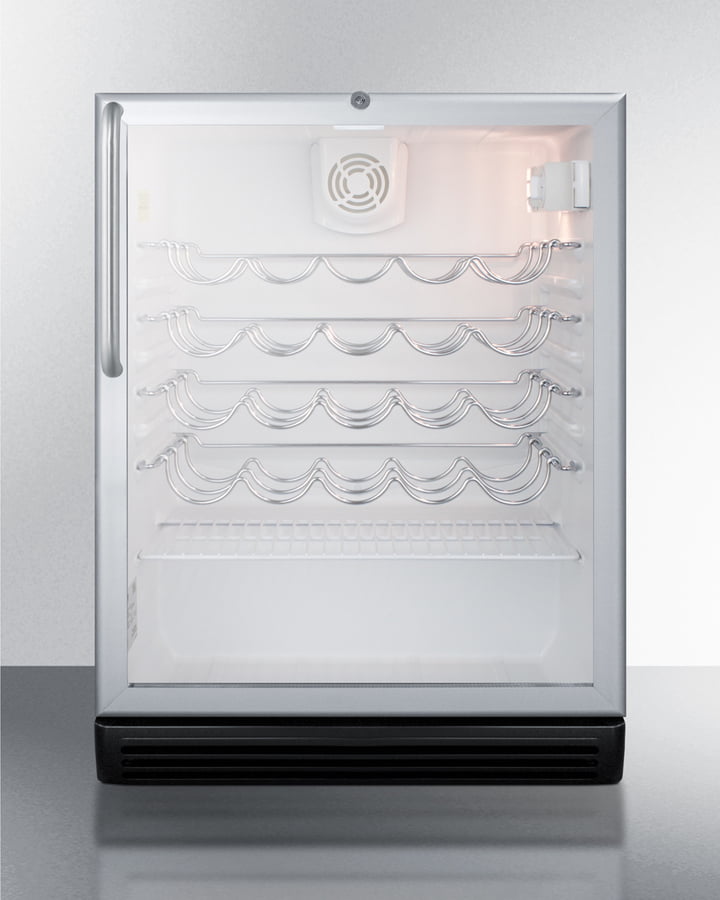

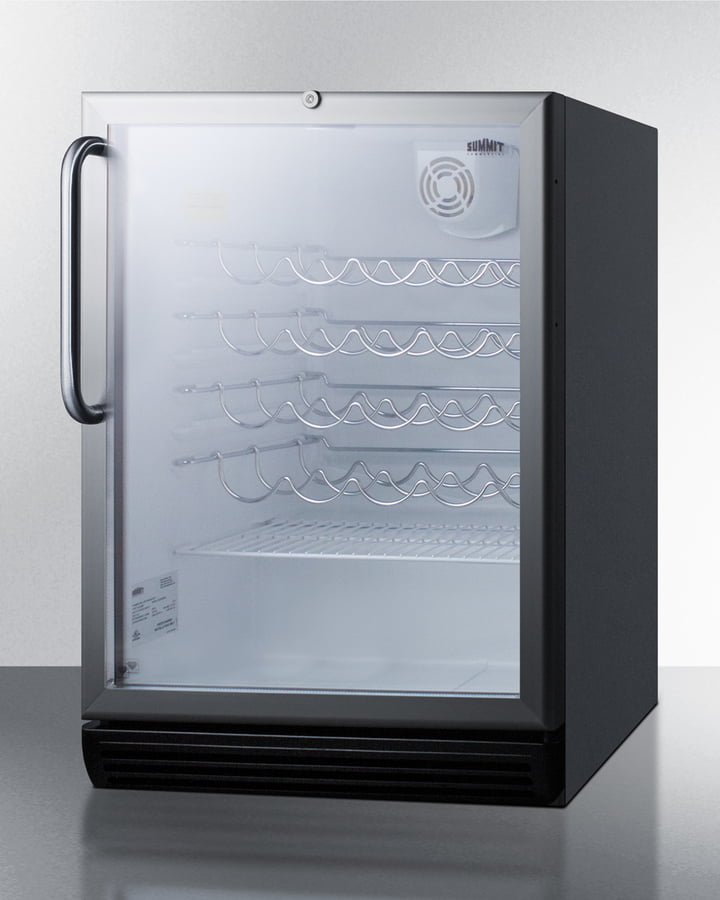

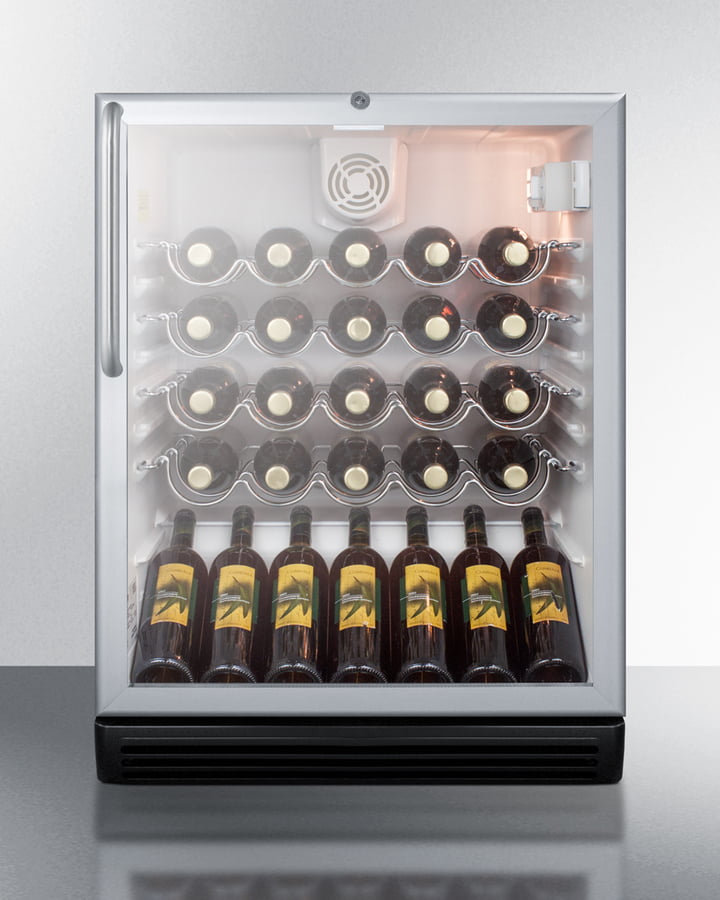

Summit SWC6GBLBITBADA 24" Wide Built-In Wine Cellar, Ada Compliant
32" Height Fits Under Lower Ada Compliant Counters (Bull)Commercially Approved To Nsf-7 Standards (Bull)European Built Wine Cellar Designed For Safe Storage With Elegant Display (Bull)Flexible Design Allows Built-In Or Freestanding Use In 24" Wide Spaces (Bull)Professional Towel Bar Handle In Brushed Stainless Steel (Bull)Factory-Installed Lock For Security You Can Count On Summit Swc6Gbiada Series Features European Designed, Commercially Approved Wine Cellars Capable Of Built-In Use Under Lower Ada Compliant Counters. The Swc6Gblbitbada Is Conveniently Sized At Just 24" Wide, With A Front-Breathing Design For Built-In Installation Under Counters. The Fully Finished Jet Black Cabinet Also Allows Freestanding Use. This Unit Features A Double Pane Tempered Glass Door For Reliable Storage. We Include Our Signature Towel Bar Style Handle In Brushed Stainless Steel To Complete The Professional Look. The Lock Is Located Towards The Top Of The Door For Easier Access. Inside, The Swc6Gblbitbada Includes Adjustable Scalloped Shelves Perfectly Designed To Hold Bottles In Place. The White Interior Helps To Improve Visibility, Letting Your Collection Stand Out Clearly. This Unit Includes An Interior Light With An On/Off Rocker Switch Located Behind The Adjustable Dial Thermostat. The Swc6Gblbitbada Is Made In Europe And Is Etl-S Listed To Nsf-7 Standards For Commercial Use. Additional Handle Styles And Door Tint Options Are Available. Note: These Models Are Designed Primarily For White Wine Storage But Can Be Upgraded With A Digital Thermostat To Accommodate Red Wine Temperatures.
- ADA compliant : 32" high to fit under lower ADA compliant counters
- Commercially approved : ETL-S listed to NSF-7 for use in foodservice establishments
- Built-in capable : Make the best use of space by installing your appliance under the counter and flush with other cabinets
- Double pane tempered glass door : Display your collection behind a solid glass door trimmed in elegant brushed aluminum for a refined touch
- Professional towel bar handle : A curved stainless steel handle provides generous room for a comfortable grip
- Factory installed lock : Keyed lock for secure interior, conveniently located at the top of the door
- Automatic defrost : Reduced maintenance with auto defrost system
- Internal fan : Fan-forced cooling helps to maintain a more evenly cooled interior
- Scalloped steel shelving : Curved shelves designed for the ideal storage of wine bottles
- Half-sized wire shelf : Fan-forced cooling helps to maintain a more evenly cooled interior
- Adjustable thermostat : Dial thermostat accommodates white wine temperature. If using this model for red wine storage, add a DT digital thermostat upon ordering
- Interior light : Illuminate your collection with an interior light controlled by a rocker on/off switch
- Hidden evaporator : SUMMIT's original "hidden" evaporator is concealed in the wall so it never touches your fingers or food
- Fully finished black cabinet : Allows the unit to be used freestanding
- 100% CFC Free : Environmentally friendly design
- Temperature range : 5 C to 10 C/41 F to 50 F; To reach warmer temperatures, order with our red wine digital thermostat option (10 C to 18 C/50 F to 64 F range)
Overview | |
Height of Cabinet | 32.0' (81 cm) |
Height to Hinge Cap | 32.38' (82 cm) |
Width | 23.63' (60 cm) |
Depth | 23.5' (60 cm) |
Capacity | 5.5 cu.ft. (156 L) |
Bottles | 36 bottles |
Defrost Type | Automatic |
Door | Glass |
Cabinet | Black |
US Electrical Safety | UL |
Canadian Electrical Safety | ULC |
Sanitation | ETL-S |
Amps | 1.3 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 115.0 lbs. (52 kg) |
Shipping Weight | 120.0 lbs. (54 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
Wine Cellar | |
Number of Zones | 1 |
Door Swing | RHD |
Reversible | Factory Reversible |
Shelf Type | Scalloped |
Shelf Qty | 4 |
Thermostat Type | Dial |
Interior Light | Yes |
Fan Type | Interior and Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 0.67 oz. |
High Side PSI | 124.0 |
Low Side PSI | 30.0 |
Interior Height 1 | 26.0' (66 cm) |
Interior Width 1 | 20.75' (53 cm) |
Interior Depth 1 | 17.5' (44 cm) |
Compressor Step Height | 6.0' (15 cm) |
Compressor Step Width | 20.75' (53 cm) |
Compressor Step Depth | 5.0' (13 cm) |
Exterior | |
SSK | Latch for door |
LHD - Left hand door swing | SCD - Self-closing door |
Extra key | Alarm |
DT - Digital thermostat | - |
Door | |
T1 Door Tint | T1S Door Tint |
T2 Door Tint | T3 Door Tint |
T4 Door Tint | - |
