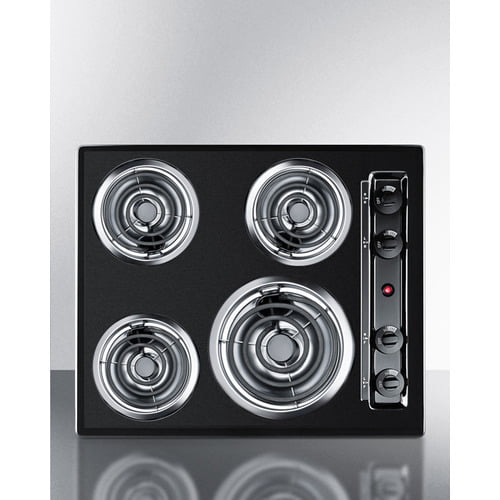

Summit TEL03 24" Wide 4-Burner Coil Cooktop
24" Wide For Full Cooking Capacity In Smaller Kitchen Spaces. Coil Elements For Long-Lasting Durability. Porcelain Enamel Surface Offers Easy Cleanup And Long-Term Durability. Made In The USA Summit's Built-In Electric Cooktops Offer Quality Performance At Great Value, With A Range Of Sizes And Styles To Suit Your Kitchen Needs. The Tel03 Is A 24" Wide Cooktop Designed To Fit 22 5/8" Wide X 18 5/8" Deep Cutouts. It Features A Porcelain Surface In A Black Finish For A Classic Look, With A Recessed Design That Helps To Contain Spills. Side-Located Push-To-Turn Knobs Offer Easy And Safe Use. Three 6" Coil Elements And One 8" Element Offer Reliable Heating With Lasting Durability. Each Element Includes A Removable Chrome Drip Pan For Easier Cleanup. This Is A 220V Cooktop And Requires Professional Installation. The Cord Is Not Included. The Tel03 Is Made In The USA. Additional Finishes Are Available, As Well As 30" Sizes For Smaller Kitchen Spaces. Browse Summit's Cooktop Line Up For More Choices.
- Coil elements : Traditional design offers reliable heating and strong durability for everyday use
- Fits popular cutout size : Designed for 22 5/8" W x 18 5/8" D cutouts for an easy fit in smaller kitchens
- 8" burner : Larger element is ideal for heating wider pots and and pans
- Three 6" burners : Standard burners accommodate most heating needs
- Porcelain cooking surface : Black finish on scratch resistant top
- Chrome drip bowls : Drip pans help to contain spills and can be removed for easy cleaning
- Recessed top : Curved design helps to contain spills on the surface
- Push-to-turn controls : Knobs require a small amount of force for added safety
- 230V operation : Professional installation required
| Overview | |
| Height of Cabinet | 3.75' (10 cm) |
| Width | 24.0' (61 cm) |
| Depth | 20.0' (51 cm) |
| Cabinet | Black |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Voltage/Frequency | 230 V AC/60 Hz |
| Weight | 27.0 lbs. (12 kg) |
| Shipping Weight | 29.0 lbs. (13 kg) |
| Parts & Labor Warranty | 1 Year |
| Electric Cooktop | |
| Heating Type | Radiant |
| Surface | Painted |
| Element Type | Coils |
| Number of Elements | 4 |
| controls | Dial |
| Countertop Cutout Width | 22.63' (57 cm) |
| Countertop Cutout Depth | 18.63' (47 cm) |
| Element #1 Size | 6.0' (15 cm) |
| Element #1 Wattage | 675.0 |
| Element #2 Size | 8.0' (20 cm) |
| Element #2 Wattage | 950.0 |
| Element #3 Size | 6.0' (15 cm) |
| Element #3 Wattage | 675.0 |
| Element #4 Size | 6.0' (15 cm) |
| Element #4 Wattage | 675.0 |
