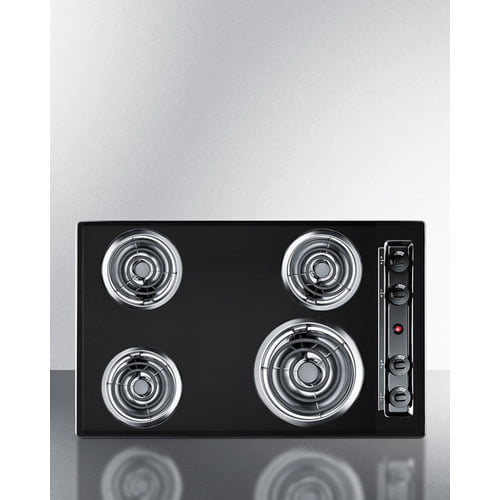

Summit TEL05 30" Wide 4-Burner Coil Cooktop
30" Wide For An Easy Fit In Common Counter Cutouts Coil Elements For Long-Lasting Durability Porcelain Enamel Surface Offers Easy Cleanup And Long-Term Durability Made In The USA Summit's Built-In Electric Cooktops Offer Quality Performance At Great Value, With A Range Of Sizes And Styles To Suit Your Kitchen Needs. The Tel05 Is A 30" Wide Cooktop Designed To Fit 28 3/8" Wide X 18 5/8" Deep Cutouts. It Features A Porcelain Surface In A Black Finish For A Classic Look, With A Recessed Design That Helps To Contain Spills. Side-Located Push-To-Turn Knobs Offer Easy And Safe Use. Three 6" Coil Elements And One 8" Element Offer Reliable Heating With Lasting Durability. Each Element Includes A Removable Chrome Drip Pan For Easier Cleanup. This Is A 220V Cooktop And Requires Professional Installation. Cord Not Included. The Tel05 Is Made In The USA. Additional Finishes Are Available, As Well As 24" Sizes For Smaller Kitchen Spaces. Browse Summit's Cooktop Line Up For More Choices.
- Coil elements : Traditional design offers reliable heating and strong durability for everyday use
- Fits common cutouts : Designed to fit common 28 3/8" W x 18 5/8" D counter cutouts
- 8" burner : Larger element is ideal for heating wider pots and pans
- Three 6" burners : Standard burners accommodate most heating needs
- Porcelain cooking surface : Black finish on scratch resistant top
- Push-to-turn controls : Knobs require a small amount of force for added safety
- Chrome drip bowls : Drip pans help to contain spills and can be removed for easy cleaning
- Recessed top : Curved design helps to contain spills on the surface
- 230V operation : Professional installation required
| Overview | |
| Height of Cabinet | 3.75' (10 cm) |
| Width | 29.75' (76 cm) |
| Depth | 20.0' (51 cm) |
| Cabinet | Black |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Voltage/Frequency | 230 V AC/60 Hz |
| Weight | 30.0 lbs. (14 kg) |
| Shipping Weight | 32.0 lbs. (15 kg) |
| Parts & Labor Warranty | 1 Year |
| Electric Cooktop | |
| Heating Type | Radiant |
| Surface | Painted |
| Element Type | Coils |
| Number of Elements | 4 |
| controls | Dial |
| Countertop Cutout Width | 28.38' (72 cm) |
| Countertop Cutout Depth | 18.63' (47 cm) |
| Element #1 Size | 6.0' (15 cm) |
| Element #1 Wattage | 675.0 |
| Element #2 Size | 8.0' (20 cm) |
| Element #2 Wattage | 950.0 |
| Element #3 Size | 6.0' (15 cm) |
| Element #3 Wattage | 675.0 |
| Element #4 Size | 6.0' (15 cm) |
| Element #4 Wattage | 675.0 |
