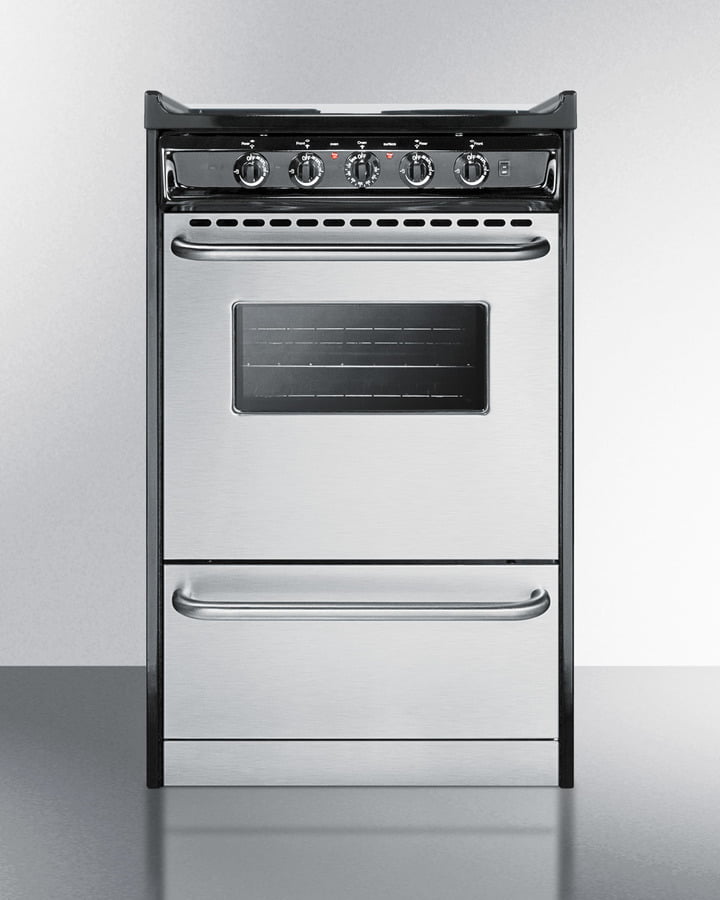

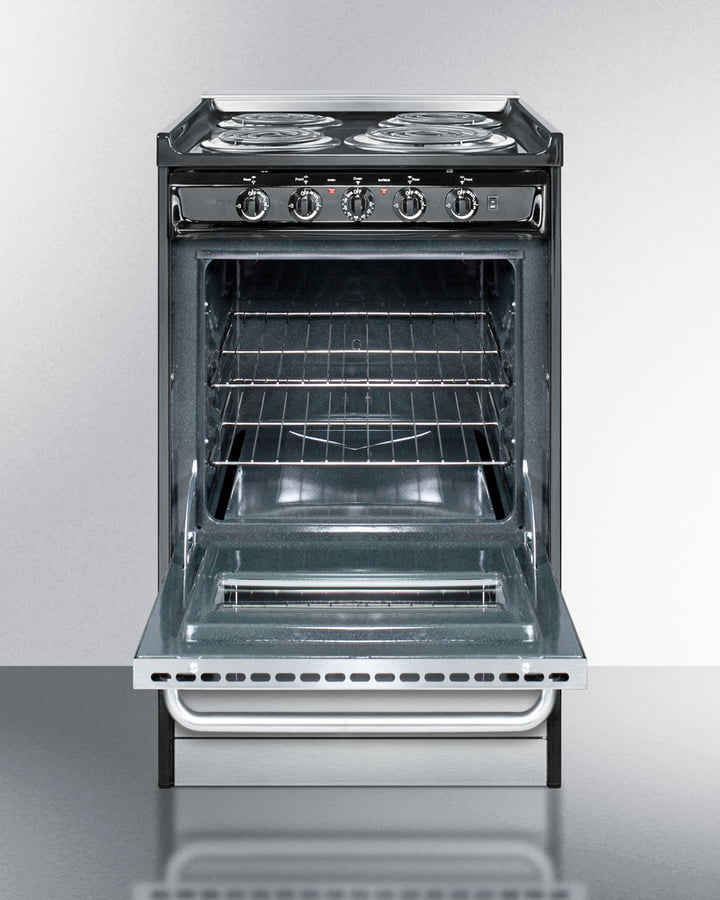

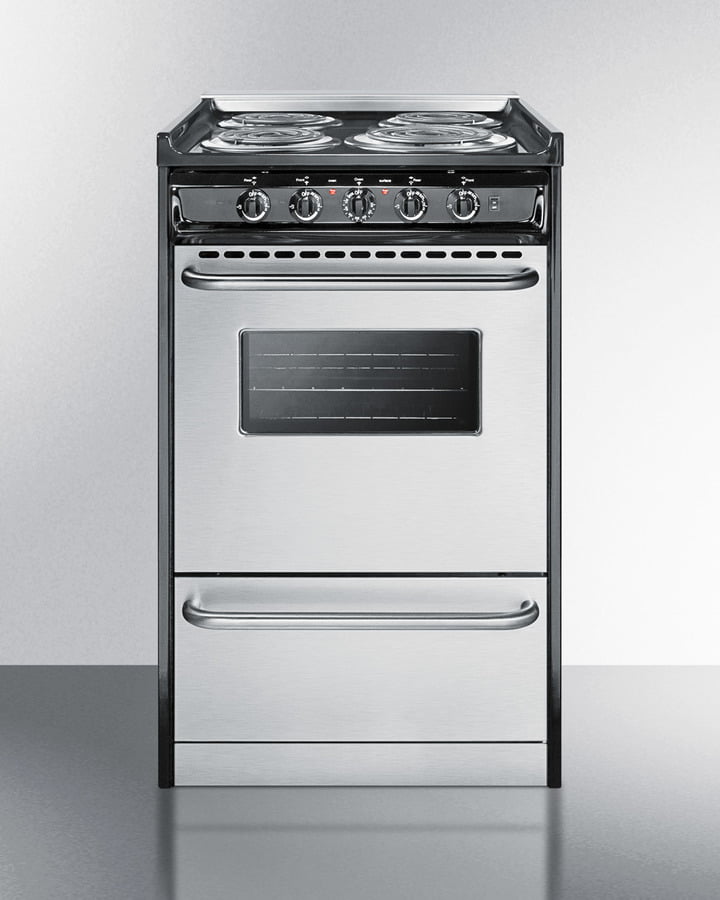

Summit TEM110BRWY 20" Wide Electric Coil Range
Black Porcelain Construction On Range Top (Bull)Slide-In Look With Flat Backguard (Bull)Electric Range With Slim 20 Inch Width That Fits Easily In Small Kitchens (Bull)Stainless Steel Oven Door And Kickplate With Professional Handles For A True Modern Look (Bull)Lower Storage Compartment For Pots And Pans (Bull)Ada Compliant Design For Easier Accessibility (Bull)Made In The U.S.A. Summit Professional Brings Luxury To Apartment Sized Ranges With Our Exclusive Line Of 'Slide-In' Ovens. The Tem110Brwy Electric Range Is Conveniently Sized At Just 20" Wide To Fit Into Even The Tightest Of Kitchen Spaces. Elegant Stainless Steel Doors On The Oven And Lower Drop-Down Storage Compartment Are Matched With Solid Towel Bar Style Handles. Our 'Slide-In' Units Have A Low Stainless Top Frame That Lets You Customize The Wall Behind Your Range Without Planning Around A Backguard. A Stainless Steel Manifold Completes The Modern Look. Solidly Constructed From Black Porcelain And Steel, The Tem110Brwy Is Easy To Clean And Striking To View. The Oven Has A Clear Window And Light So You Can Keep A Watch On Your Cooking. Enjoy The Best Meals In Unique Style With Lasting Durability.
- 220V Electric range : Includes one 8" and three 6" coil elements
- Slim 20 inch width : Apartment sized to fit in small or galley kitchens
- Black porcelain range top : Removable top and door made from solid porcelain
- Stainless steel oven door : Added style with incredible durability
- Stainless steel toe plate : Completes the look for full-length luxury
- Oven window : Provides a convenient view
- Professional stainless steel handles : Curved towel bar style handles are easy to grip and elegant to view
- Recessed oven door : Smart design limits the depth and protects adjacent cabinets
- Slide-in look : Flat backguard can blend into other cabinetry and lets you choose your own wall design behind the range
- Stainless steel rear trim : Low rear trim is finished in stainless steel for an attractive look
- Broiler pan included : Two-piece porcelain broiler tray with grease well
- Storage compartment : Bottom drop-down compartment for cookware storage
- ADA compliant : Front-located controls and proper sizing meets ADA guidelines for added accessibility
Overview | |
Height of Cabinet | 36.0' (91 cm) |
Width | 20.0' (51 cm) |
Depth | 24.5' (62 cm) |
Door | Stainless Steel |
Cabinet | Black |
Voltage/Frequency | 220 V AC/60 Hz |
Weight | 125.0 lbs. (57 kg) |
Shipping Weight | 130.0 lbs. (59 kg) |
Parts & Labor Warranty | 1 Year |
Electric Range | |
Oven Capacity | 2.46 cu.ft. (70 L) |
Cooktop Surface | Porcelain |
Element Type | Coils |
Number of Elements | 4 |
Element #1 Size | 6.0' (15 cm) |
Element #1 Wattage | 675.0 |
Element #2 Size | 6.0' (15 cm) |
Element #2 Wattage | 675.0 |
Element #3 Size | 6.0' (15 cm) |
Element #3 Wattage | 675.0 |
Element #4 Size | 8.0' (20 cm) |
Element #4 Wattage | 950.0 |
Burner Controls | Dial |
Oven Controls | Dial |
Oven Light | Yes |
Cooking Timer | Yes |
Oven Window | Yes |
Oven Interior Height | 14.0' (36 cm) |
Oven Interior Width | 16.0' (41 cm) |
Oven Interior Depth | 19.0' (48 cm) |
Interior | |
Heat Sense | Canadian Range Conversion |
Exterior | |
RangeCord3P - Installed 3-pronged cord | RangeCord4P - Installed 4-pronged cord |
Overview | |
Height of Cabinet | 36.0' (91 cm) |
Width | 20.0' (51 cm) |
Depth | 24.5' (62 cm) |
Door | Stainless Steel |
Cabinet | Black |
Voltage/Frequency | 220 V AC/60 Hz |
Weight | 125.0 lbs. (57 kg) |
Shipping Weight | 130.0 lbs. (59 kg) |
Parts & Labor Warranty | 1 Year |
Electric Range | |
Oven Capacity | 2.46 cu.ft. (70 L) |
Cooktop Surface | Porcelain |
Element Type | Coils |
Number of Elements | 4 |
Element #1 Size | 6.0' (15 cm) |
Element #1 Wattage | 675.0 |
Element #2 Size | 6.0' (15 cm) |
Element #2 Wattage | 675.0 |
Element #3 Size | 6.0' (15 cm) |
Element #3 Wattage | 675.0 |
Element #4 Size | 8.0' (20 cm) |
Element #4 Wattage | 950.0 |
Burner Controls | Dial |
Oven Controls | Dial |
Oven Light | Yes |
Cooking Timer | Yes |
Oven Window | Yes |
Oven Interior Height | 14.0' (36 cm) |
Oven Interior Width | 16.0' (41 cm) |
Oven Interior Depth | 19.0' (48 cm) |
Interior | |
Heat Sense | Canadian Range Conversion |
Exterior | |
RangeCord3P - Installed 3-pronged cord | RangeCord4P - Installed 4-pronged cord |
