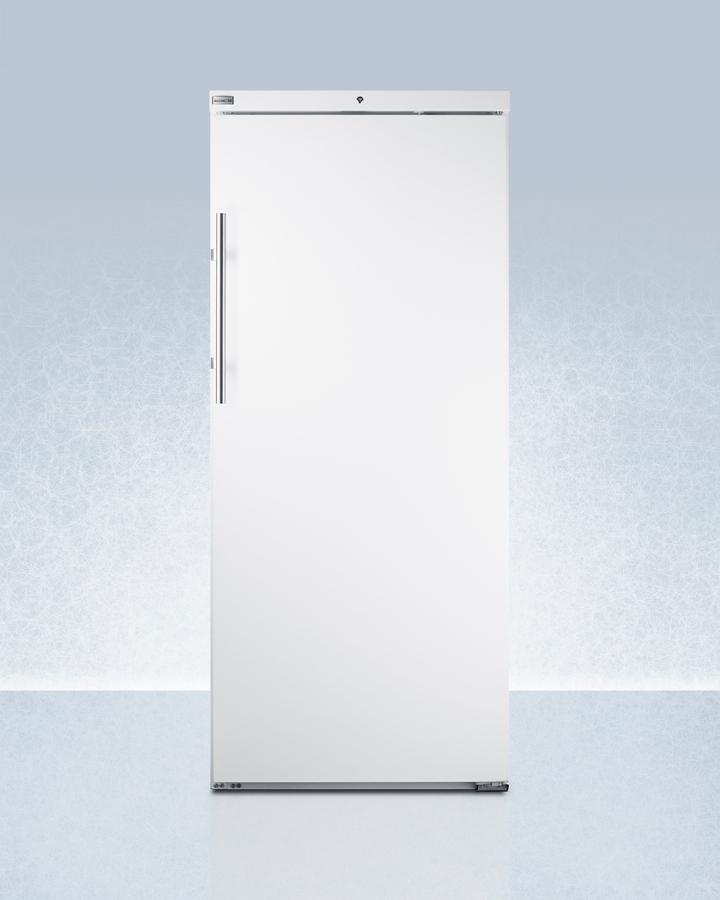

Summit UFM19W 18 Cu.Ft. Upright Manual Defrost Freezer
Accucold'S General Purpose Storage Line Includes Upright Manual Defrost Freezers Designed For The Storage Of Certain Enzymes, Reagents, Samples, And Other Materials Used In Laboratory And Clinical Settings That Require -20 C Temperatures With More Stability Than Traditional No-Frost Equipment. Model Ufm19W Is A Front-Opening Freezer With An 18.3 Cu.Ft. Interior Storage Capacity. Manual Defrost Operation Ensures A More Stable Interior With None Of The Warming Cycles That Can Compromise Temperature In Traditional Frost-Free Cooling Systems. The Dial Thermostat Is Located Inside To Prevent Accidental Temperature Adjustments. Cantilevered Shelving Provides More Flexibility In Storage, With Tight Spacing Between The Pilasters So You Can Adjust As Needed. This Unit Has A Flat Door Liner To Accommodate Deeper Trays. An Automatic Led Light Makes It Easy To See The Full Interior. This Freezer Comes In A White Exterior Finish. The Keyed Lock Is Conveniently Located Towards The Top Of The Unit For Easier User Access. The Reversible Door Includes An Easy-Grip Handle In A Brushed Aluminum Finish. This Unit Includes A 9'5" Long Power Cord With A Hospital Grade 'Green Dot' Plug For A More Secure Connection, Ideal For High Traffic Environments. The Cooling System Utilizes Hydrocarbon Refrigerant For A Greener Footprint. For Advanced Insulation, The Door Features A Vacuum Seal That Keeps All Cold Air Inside. The Ufm19W Meets Nsf-7 Commercial Standards And Is Etl Listed For The U.S. And Canada. It Can Be Customized With Additional Features To Best Meet Your Storage Needs, Including Digital Data Loggers (Ddls), Temperature Alarms, Nist Calibrated Thermometers, And More. For More Information, Contact Our Product Specialists At 718-893-3900. In Addition To This Freezer, Accucold Manufactures Frost-Free Choices For Vaccine And Laboratory Storage, As Well As Purpose-Built Refrigeration Lines Approved To The Nsf/Ansi 456 Vaccine Storage Standard.
- General purpose freezer designed for the storage of samples, enzymes, reagents, and other laboratory and clinical materials that require a more stable interior than traditional automatic defrost
- Over 18 cu.ft. of storage inside
- Static cooling system with no fans or warming cycles
- Intuitive and reliable mechanical thermostat located inside the unit to prevent unnecessary adjustments
- Preset to -20 C with a temperature range of -18 to -24 C
- Tight pilaster spacing throughout the interior allows you to adjust the shelf positions to meet your exact storage needs
- Four heavy duty shelves included
- Conveniently located towards the top of the door for easier user access (2 keys included)
- No door storage to allow for the interior to accommodate deeper trays
- User-reversible door swing for added flexibility to best accommodate your setting
- Automatic interior lighting for an efficient presentation
- Extra long power cord with hospital grade 'green dot' plug for a more secure connection
- Easy-grip handle in brushed aluminum
- Adjustable front legs allow you to ensure a straight fit, even on uneven surfaces
- Vacuum seal gasket design ensures no cold air escapes (NOTE: seal activates when door is closed, so you must allow a few minutes to pass before re-opening)
- Environmentally friendly design does not contain ozone-damaging chemicals
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Overview | |
Height of Cabinet | 70.75' (180 cm) |
Width | 30.5' (77 cm) |
Depth | 27.0' (69 cm) |
Depth with Handle | 29.75' (76 cm) |
Depth with door at 90° | 54.13' (137 cm) |
Capacity | 18.3 cu.ft. (518 L) |
Defrost Type | Manual |
Door | White |
Cabinet | White |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Amps | 2.7 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 215.0 lbs. (98 kg) |
Shipping Weight | 230.0 lbs. (104 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101077307 |
Freezer | |
Door Swing | RHD |
Reversible | Yes |
Interior Height | 64.0' (163 cm) |
Interior Width | 25.0' (64 cm) |
Interior Depth | 20.88' (53 cm) |
Shelf Type | Wire |
Shelf Qty | 4 |
Adjustable Shelves | Yes |
Thermostat Type | Dial |
Interior Light | Yes |
Refrigerant Type | R290a |
Refrigerant Amount | 3.88 oz. |
High Side PSI | 280.0 |
Low Side PSI | 145.0 |
Level Legs | 2 |
Compressor Step Height | 9.38' (24 cm) |
Compressor Step Width | 25.0' (64 cm) |
Compressor Step Depth | 7.25' (18 cm) |
Temperature Range | -18 to -24 C (Preset to -20 C) |
