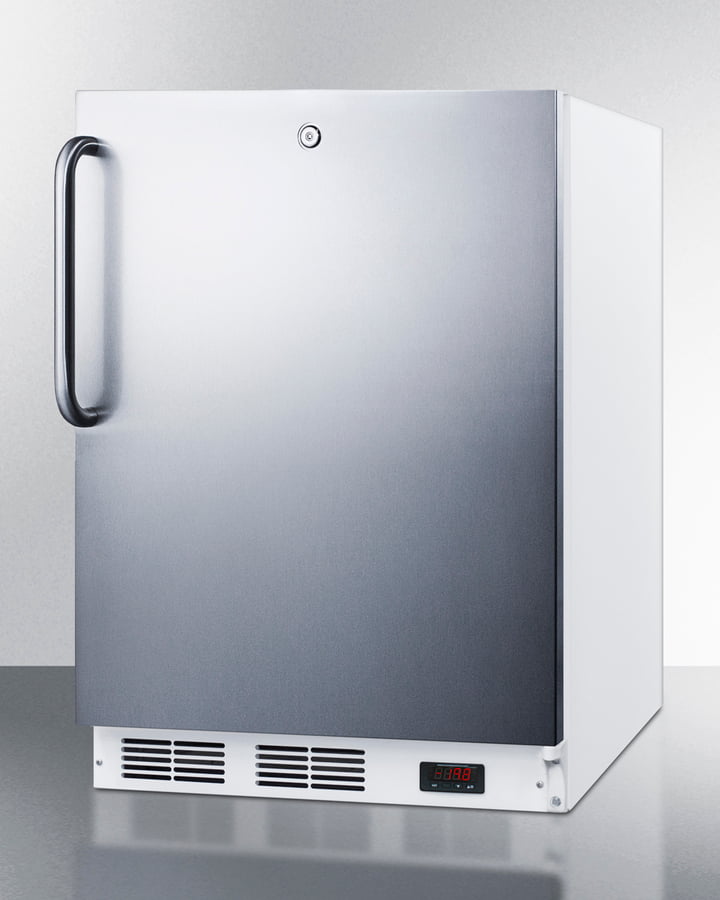

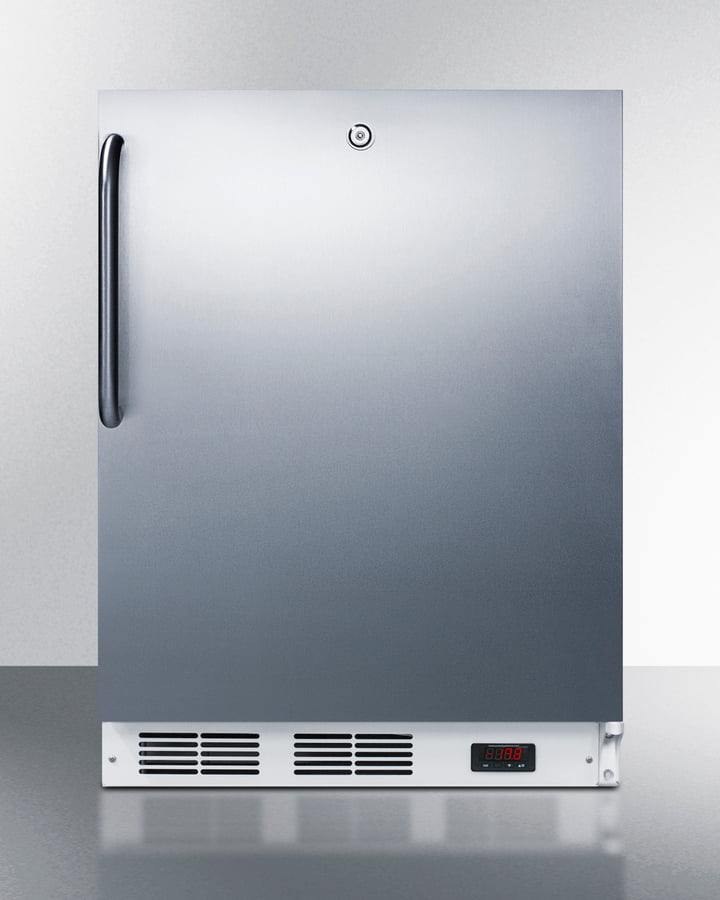

Summit VT65ML7BISSTBADA Ada Compliant Commercial Built-In Medical All-Freezer Capable Of -25 C Operation, With Wrapped Stainless Steel Door, Towel Bar Handle, And Lock
Accucold Vt65M7Biada Commercially Approved Medical All-Freezers Offer Low Temperature Storage In A Perfectly Sized Footprint Designed For Built-In Installation Under Lower Ada Compliant Counters. The 32" High Vt65Ml7Bisstbada Can Be Used Built-In Or Freestanding In Any 24" Space, With Low Temperature Manual Defrost Operation That Can Reach -25 C. The Interior Includes Three Slide-Out Basket Drawers For Convenient Storage That Keeps Items Cold When The Door Is Opened. Additional Features Include An Adjustable Thermostat And One-Piece Interior Liner For Easier Cleanup. This Medical Unit Has A White Cabinet And 304 Grade Stainless Steel Wrapped Door. A Curved Towel Bar Handle Completes The Look And A Factory Installed Lock Offers Added Security. This Unit Is Etl-S Listed To Nsf-7 Commercial Standards. Note: All Vt65M Freezers Are Designed For Medical Or Commercial Use Only. These Are Not Household Freezers.
- Commercially approved: ETL-S listed to NSF-7 Standards for use in commercial establishments
- ADA Compliant: 32 inch height is designed to fit under ADA compliant counters
- Built-in capable: Make the best use of space by installing your appliance under the counter and flush with other cabinetry
- Fully finished white cabinet: Allows the unit to be used freestanding
- Factory installed lock: Keyed lock for a secure interior
- Manual defrost: Static cooling system for improved temperature stability
- Stainless steel door: Durable design with lasting elegance
- Professional towel bar handle: A curved handle in brushed stainless steel provides generous room for a comfortable grip
- -25 capable: Low temperature operation is ideal for vaccine, pharmaceuticals, and other temperature sensitive materials

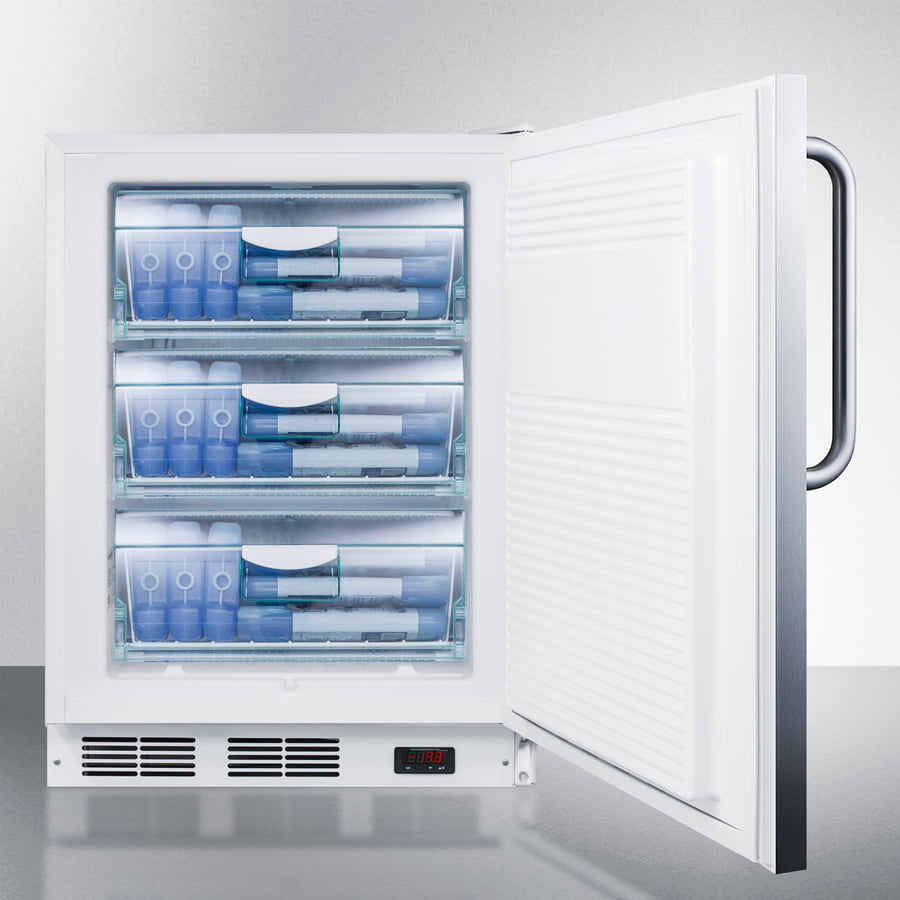

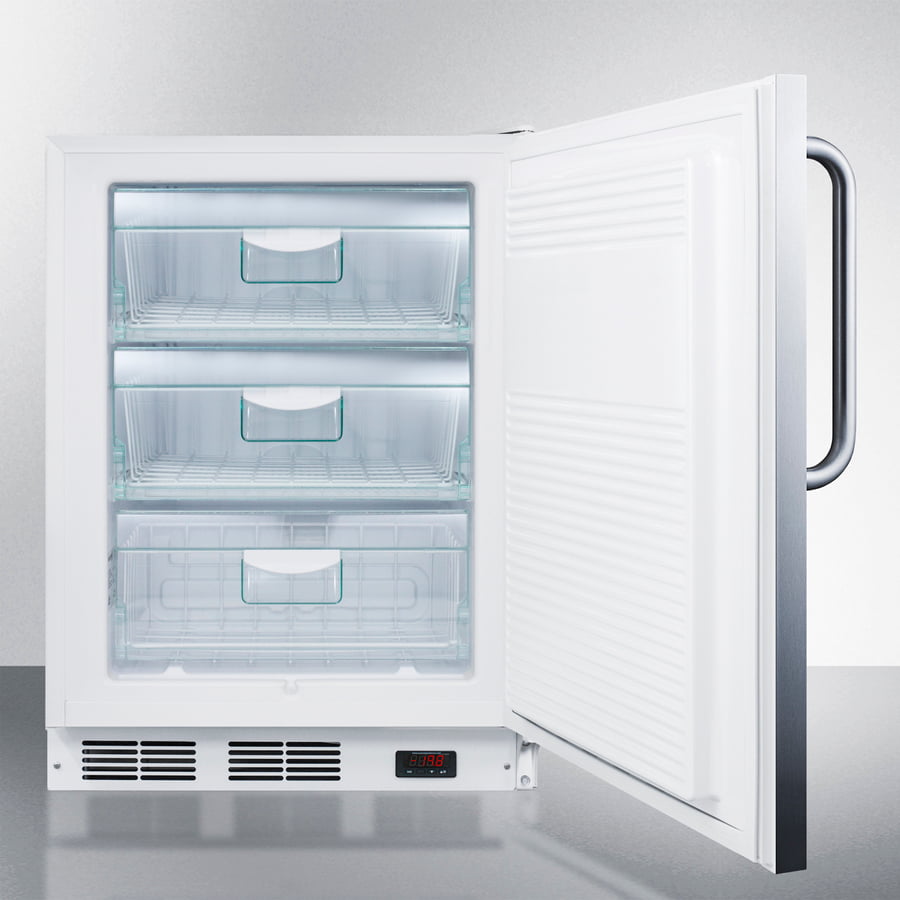

- Three slide-out drawers: Conveniently organize your items while keeping the temperature stable when the door is opened
- Digital thermostat: Electronic controls located in the front kickplate for easy and intuitive temperature management
- One piece interior liner: Simple cleanup with a seamless liner that won't hold a mess in hidden crevices
- 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
Overview | |
Height of Cabinet | 32.0' (81 cm) |
Height to Hinge Cap | 32.25' (82 cm) |
Width | 23.63' (60 cm) |
Depth | 23.5' (60 cm) |
Depth with Handle | 25.13' (64 cm) |
Depth with door at 90° | 46.0' (117 cm) |
Capacity | 3.5 cu.ft. (99 L) |
Defrost Type | Manual |
Door | Stainless Steel |
Cabinet | White |
US Electrical Safety | UL |
Canadian Electrical Safety | ULC |
Sanitation | ETL-S |
Amps | 1.3 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 105.0 lbs. (48 kg) |
Shipping Weight | 110.0 lbs. (50 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
Freezer | |
Door Swing | RHD |
Reversible | Factory Reversible |
Interior Height | 24.25' (62 cm) |
Interior Width | 17.75' (45 cm) |
Interior Depth | 16.5' (42 cm) |
Thermostat Type | Digital |
Fan Type | Exterior |
Refrigerant Type | R134a |
Refrigerant Amount | 2.7 oz. |
High Side PSI | 235.0 |
Low Side PSI | 70.0 |
Level Legs | 4 |
Interior Drawers | Yes |
Drawers Qty | 3 |
Compressor Step Height | 6.5' (17 cm) |
Compressor Step Width | 17.5' (44 cm) |
Compressor Step Depth | 5.5' (14 cm) |
Temperature Range | -12 C to -25 C |
Door | |
STO-Step-To-Open Door Pedal Step-to-open door pedal allows hands | free access to open the door 90 degrees |
Handle | |
TBC Copper Towel Bar Handle Upgrade Change this handle to a 12' vertically mounted towel bar style handle made from pure copper for antimicrobial protection | TBC Copper Towel Bar Handle Upgrade Change this handle to a 12' vertically mounted towel bar style handle made from pure copper for antimicrobial protection |
Exterior | |
Agion Door Treat the door with Agion silver antimicrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface | DL1 - Factory installed data logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac |
HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix | SSK Stainless steel kickplate factory installed |
Latch for door Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles. | LHD - Left hand door swing Door reversal to left hand swing |
SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option | SS Hinges Stainless steel top and bottom hinges |
Extra key Extra keys available for purchase | Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations |
PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices | TT - Installed thermometer ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order |
ODA - Open door alarm Add an open door alarm to audibly buzz when the door is left ajar. | DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout |
Lock | |
AC Keypad Keypad door lock powered by appliance power cord for keyless security | KEYPAD Battery-powered keypad door lock installed for keyless security |
