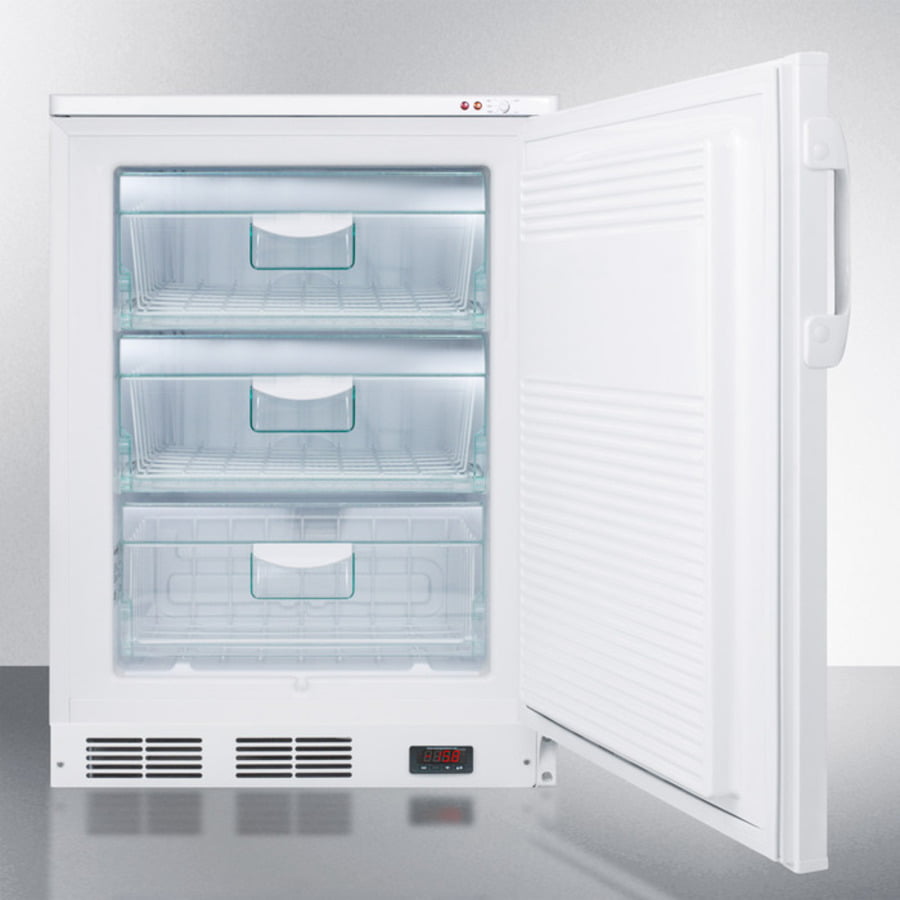

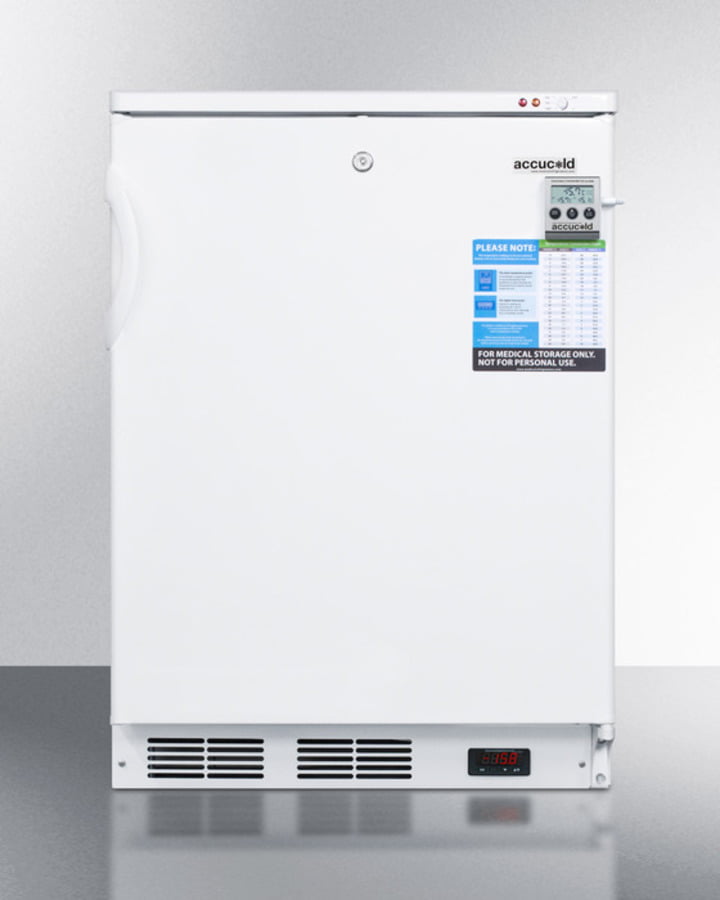

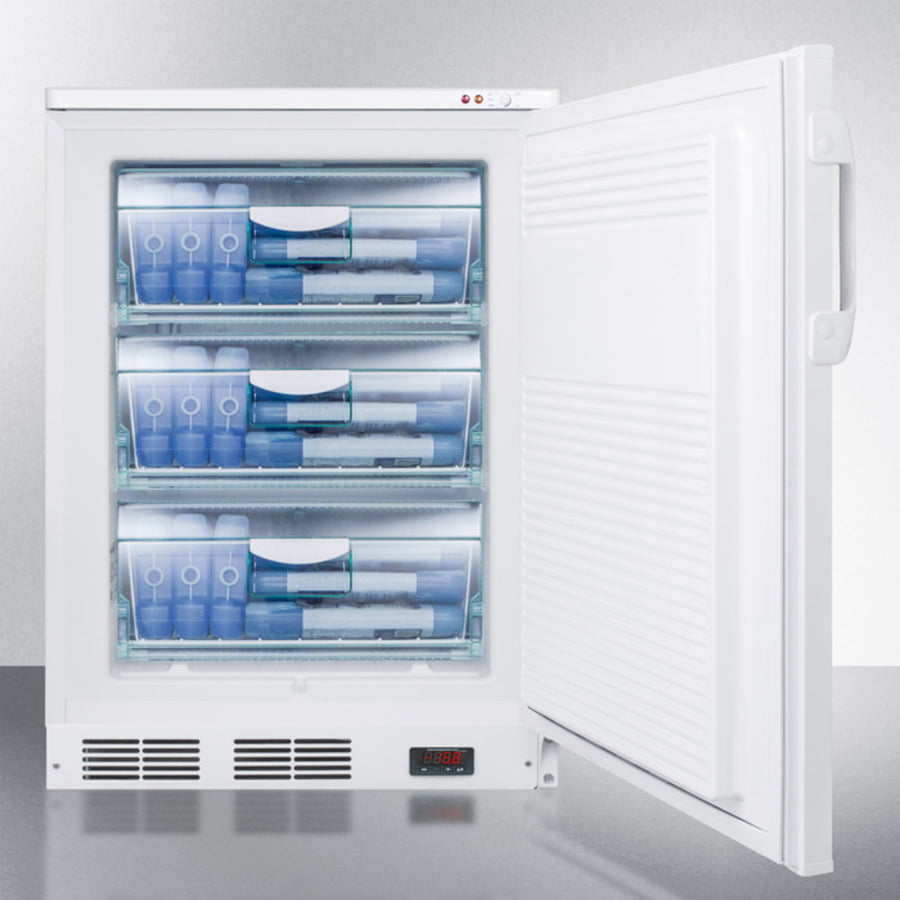

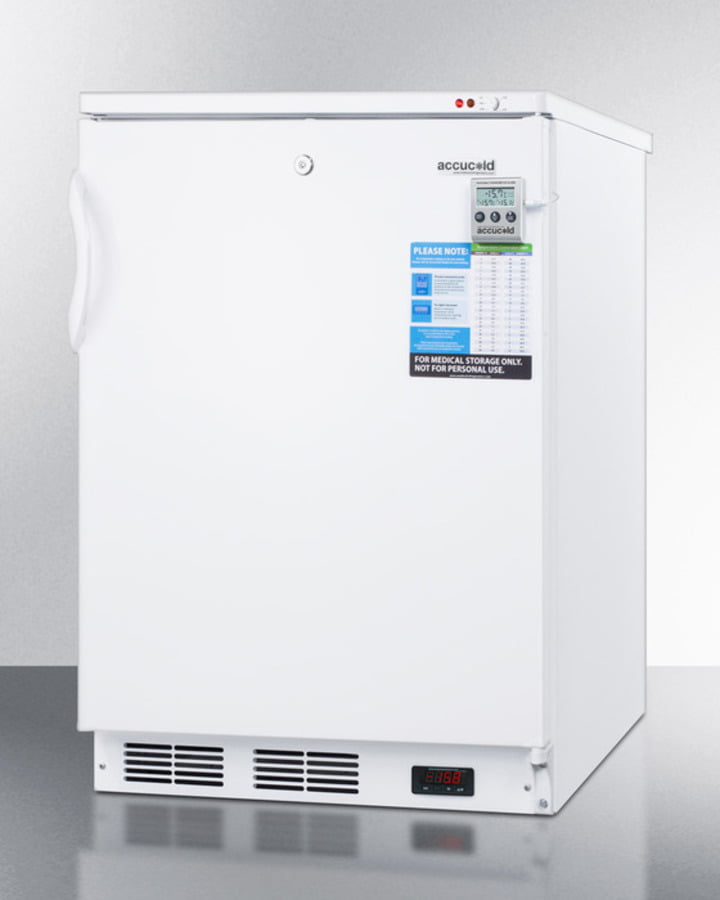

Summit VT65MLBIVAC Built-In Undercounter Vaccine Storage All-Freezer With Digital Thermostat, Temperature Alarm, Hospital Grade Cord, Self-Closing Door, And Front Lock
The Accucold® Vac Series Freezers Are Specially Designed To Store Sensitive Medical And Pharmaceutical Materials Under The Proper Conditions, With Innovative Construction For Temperature Stability And User-Friendly Features For Added Convenience. Made In Europe, The Vt65Mlbivac Is A Front-Breathing All-Freezer Designed For Built-In Installation Under Counters, With A Fully Finished Cabinet That Also Allows Freestanding Use. The 3.2 Cu.Ft. Interior Offers Static Cooling For Stable Results. Four Slide-Out Storage Baskets With Clear Plastic Fronts Ensure That Stored Items Are Not Exposed Unnecessarily To Room Temperature. This Unit Has A Flat Door Liner As Recommended By The Cdc. For Optimum Temperature Assurance, The Vt65Mlbivac Includes A Digital Thermostat And A High/Low Temperature Alarm With A Nist Calibrated Temperature Display To The Nearest Tenth Of A Degree. A Hospital Grade Cord Includes A 'Green Dot' Plug For Added Safety In High Traffic Settings, While The Self-Closing Door Ensures Stored Items Aren'T Accidentally Exposed To Room Temperature. This Model Comes In A White Finish And Includes A Factory Installed Lock. An Access Port With A Contact Is Pre-Installed, Allowing Users To Install Additional Monitoring Equipment. Customers Can Specify The Access Port Location Upon Order. The Vt65Mlbivac Can Be Paired With The Ff7Lbivac All-Refrigerator For A Matching Set. For This Unit In A 32" Ada Compliant Height, See The Vt65Mlbivacada. All Models Can Be Ordered With More Advanced Medical Features, Including A Power-Out Alarm, Temperature Logger, And More.
- Slim undercounter dimensions: 24" footprint is ideal for use under the counter
- Built-in capable: Front-breathing design allows built-in installation under counters
- -25 C/-13 F capable: Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials
- Digital thermostat: Electronic controls for more precise temperature management, with temperature readout and controls externally located for added convenience
- High/low temperature alarm: Audible alarm sounds if the interior temperature rises or falls out of set range
- NIST calibrated temperature display: Alarm includes NIST calibrated display of the current interior and high/low temperature to the nearest tenth of a degree
- Self-closing door: Door closes automatically when opened at angles less than 90
- Access port with contact: Pre-installed probe with contact allows users to install their own monitoring equipment; customers can specify placement of the access port upon order
- Hospital grade cord and plug: Secure three-pronged cord for added unit safety
- Factory installed lock: Keyed lock offers added security
- Manual defrost: Static cooling system for reduced temperature fluctuations
- Three slide-out drawers: Slide-out wire baskets with plastic fronts offer convenient storage solutions while protecting stored items when the door is open
- Flat door liner: Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
- Fully finished white cabinet: Allows the unit to be used freestanding
- Height Adjustable: Adjustable legs allow the unit to be sized from 33 1/2" to 34 3/4" high
- Factory reversible door: Standard unit ships RHD but can be ordered LHD
- 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
Overview | |
Height of Cabinet | 33.5' (85 cm) |
Width | 23.63' (60 cm) |
Depth | 23.63' (60 cm) |
Depth with Handle | 25.13' (64 cm) |
Depth with door at 90° | 46.13' (117 cm) |
Capacity | 3.2 cu.ft. (91 L) |
Defrost Type | Manual |
Door | White |
Cabinet | White |
US Electrical Safety | UL |
Canadian Electrical Safety | ULC |
Amps | 1.3 |
Weight | 105.0 lbs. (48 kg) |
Shipping Weight | 110.0 lbs. (50 kg) |
Parts & Labor Warranty | 2 Years |
Compressor Warranty | 5 Years |
Freezer | |
Door Swing | RHD |
Reversible | Factory Reversible |
Height Adjustable | 1 |
Interior Height | 24.25' (62 cm) |
Interior Width | 17.75' (45 cm) |
Interior Depth | 16.5' (42 cm) |
Thermostat Type | Digital |
Fan Type | Exterior |
Refrigerant Type | R134a |
Refrigerant Amount | 2.7 oz. |
High Side PSI | 235.0 |
Low Side PSI | 70.0 |
Level Legs | 4 |
Interior Drawers | Yes |
Drawers Qty | 3 |
Compressor Step Height | 6.0' (15 cm) |
Compressor Step Width | 17.75' (45 cm) |
Compressor Step Depth | 6.0' (15 cm) |
Temperature Range | -12 C to -25 C |
Door | |
STO-Step-To-Open Door Pedal Step-to-open door pedal allows hands | free access to open the door 90 degrees |
Handle | |
CP Full-Length Copper Pipe Handle Factory-installed full-length handle made from pure copper for antimicrobial protection | TBC Copper Towel Bar Handle Factory-installed handle made from pure copper for antimicrobial protection |
Exterior | |
DL1 - Factory installed data logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac | SSK Stainless steel kickplate factory installed |
Latch for door Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles. | LHD - Left hand door swing Door reversal to left hand swing |
ODA - Open door alarm Add an open door alarm to audibly buzz when the door is left ajar. | Extra key Extra keys available for purchase |
CAS3 3' casters 3' high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish | CAS6 6' casters 6' high NSF listed casters |
Legs to raise unit height 6' high leveling legs | DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout |
Lock | |
KEYPAD Battery-powered keypad door lock installed for keyless security | AC Keypad Keypad door lock powered by appliance power cord for keyless security |
