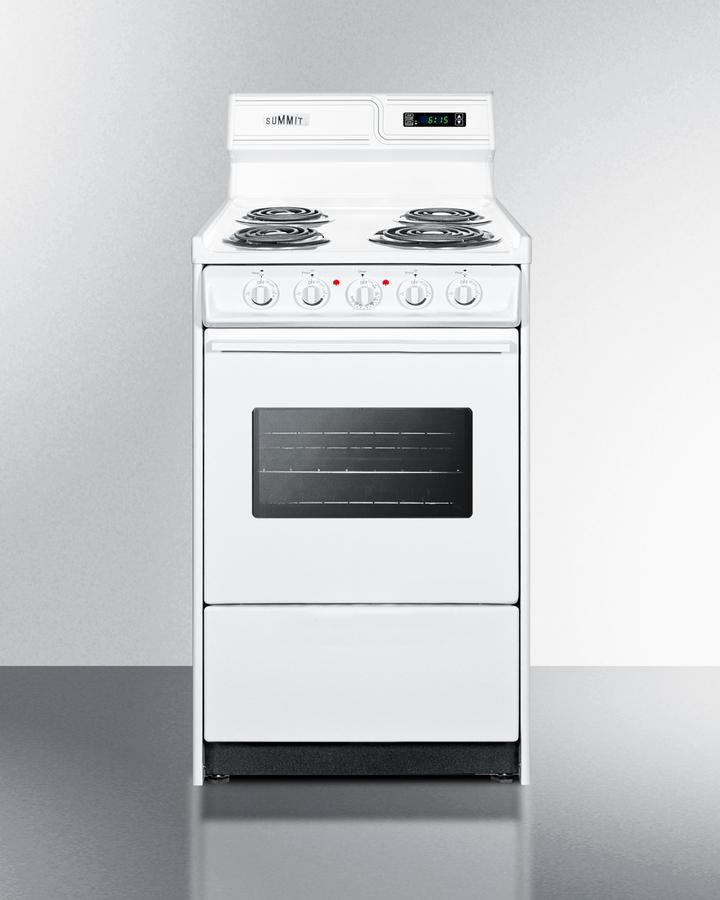

Summit WEM130KW 20" Wide Electric Coil Top Range
Key features
Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens.
The WEM130KW is an apartment-sized 220V electric range sized at just 20" wide, with a generous 2.46 cu.ft oven interior that can accommodate large trays.
The oven features a door window and interior light with an on/off switch to make it easy to monitor your cooking without opening the door.
Two adjustable oven racks are included.
The waist-high broiler is located inside the oven, allowing you to switch functions without moving contents to a separate compartment on the floor.
The lower drop-down storage compartment is ideal for keeping pots and pans out of the way in small kitchens.
Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements.
These operate at lower wattage than standard electric ranges, allowing for a slow but steady heating process that will not cycle off.
Upfront push-to-turn knobs offer additional protection, ensuring users won't reach over hot burners to adjust the heat.
This unit complies with ADA guidelines.
The WEM130KW comes in a classic white finish to suit any kitchen.
It has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts.
Porcelain and steel construction help the unit hold up to years of daily use.
We include an anti-tip bracket for added safety.
This unit does not include a line cord (a standard 40 amp 3 or 4-prong cord can be installed by your electrician).
With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes.
Additional choices are available in 24", 30", and 36" wide fits. Dimensions & Capacity Width: 20"
Height: 44"
Depth: 24"
First Oven Size: 2.46 cu. ft.
The WEM130KW is an apartment-sized 220V electric range sized at just 20" wide, with a generous 2.46 cu.ft oven interior that can accommodate large trays.
The oven features a door window and interior light with an on/off switch to make it easy to monitor your cooking without opening the door.
Two adjustable oven racks are included.
The waist-high broiler is located inside the oven, allowing you to switch functions without moving contents to a separate compartment on the floor.
The lower drop-down storage compartment is ideal for keeping pots and pans out of the way in small kitchens.
Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements.
These operate at lower wattage than standard electric ranges, allowing for a slow but steady heating process that will not cycle off.
Upfront push-to-turn knobs offer additional protection, ensuring users won't reach over hot burners to adjust the heat.
This unit complies with ADA guidelines.
The WEM130KW comes in a classic white finish to suit any kitchen.
It has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts.
Porcelain and steel construction help the unit hold up to years of daily use.
We include an anti-tip bracket for added safety.
This unit does not include a line cord (a standard 40 amp 3 or 4-prong cord can be installed by your electrician).
With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes.
Additional choices are available in 24", 30", and 36" wide fits. Dimensions & Capacity Width: 20"
Height: 44"
Depth: 24"
First Oven Size: 2.46 cu. ft.
- Designed and constructed domestically
- Shallower fit is ideal for L-shaped and galley kitchens
- Apartment-sized width offers all the functionality you need in a smaller fit
- Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen
- Three standard 6" and one large 8" element
- Designed to comply with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off
- Each coil element includes a removable chrome pan for easier cleaning
- Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door
- Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
- Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor
- 8" high backguard helps to protect your walls from spills and splashes
- Backguard includes clock and timer for added convenience
- Solid construction built to hold up to everyday use
- Smart design limits the depth and protects adjacent cabinets
- All knobs are located in the front of the range, letting you adjust your heating without reaching over hot burners
- Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn
- Control panel includes an 'on' light for the oven and burners for added safety when using the range
- Allows for easier cleaning as needed
- Two-piece porcelain broiler tray with grease well
- Included for user installation to help prevent tipping
- Compatible with standard 40 amp 3 or 4-prong range cords
Overview | |
Height of Cabinet | 44.0' (112 cm) |
Width | 20.0' (51 cm) |
Depth | 24.0' (61 cm) |
Door | White |
Cabinet | White |
US Electrical Safety | CSA |
Canadian Electrical Safety | CSA-C |
Voltage/Frequency | 220 V AC/60 Hz |
Weight | 145.0 lbs. (66 kg) |
Shipping Weight | 145.0 lbs. (66 kg) |
Parts & Labor Warranty | 1 Year |
UPC | 761101054100 |
Electric Range | |
Oven Capacity | 2.46 cu.ft. (70 L) |
Cooktop Surface | Porcelain |
Element Type | Coils |
Number of Elements | 4 |
Element #1 Size | 6.0' (15 cm) |
Element #1 Wattage | 675.0 |
Element #2 Size | 6.0' (15 cm) |
Element #2 Wattage | 675.0 |
Element #3 Size | 6.0' (15 cm) |
Element #3 Wattage | 675.0 |
Element #4 Size | 8.0' (20 cm) |
Element #4 Wattage | 950.0 |
Burner Controls | Dial |
Oven Controls | Dial |
Oven Light | Yes |
Cooking Timer | Yes |
Backguard | Yes |
Backguard Display | Yes |
Oven Window | Yes |
Oven Interior Height | 14.0' (36 cm) |
Oven Interior Width | 16.0' (41 cm) |
Oven Interior Depth | 19.0' (48 cm) |
Storage Compartment | Yes |
Broiler Location | Inside Oven |
Oven Door | White |
