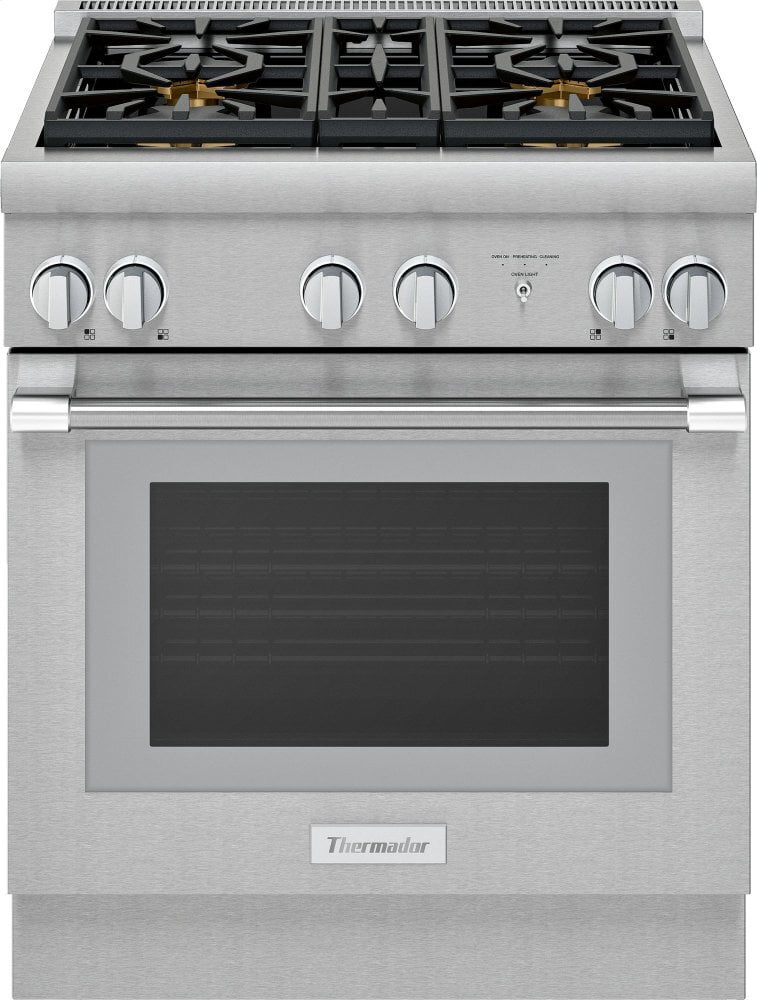

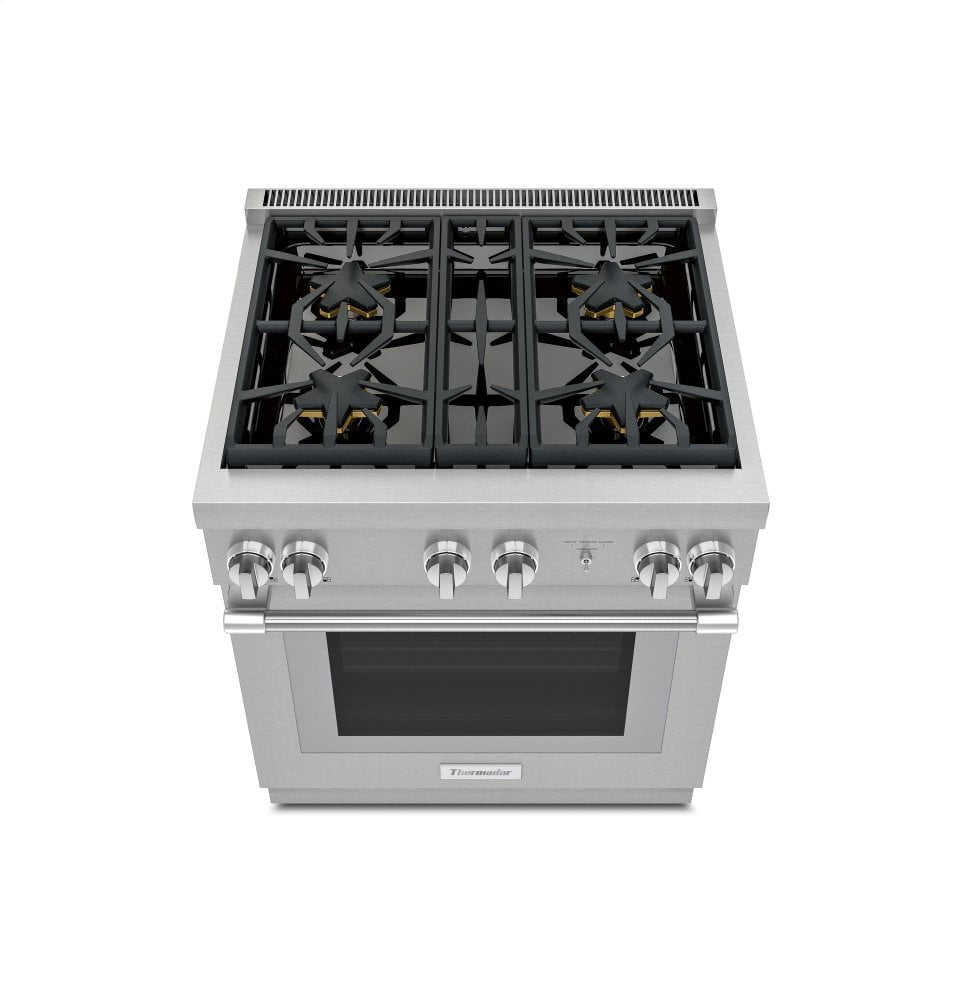

Thermador PRD304WHU 30-Inch Pro Harmony® Standard Depth Dual Fuel Range
Rebates &
Promotions
Thermador One Two Free Sales Event - Enjoy exclusive savings with purchase of qualifying Thermador appliances. Download Valid: 01/01/2025-12/31/2025
Our Pro Harmony Range, Truly Flush Mounted™ With Four Star® Burners, Two With Extralow®, In A Convenient 30-Inch Footprint
- The perfect blend of professional grade cooking with a New Contemporary Design that will fit seamlessly into any Kitchen style
- The ExtraLow(R) feature provides the widest simmer temperature control
- Truly Flush Mounted(TM), 24" standard cabinet depth
- ExtraLow(R), the widest simmer temperature control as low as 100(degree)F
- QuickClean Base(R) designed for easy surface cleaning
Technical Specification details | |
Brand | Thermador |
SKU | PRD304WHU |
UPC code | 825225925231 |
Construction type | |
Installation type | Free-standing |
Energy source | Mixed |
Installation Type | Freestanding appliance |
Size and weight | |

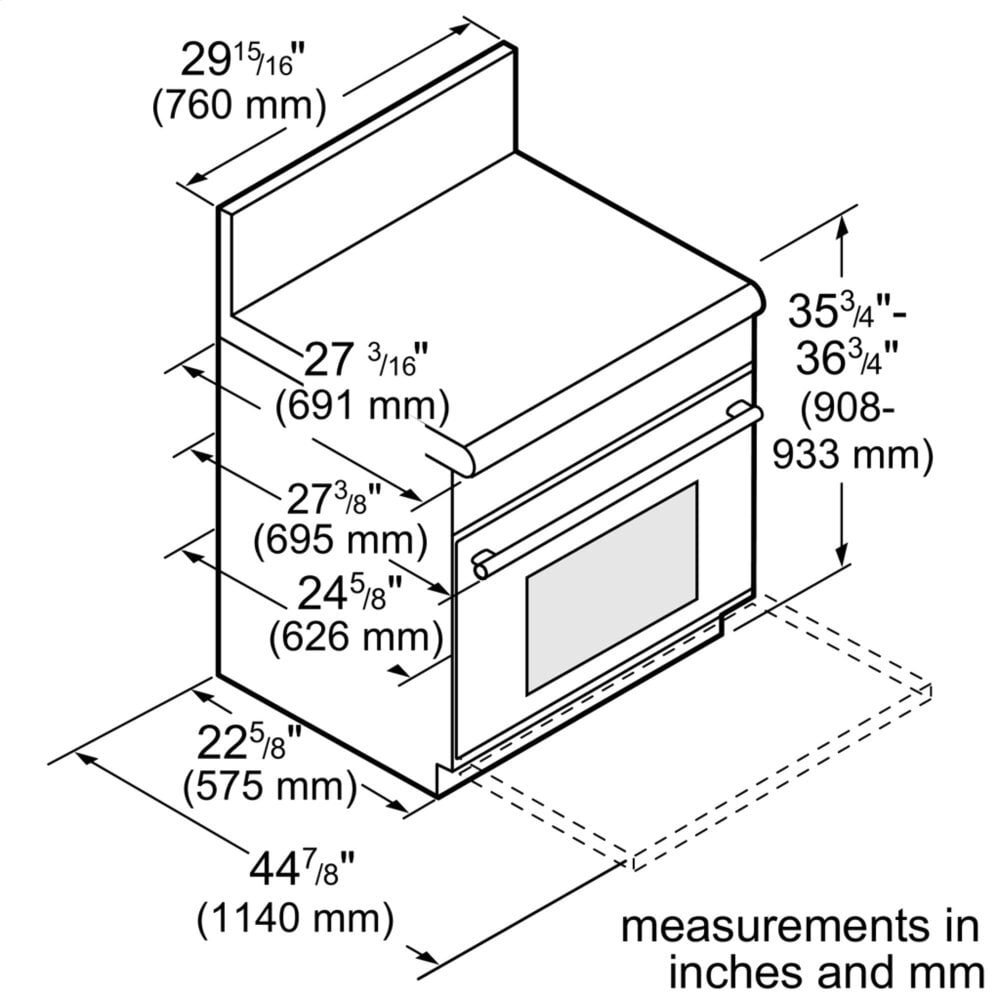

Overall appliance dimensions (HxWxD) (in) | 35 7/8'' x 29 15/16'' x 24 5/8'' |
Size | 30 Inch |

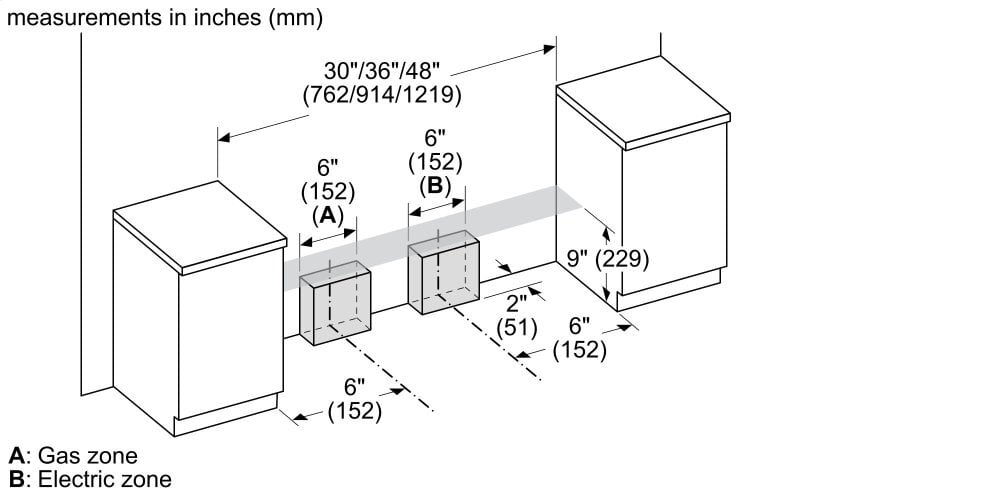

Required cutout size (HxWxD) (in) | 30'' width slide-in |
Net weight (lbs) | 368.000 |
Cavity capacity (cu ft) | 4.4 |
Cavity dimensions (in) | 16 1/4'' x 25'' x 18 5/8'' |
Oven | |
Cooking mode | 3rd element convection, Centre-area grill/broiler, Convection Bake, Convection Broil, Conventional heat, Roasting function, Selfcleaning pyrolitic, Special baking setting |
Comfort | |
Optional accessories - primary cavity | PA12CHPBLK, PA30WLBH, PAALTKITHW, PAGRIDDLE, PAKNOBLUWH, PALPKITHW, PARKB30HY, PWOKRINGHC |
Connection | |
Current (A) | 30 |
Watts (W) | 6,400 |
Plug type | no plug |
Volts (V) | 240/208 |
