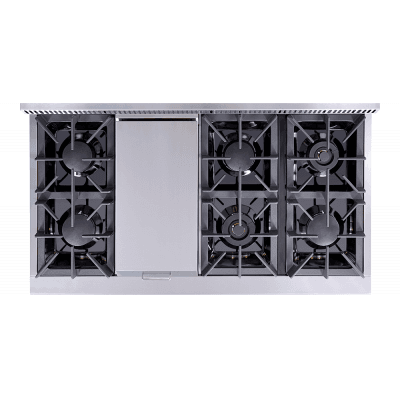

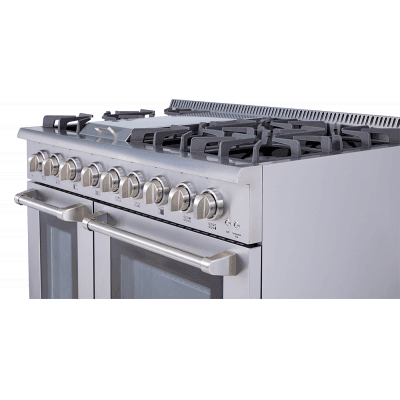

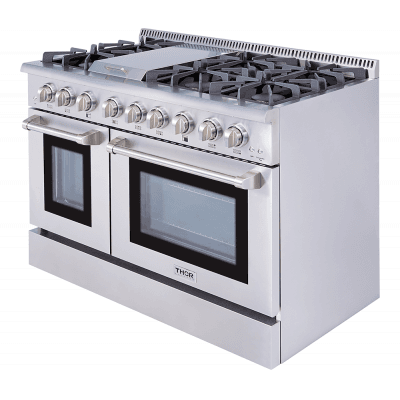

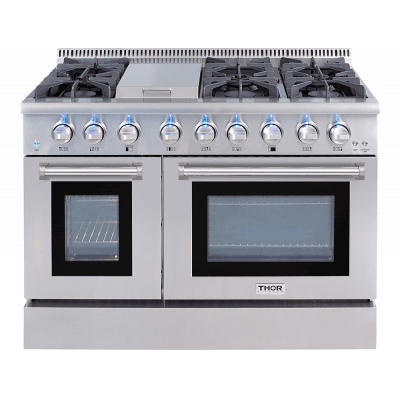

Thor Kitchen HRD4803U 48 Inch Professional Dual Fuel Range In Stainless Steel
Introducing The Thor Kitchen Hrd4803U - A 48 Inch Dual Fuel Range Featuring 6.7 Cu. Ft. Capacity, Convection Oven, And Infrared Griddle In Stainless Steel.
- Front left sealed single burner- 18,000 BTU
- Front center sealed dual burner- 15,000 BTU with extra low simmer function 650 BTU
- Front right sealed single burner- 18,000 BTU
- Rear left sealed single burner- 12,000 BTU
- Rear center sealed single burner- 12,000 BTU
- Rear right sealed dual burner- 15,000 BTU with extra low simmer function 650 BTU
- Stainless steel griddle- 15,000 BTU
- Oven capacity- 4.2 cu. ft.
- Bake power- 850W (top), 3,000W (bottom)
- Broil power- 3,500W
- Oven capacity- 2.5 cu. ft.
- Bake power- 2,500W
Product dimensions (W x H x D) 47 78' x 35 1/2' x 26' |
Required cutout size (W x H x D) 48 1/8' x 35 1/2' - 36 1/2' x 24' - 25' |
Product net weight (lbs)- 416 lbs. |
Fuel type- Natural gas/LP (see accessory) |
Electrical requirements- 240V, 4 prong 14-50R power outlet |
Circuit breaker (A)- 40 A |
Frequency (Hz)- 60 Hz |
