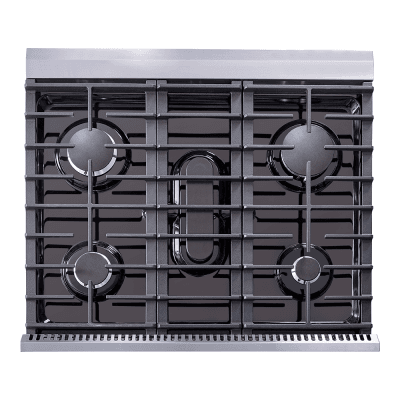

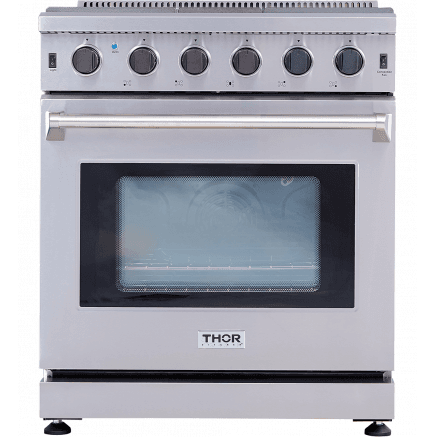

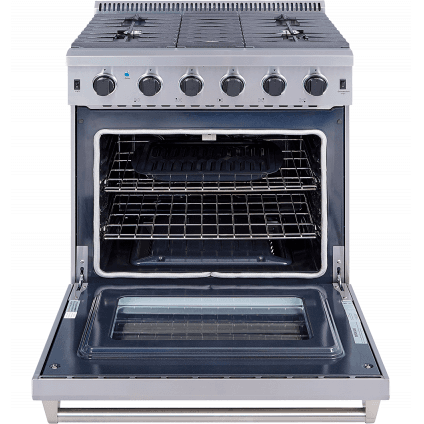

Thor Kitchen LRG3001U Thor Kitchen - 30 Inch Professional Gas Range In Stainless Steel
Introducing The Thor Kitchen Lrg3001U - A 30 Inch Professional Gas Range Featuring Commercial Convection Fan, 4.5 Cu.Ft Oven Capacity, And A Stainless Steel Finish.
- Black Porcelain Drip Pan for Easy Surface Cleaning
- Heavy Duty Continuous Cast Iron Cooking Grates
- Black ABS Knobs
- 4.5 cu.ft Oven Capacity
- White Flakes with Gray Background Porcelain Oven Interior
- 1 x Halogen Lights
- Commercial Convection Fan
- Three Layers Glass Window
- Storage Drawer at Bottom
Total Number of Range Top Burners | 5 Burners |
Front Right (Single) | 8,000 BTU |
Front Left (Single) Middle (Oval) | 18,000 BTU 9,000 BTU |
Rear Right (Single) | 6,000 BTU |
Rear Left (Single) Broil burner | 4,000 BTU 10,000 BTU |
Fuel Type | Natural Gas / LP Convertible |
Electrical Requirements | 120V |
Circuit Breaker (A) | 15 or 20 A |
Frequency (Hz) | 60 Hz |
Total Number of Range Top Burners | 5 Burners |
Front Right (Single) | 8,000 BTU |
Front Left (Single) Middle (Oval) | 18,000 BTU 9,000 BTU |
Rear Right (Single) | 6,000 BTU |
Rear Left (Single) Broil burner | 4,000 BTU 10,000 BTU |
Product Dimension | |
Product Width | 29.875' |
Product Height (from bottom to top of back splash) | 36.7' |
Product Height (from bottom to top of side panel) | 33.9' |
Product Depth (from back panel to bull nose include gasket) | 28.3' |
Product Depth (from back panel to control board include gasket) | 27.1' |
Product Depth (from back panel to side panel front include gasket) | 24.8' |
Depth of Control Panel (minimum) | 2.3' |
Depth of Control Panel (bullnose) | 3.5' |
Cast Iron Cooking Grate (W x L) | 21.2*11.8' |
Adjustable Legs | Recommend not to exceed 1' |
Power Plug Length | 56 1/4' |
Required Cutout Size (W x D x H) (in) | 30.3' x 27.4' x 36.7' |
