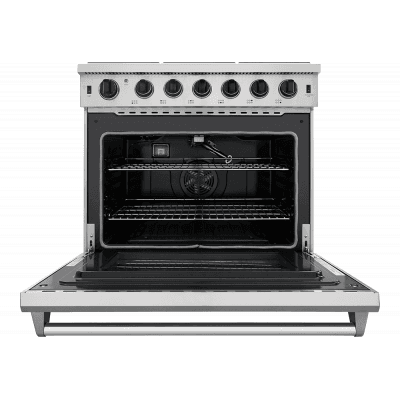

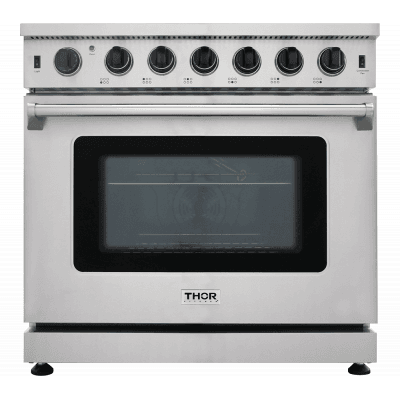

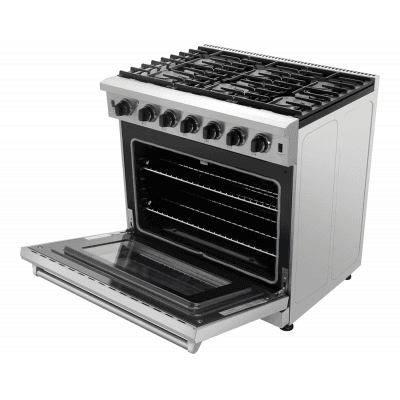

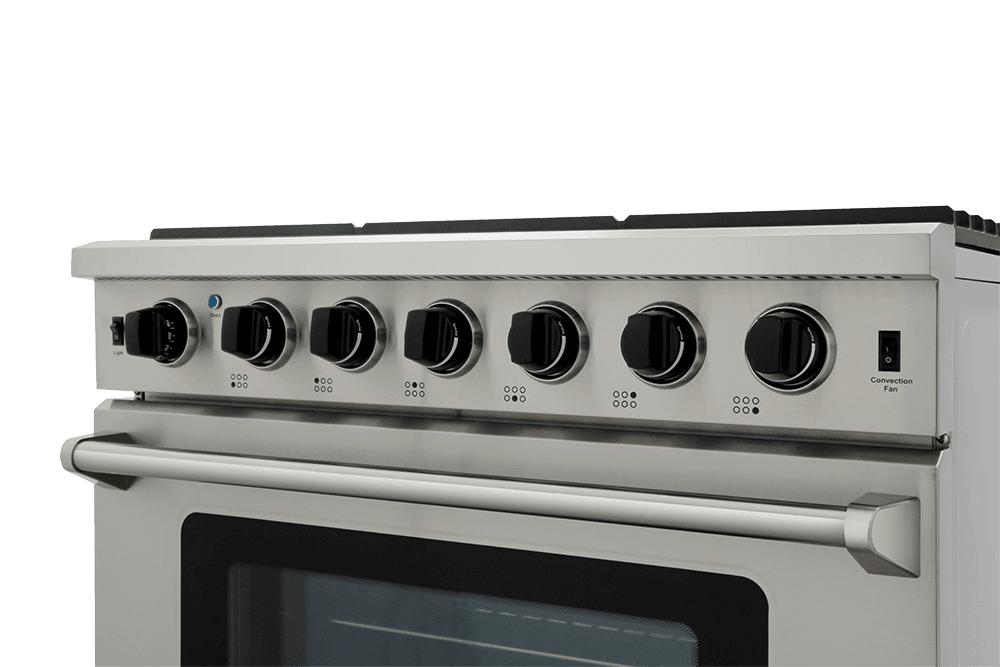

Thor Kitchen LRG3601U Thor Kitchen - 36 Inch Professional Gas Range In Stainless Steel
Introducing The Thor Kitchen Lrg3601U - A 36 Inch Professional Gas Range Featuring 6.0 Cu. Ft Oven Capacity, Commercial Convection Fan, And Stainless Steel Finish.
- Black Porcelain Drip Pan for easy surface cleaning

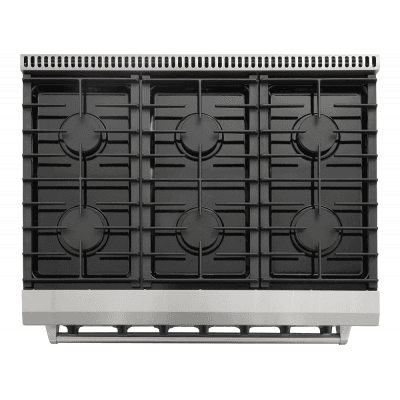

- Heavy Duty Continuous Cast Iron Cooking Grates
- Black ABS Knobs
- 6.0 cu.ft Oven Capacity
- White Flakes with Gray Background Porcelain Oven Interior
- 1 x Halogen Lights
- Commercial Convection Fan
- Three layers glass window
- Storage drawer at bottom
Total Number of Range Top Burners | 6 Burners |
Front Right (Single) | 18,000 BTU |
Front Left (Single) Front Middle (Single) | 18,000 BTU 12,000 BTU |
Rear Right (Single) | 9,000 BTU |
Rear Left (Single) Rear Middle (Single) | 9,000 BTU 12,000 BTU |
Total Number of Range Top Burners | 6 Burners |
Front Right (Single) | 18,000 BTU |
Front Left (Single) Front Middle (Single) | 18,000 BTU 12,000 BTU |
Rear Right (Single) | 9,000 BTU |
Rear Left (Single) Rear Middle (Single) | 9,000 BTU 12,000 BTU |
Fuel Type | Natural Gas / LP Convertible |
Electrical Requirements | 120V |
Circuit Breaker (A) | 15 or 20 A |
Frequency (Hz) | 60 Hz |
Product Dimension | |
Product width | 36 in |
Product height (from bottom to top of island trim) | 36 7/8 in |
Product height (from bottom to top of drip pan) | 35 1/2 in |
Product height (from bottom to top of bullnose) | 36 1/8 in |
Product depth (without door) | 24 in |
Product Depth (include door) | 26 7/16 in |
Product depth (include control board) | 26 5/16 in |
Product depth (include bullnose) | 27 1/2 in |
Product Depth (include door handle) | 29 1/2 in |
Product depth (fully open door) | 48 1/8 in |
Oven Interior Dimension | 28 3/4W x 17 1/4D x 17 H in |
Oven door window | 28 in |
Adjustable legs | Recommend not to exceed 1' |
Power plug length | |
Required Cutout Size (W x D x H) (in) | 36 1/4W x 24 1/2 D x 35 1/2 H |
LRG3601U Detailed Specification and Product Dimensions
