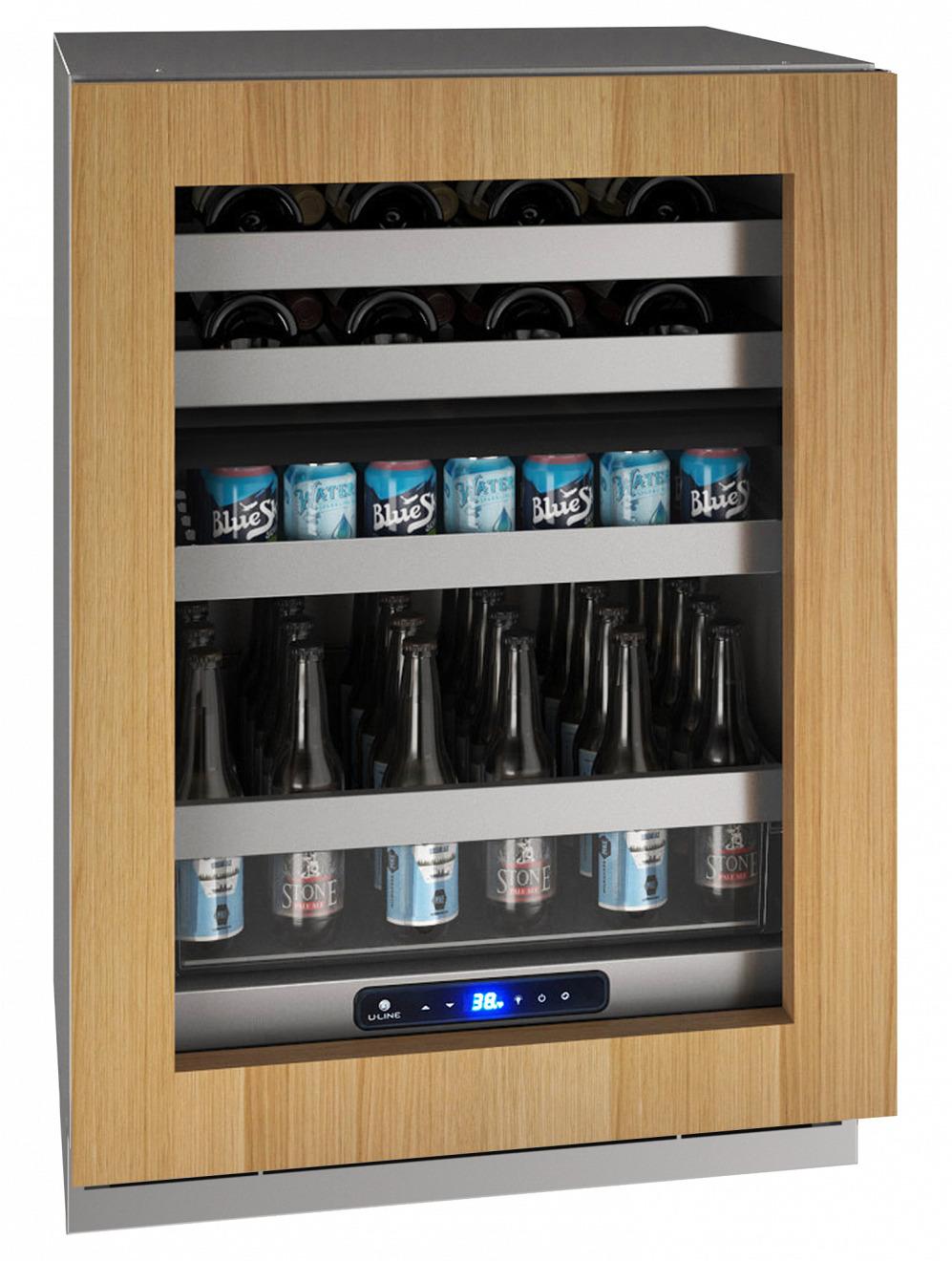

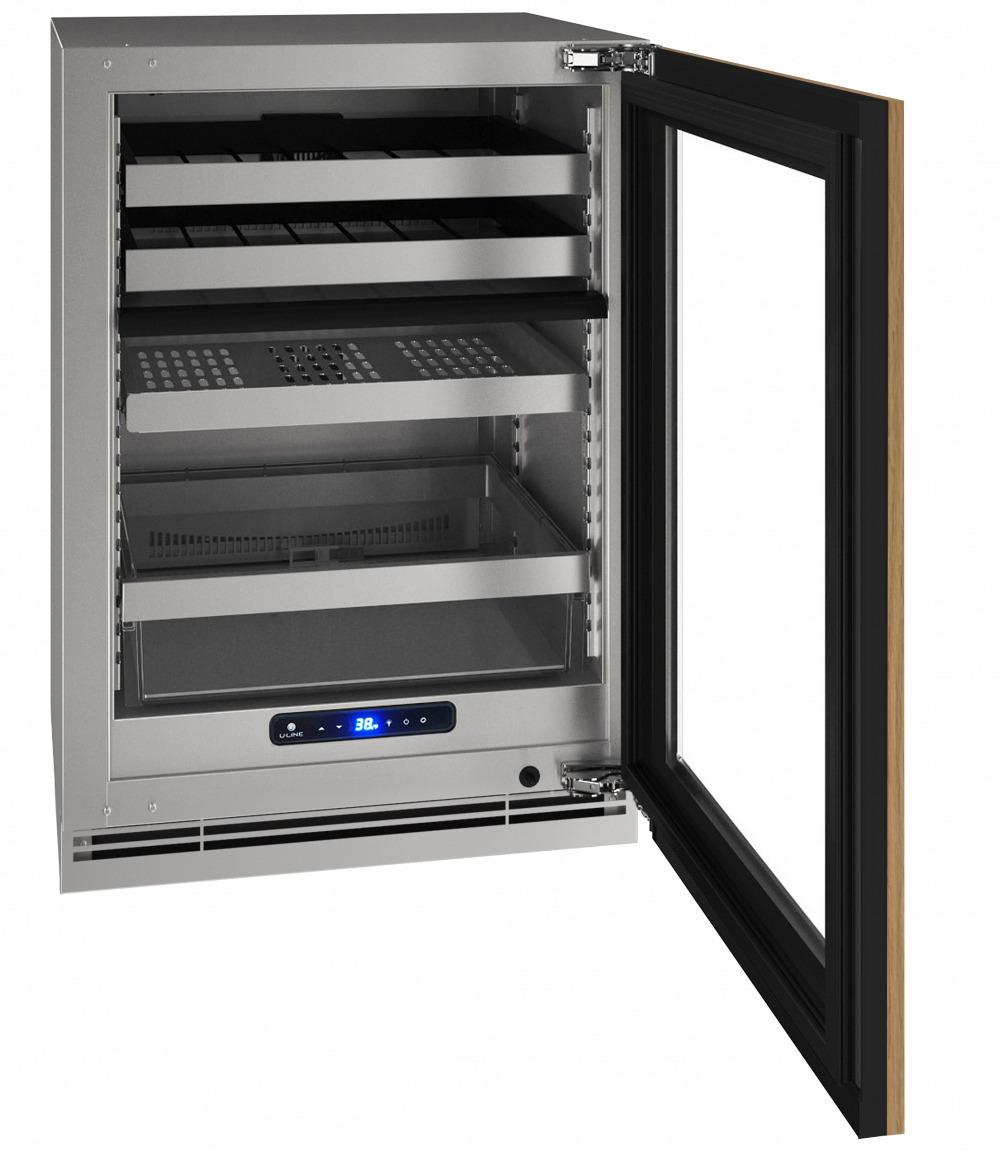

U-Line UHBD524IG01A Hbd524 24" Dual-Zone Beverage Center With Integrated Frame Finish And Field Reversible Door Swing (115 V/60 Hz Volts /60 Hz Hz)
A Favorite Of Cocktail Enthusiasts, Wine Lovers, And Beer Drinkers Alike, Our 24" 5 Class Dual-Zone Beverage Center Is The Ultimate Home Bar Companion. This Product Features Stainless Steel Inside And Out, Convection Cooling For Quick And Consistent Temperatures, And A State-Of-The-Art Variable Speed Compressor. Robust And Refined, U-Line'S 5 Class Collection Features An Industry-Exclusive Full-Depth Lower Interior Allowing You To Maximize Storage Space, Adjustable Blue And White Led Lighting, And U-Adjust™ 17 Position Adjustment For Full Extension Wine Racks, Slide & Secure™ Bins, And Stainless Steel Sliding Shelf. To Contain And Protect. This Model Can Be Built-In Or Used Freestanding And Is Available With Stainless Steel Or Integrated Door Finishes That Accept A Custom Door Panel To Match Your Surrounding Cabinetry. This Product Is Wi-Fi Compatible. Access Product Controls And Settings And Receive Notifications To Monitor Activity Through The U-Line U-Connect™ App.
- Industry Exclusive: Full-depth lower interior maximizes storage options
- Wi-Fi compatible with the U-Connect™ App
- Industry Leading: Variable speed compressor delivers maximum energy efficiency, faster temperature response, and quieter operation
- Convection cooling system provides a quick cool down and consistent temperature
- Stainless steel interior
- Stainless steel cabinet, grille, and accents
- U-Adjust™ Interior: 17 adjustable positions
- One removable full-extension Slide & Secure™ Bin
- One removable full-extension stainless steel shelf
- Two removable full-extension wine racks
- Digital touch pad control
- Use of U-Line U-Connect™ App is included during the two-year parts and labor warranty period
- Independently controlled dual-zones
- Temperature range: (upper compartment) 38(degree)F - 65(degree)F; (lower compartment) 33(degree)F - 45(degree)F (The upper temperature must be the lower temperature, maximum 20(degree) higher)
- Adjustable bright white or blue LED lighting
- Soft close door with articulating hinges
- Volume of 5.1 cu ft holds up to 14 wine bottles (750 ml) and 68 bottles (12 oz) or 72 cans (12 oz)
- Stainless steel handle (7/8" diameter)
- Integrated model requires 3/4" custom door panel and handle (not supplied by U-Line)
- Field reversible door is shipped right-hand hinged
Amps: Running (115 v) | 1.6 A |
Capacity Bottle | 68 |
Capacity Can | 72 |
Capacity: Total Volume (cu ft) | 5.1 cu ft |
Capacity: Wine Bottle (750 ml) | 14 |
Control Type | Digital |
Dimensions: Product Depth | 22 15/16' (583mm) |
Dimensions: Product Height | 33 11/16' (855mm) |
Dimensions: Product Width | 23 5/8' (600mm) |
Energy Consumption: Avg. Per Year | 220 kWh |
Refrigerant Type | R600a |
Sabbath (Star K Certified) | Yes |
Shipping Depth | 28.63' (727 mm) |
Shipping Height | 36' (914 mm) |
Shipping Weight | 163 lbs (74 kg) |
Shipping Width | 26.5' (673 mm) |
Temperature Range | 38°F to 65°F / 33°F to 45°F |
