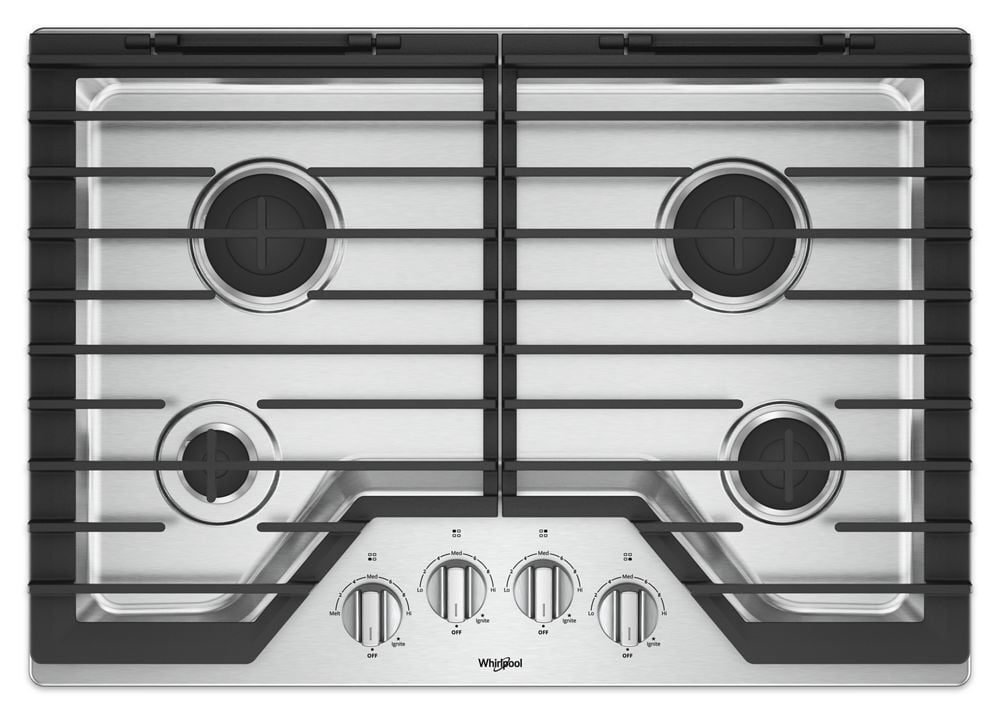

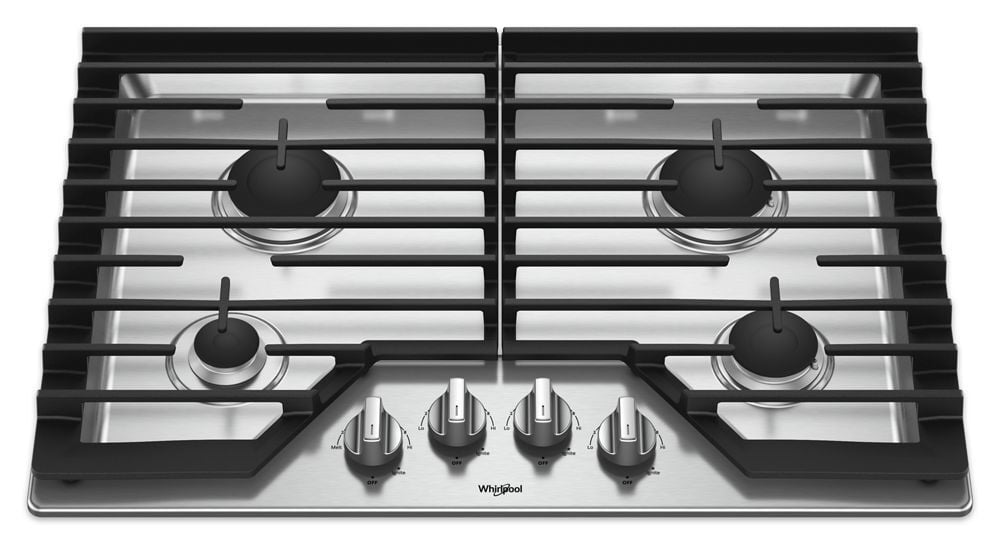

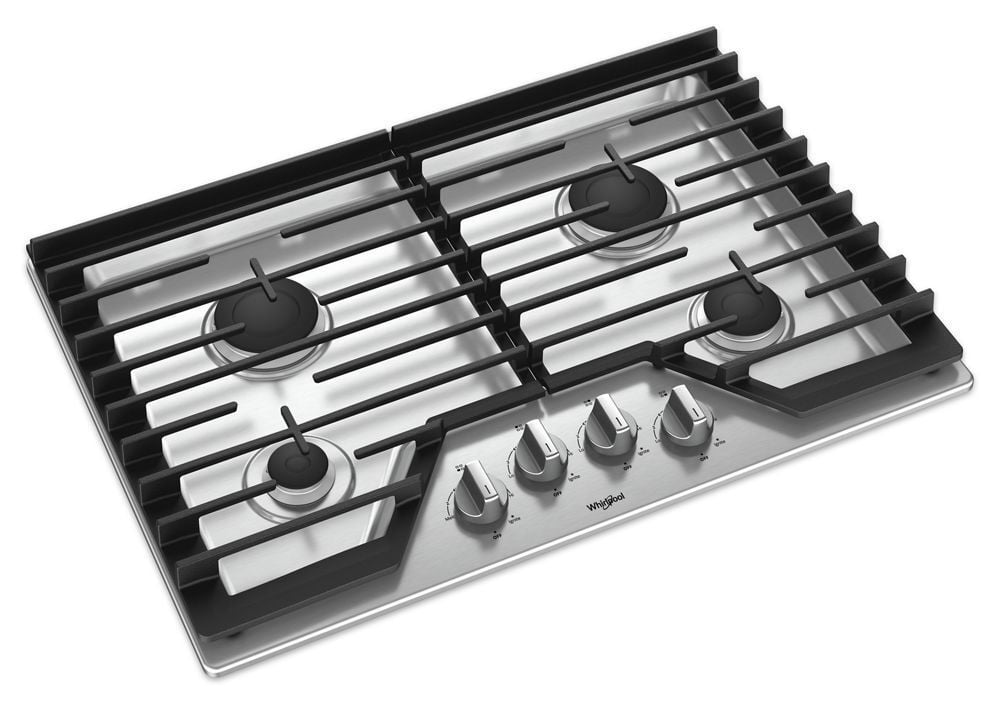

Whirlpool WCG55US0HS 30-Inch Gas Cooktop With Ez-2-Lift Hinged Cast-Iron Grates
Rebates &
Promotions
Whirlpool Buy More Save More Delivery and Installation Allowance - Enjoy exclusive rebate savings with purchase of qualifying Whirlpool appliances. Download Valid: 12/27/2024-01/31/2025
Cleanup Is Quick And Easy With A Cooktop Designed To Cut Down On Messes. Dishwasher-Safe, Ez-2-Lift Cast Iron Grates Are Hinged So There'S No Need To Remove Them To Wipe Underneath And The Raised Edges Of The Upswept Spillguard Cooktop Help Contain Spills. For Added Flexibility, You Can Install This Cooktop Over A Wall Oven Or On Its Own.
- EZ-2-Lift Hinged Cast-Iron Grates
- Upswept SpillGuard Cooktop
- SpeedHeat Burner
- AccuSimmer(R) Burner
- Sealed Burners
- Full Width Grates
Dimensions | |
Cutout Depth | 19.0 in |
Cutout Depth Max | 20.0 in |
Cutout Width | 28-1/2 in |
Cutout Width Max | 29-5/16 in |
Depth | 21.0 in |
Height | 4-1/8 in |
Maximum Height | 4-1/8 in |
Minimum Height | 3-3/8 in |
Width | 30.0 in |
Cooktop Type | Standard |
Fuel Type | Gas |
Installs Over Built-In Oven | Yes |
LP Convertible | Yes - Kit Included |
Power Boost | No |
Size | 30 in |
Infinite Heat Controls | Yes |
Knob Color | Color Coordinated |
Knob Type | Dishwasher-Safe Plastic |
Location of Controls | Front |
Automatic Pan Detection | No |
Cooktop Element Style | Sealed Burner |
Cooktop Surface Color | Color Coordinated |
Downdraft Vent | No |
Grate Details | Dishwasher Safe, Matte Finish, Continuous with Hinge, Cast Iron Grates |
Heating Element On Indicator Light | No |
Hot Surface Indicator Light | No |
Ignition Type | Direct Spark Ignition |
Left Rear Element-Burner Type | SpeedHeat |
Number of Cooking Element-Burners | 4 |
Number of Grates | 2 |
Right Front Element-Burner Type | Burner |
Digital Display | No |
Power Cord Included | Yes |
Power Outage Compatible | Yes |
Features | ADA Compliant |
Cooktop Surface Material | Stainless/Porcelain Coated Steel |
