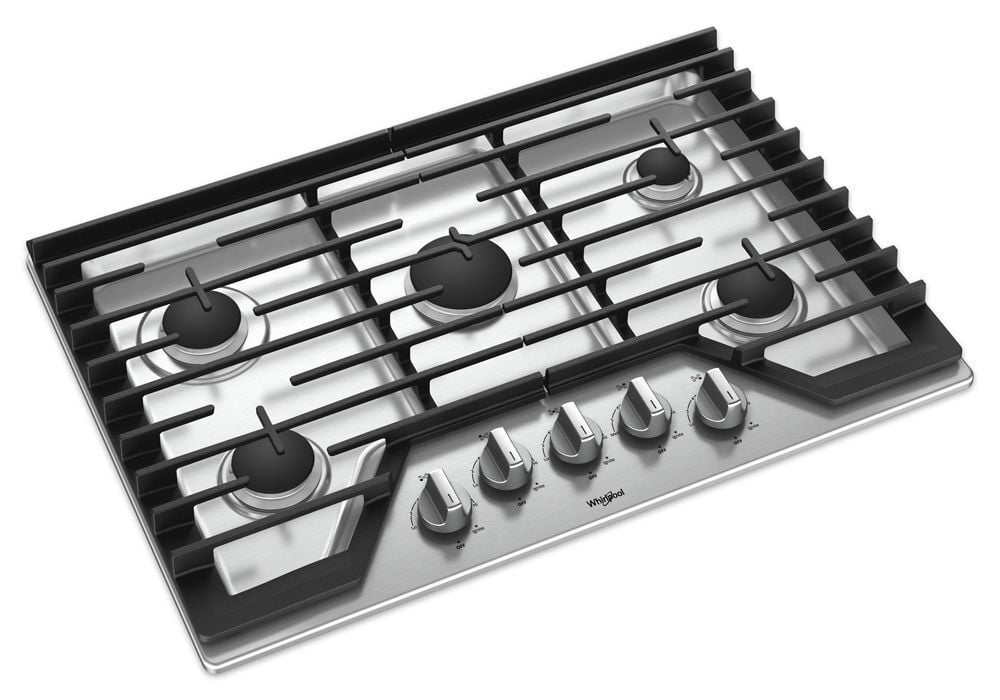

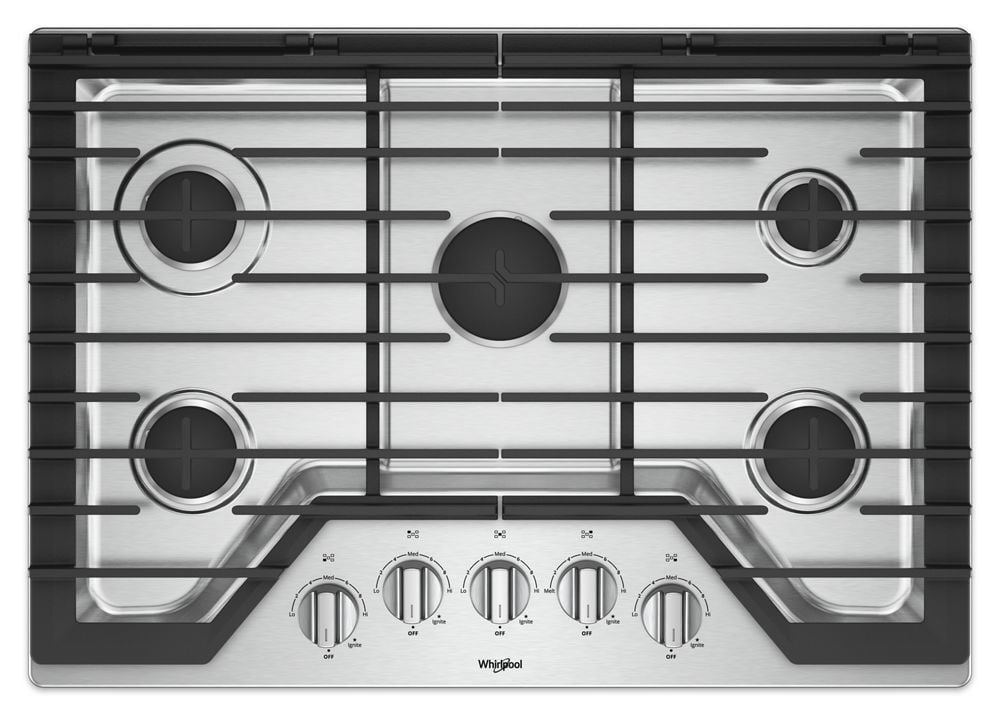

Whirlpool WCG77US0HS 30-Inch Gas Cooktop With Ez-2-Lift Hinged Cast-Iron Grates
Whirlpool WCG77US0HS 30-Inch Gas Cooktop With Ez-2-Lift Hinged Cast-Iron Grates
SKU: WCG77US0HS
UPC: 883049467023
Colors:
Stainless SteelWhen Will I Get My Order?
x
THIS ITEM QUALIFIES FOR FREE DELIVERY!
EXTENDED PROTECTION
3 year plan
$120.995 year plan
$228.99Couldn't load pickup availability
When Will I Get My Order?
x
Whirlpool WCG77US0HS 30-Inch Gas Cooktop With Ez-2-Lift Hinged Cast-Iron Grates
Rebates &
Promotions
Whirlpool Buy More Save More Delivery and Installation Allowance - Enjoy exclusive rebate savings with purchase of qualifying Whirlpool appliances. Download Valid: 12/27/2024-01/31/2025
Cleanup Is Quick And Easy With A Cooktop Designed To Cut Down On Messes. Dishwasher-Safe, Ez-2-Lift Cast Iron Grates Are Hinged So There'S No Need To Remove Them To Wipe Underneath And Raised Edges Help Contain Spills. This 5-Burner Cooktop Can Be Installed Over A Wall Oven Or On Its Own For Added Flexibility.
- EZ-2-Lift Hinged Cast-Iron Grates
- Upswept SpillGuard Cooktop
- SpeedHeat Burner
- AccuSimmer(R) Burner
- Fifth Burner
- Sealed Burners
| Dimensions | |
| Cutout Depth | 19-1/2 in |
| Cutout Depth Max | 20.0 in |
| Cutout Depth Min | 19.0 in |
| Cutout Width | 28-7/8 in |
| Cutout Width Max | 29-5/16 in |
| Cutout Width Min | 28-1/2 in |
| Depth | 21.0 in |
| Height | 4-1/8 in |
| Maximum Height | 4-1/8 in |
| Minimum Height | 3-3/8 in |
| Width | 30.0 in |
| Cooktop Type | Standard |
| Fuel Type | Gas |
| Installs Over Built-In Oven | Yes |
| LP Convertible | Yes - Kit Included |
| Power Boost | No |
| Size | 30 in |
| Infinite Heat Controls | Yes |
| Knob Color | Color Coordinated |
| Knob Type | Dishwasher-Safe Plastic |
| Location of Controls | Front |
| Automatic Pan Detection | No |
| Cooktop Element Style | Sealed Burner |
| Cooktop Surface Color | Color Coordinated |
| Downdraft Vent | No |
| Grate Details | Dishwasher Safe, Matte Finish, Continuous with Hinge, Cast Iron Grates |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Ignition Type | Direct Spark Ignition |
| Left Rear Element-Burner Type | Sealed Burner |
| Number of Cooking Element-Burners | 5 |
| Number of Grates | 2 |
| Right Front Element-Burner Type | SpeedHeat |
| Digital Display | No |
| Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov . |
| Power Cord Included | Yes |
| Power Outage Compatible | Yes |
| Features | ADA Compliant |
| Cooktop Surface Material | Stainless/Porcelain Coated Steel |
