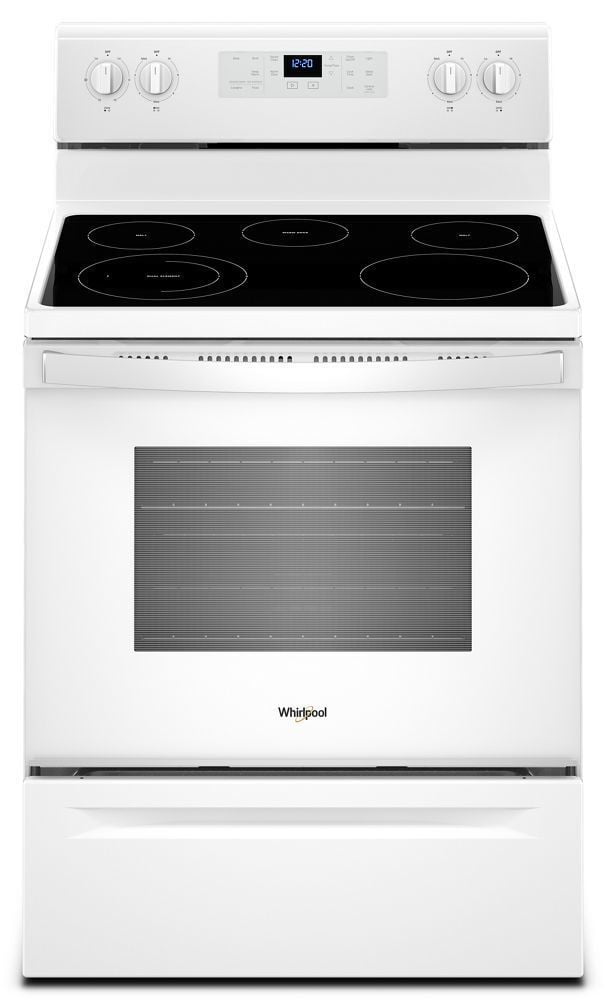

Whirlpool WFE505W0HW 5.3 Cu. Ft. Freestanding Electric Range With 5 Elements
Rebates &
Promotions
Frozen Bake Technology
Skip preheating and cook frozen favorites like pizza and lasagna faster 1 with preprogrammed settings that automatically adjust cooking times for you.

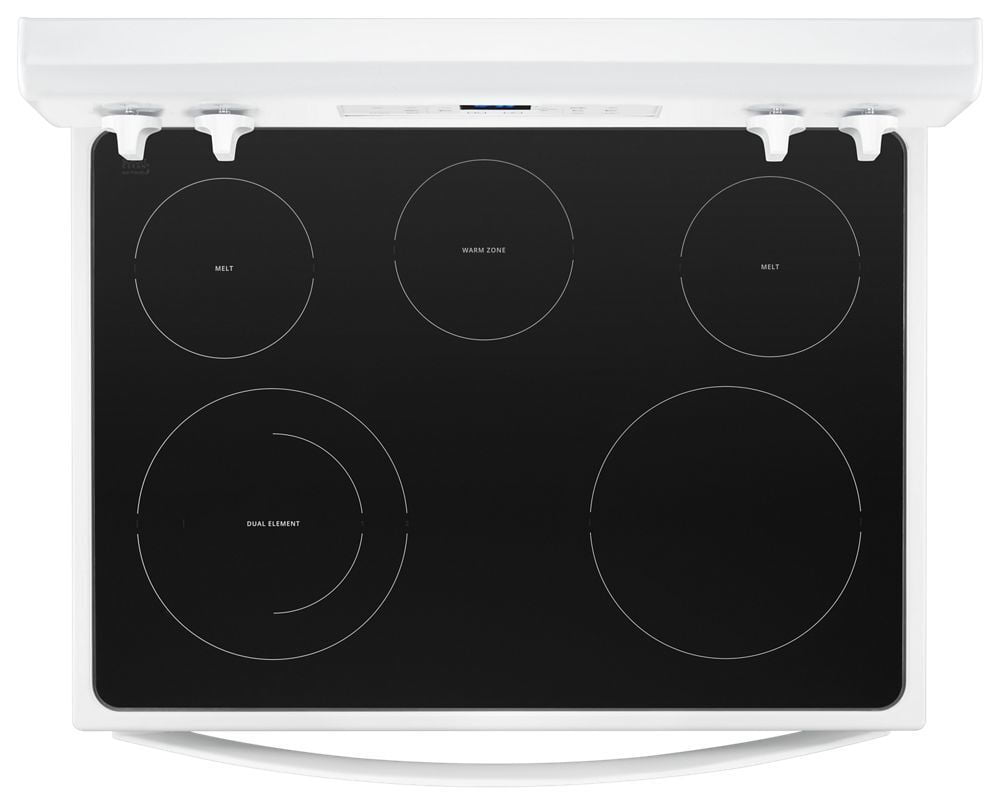

FlexHeat Dual Radiant Element
Get two elements in one with a 6" inner ring that's great for smaller pots and pans and a 9" expandable outer ring that makes room for larger cookware.
Warm Zone Element
Keep food warm while you're finishing the rest of the meal using this low-powered center element.
This Whirlpool® Electric Range Helps You Cook For The Family, Even On A Hectic Schedule. Skip Preheating And Cook Frozen Foods Faster With Frozen Bake Technology. Flexheat Dual Radiant Elements On This Self-Cleaning Range Give You Two Elements In One For Flexibility. The Ceramic Glass Cooktop On This Whirlpool® Electric Range With Self-Cleaning Oven Also Makes Cleanup Quick.
- Frozen Bake Technology Skip preheating and cook frozen favorites like pizza and lasagna faster with preprogrammed settings that automatically adjust cooking times for you.
- FlexHeat Dual Radiant Element Get two elements in one with a 6" inner ring that's great for smaller pots and pans and a 9" expandable outer ring that makes room for larger cookware.
- Warm Zone Element Keep food warm while you're finishing the rest of the meal using this low-powered center element.
- Keep Warm Setting Keep dishes ready to serve while you work on the rest of the meal. This setting delivers low heat to the oven to keep prepared dishes from getting cold.
- Temperature Sensor Get evenly-baked food with a sensor that monitors oven temperature and adjusts the cooking elements.
- Closed Door Broiling Maintain the optimal broiling temperature for food while still keeping the kitchen comfortable using this broiling temperature management system.
- Control Lock Mode Disable the control panel to avoid unintended use.
- SteamClean Wipe up light messes quickly with this option that saturates baked on messes on the bottom of the oven with water and high heat for easy cleaning.
- 5.3 cu. ft. Capacity Easily cook large meals with 5.3 cu. ft. capacity
Exterior | |
Oven Window Size | Large |
Capacity | 5-3/10 |
Cutout Depth | 24.0 in |
Cutout Height | 36.0 in |
Cutout Width | 30.0 in |
Depth | 27-3/4 in |
Depth Closed Excluding Handles | 25-5/16 in |
Depth Closed Including Handles | 27-3/4 in |
Depth With Door Open 90 Degree | 46-11/16 in |
Height | 47-7/8 in |
Maximum Height | 47-7/8 in |
Minimum Height | 46-7/8 in |
Width | 29-7/8 in |
Fuel Type | Electric |
LP Convertible | No |
Range Type | Freestanding |
Size | 30 in |
Automatic Convection Conversion Temperature Adjust | No |
Automatic Shut-Off | Yes |
Broiler Location | Top of Oven |
Convection Functions | No |
Door Removable | Yes |
Drawer Type | Storage Drawer |
Hidden Bake Element | No |
Interior Color | Dark Grey |
Oven Control Location | Backguard |
Oven Control Type | Electronic Touch |
Oven Cooking System | Thermal |
Oven Interior Depth | 18-1/2 in |
Oven Interior Height | 18-1/8 in |
Oven Interior Width | 24-1/2 in |
Oven Light Switch Location | Oven Control |
Power On Indicator Light | Yes |
Handle Material | Metal |
Center Rear Element-Burner Size | 6'' |
Cooktop Control Knob Type | Plastic |
Cooktop Control Location | Backguard |
Cooktop Control Type | Knobs |
Cooktop Element Style | Radiant |
Cooktop Surface Color | Black |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
Left Front Element-Burner Size | 9''/6'' |
Left Rear Element-Burner Size | 6'' |
Left Rear Element-Burner Type | Radiant |
Number of Cooking Element-Burners | 5 |
Right Front Element-Burner Size | 9'' |
Right Front Element-Burner Type | Radiant |
Right Rear Element-Burner Size | 6'' |
Bake Element Power | 2400W |
Broiler Element Power | 3400W |
Cooktop Surface Material | Ceramic Glass |
Number of Oven Racks | 2 |
Number of Rack Guides | 5 |
Oven Cleaning Type | Steam-Clean |
Oven Light Type | Incandescent |
Oven Rack Type | Standard |
Power Cord Included | No |
Watts | 11 |
Natural Gas Convertible | No |
Power Outage Compatible | No |
Features | ADA Compliant |
