Whirlpool WFE505W0JZ 5.3 Cu. Ft. Whirlpool® Electric Range With Frozen Bake Technology.

Whirlpool WFE505W0JZ 5.3 Cu. Ft. Whirlpool® Electric Range With Frozen Bake Technology.

When Will I Get My Order?

x

EXTENDED PROTECTION

3 year plan

$120.99

5 year plan

$228.99
Shipping calculated at checkout.
View full details

When Will I Get My Order?

x

Whirlpool WFE505W0JZ 5.3 Cu. Ft. Whirlpool® Electric Range With Frozen Bake Technology.
Whirlpool WFE505W0JZ 5.3 Cu. Ft. Whirlpool® Electric Range With Frozen Bake Technology.

Rebates &
Promotions

Whirlpool Buy More Save More Delivery and Installation Allowance - Enjoy exclusive rebate savings with purchase of qualifying Whirlpool appliances. Download Valid: 12/27/2024-01/31/2025

FlexHeat Dual Radiant Element

Get two elements in one with a 6" inner ring that's great for smaller pots and pans and a 9" expandable outer ring that makes room for larger cookware.

Frozen Bake technology

Skip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings.

Warm Zone Element

Keep food warm while you're finishing the rest of the meal using this low-powered center element.

Keep Warm setting

Keep dishes from getting cold with this setting that delivers low heat to the oven.


This Whirlpool® Electric Range With A Dual Element Stove Top Resists Fingerprints And Helps You Get Dinner To The Table. Skip Preheating For Favorites Like Pizza With Frozen Bake Technology. This Steam Cleaning Oven Also Prevents Cooked Food From Getting Cold With A Warm Zone On The Cooktop And The Keep Warm Setting In The Oven.


  • FlexHeat Dual Radiant Element Get two elements in one with a 6" inner ring that's great for smaller pots and pans and a 9" expandable outer ring that makes room for larger cookware.
  • Frozen Bake technology Skip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings.
  • Warm Zone Element Keep food warm while you're finishing the rest of the meal using this low-powered center element.
  • Keep Warm setting Keep dishes from getting cold with this setting that delivers low heat to the oven.
  • Large Oven Window Keep an eye on your meal through the large oven window.
  • Fingerprint Resistant Available in black stainless steel and stainless steel finishes that are easy-to-clean and resist fingerprints and smudges.
  • Closed Door Broiling Maintain the optimal broiling temperature for food while still keeping the kitchen comfortable using this broiling temperature management system.
  • Control Lock Mode Disable the control panel to avoid unintended use.
  • Steam Clean option Use the Steam Clean option periodically to clean up after everyday light spills on the bottom of the ovenusing only heat and 1-1/4 cups of water-no harsh chemicals or cleaners needed.
  • 5.3 cu. ft. Capacity Easily cook large meals with 5.3 cu. ft. capacity

Dimensions
Capacity 5-3/10
Cutout Depth 24.0 in
Cutout Height 36.0 in
Cutout Width 30.0 in

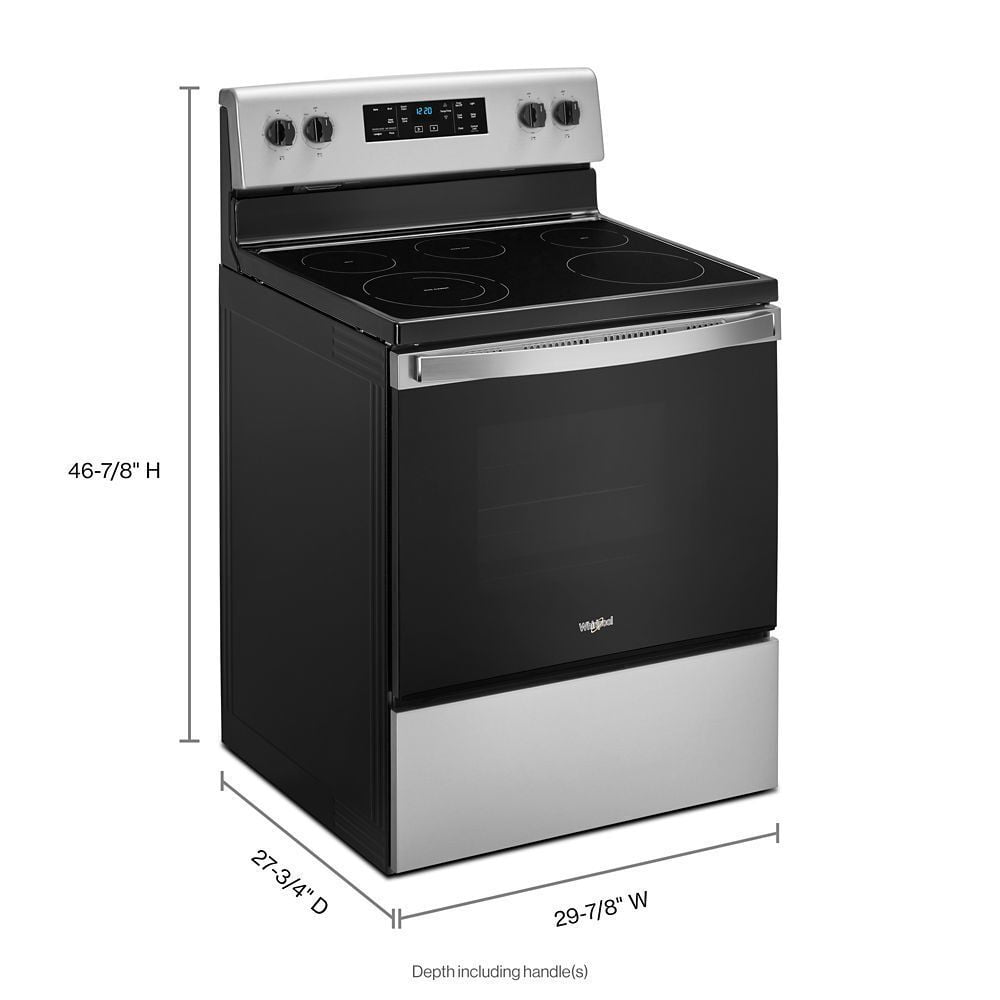

Depth 27-3/4 in
Depth Closed Excluding Handles 25-5/16 in
Depth Closed Including Handles 28.0 in
Depth With Door Open 90 Degree 46-11/16 in
Height 47-7/8 in
Height To Top Of Cabinet 36.0 in
Maximum Height 47-7/8 in
Minimum Height 46-7/8 in
Width 29-7/8 in
Fuel Type Electric
Range Type Freestanding
Size 30 in
Automatic Convection Conversion Temperature Adjust No
Automatic Shut-Off No
Broiler Location Top Center
Door Removable Yes
Drawer Type Storage Drawer
Hidden Bake Element No
Interior Color Black
Oven Control Location Backguard
Oven Control Type Electronic Touch
Oven Cooking System Thermal
Oven Interior Depth 18-1/2 in
Oven Interior Height 18-1/8 in
Oven Interior Width 24-1/2 in
Oven Light Switch Location Oven Control
Power On Indicator Light Yes
Handle Material Metal
Power Outage Compatible No
Center Front Element-Burner Size 6''
Cooktop Control Knob Type Plastic
Cooktop Control Location Backguard
Cooktop Control Type Knobs
Cooktop Element Style Radiant
Cooktop Surface Color Black
Heating Element On Indicator Light Yes
Hot Surface Indicator Light Yes
Left Front Element-Burner Size 9''/6''
Left Rear Element-Burner Size 6''
Left Rear Element-Burner Type Standard
Number of Cooking Element-Burners 5
Right Front Element-Burner Size 9''
Right Front Element-Burner Type Standard
Right Rear Element-Burner Size 6''
Bake Element Power 2400W
Broiler Element Power 3400W
Cooktop Surface Material Glass
Number of Oven Racks 2
Number of Rack Guides 5
Oven Cleaning Type Steam-Clean
Oven Light Type Incandescent
Oven Rack Type Standard (Both)
Prop 65 CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov .
Power Cord Included No
Watts 8000
Oven Window Size Extra Large

FlexHeat

Keep Warm
