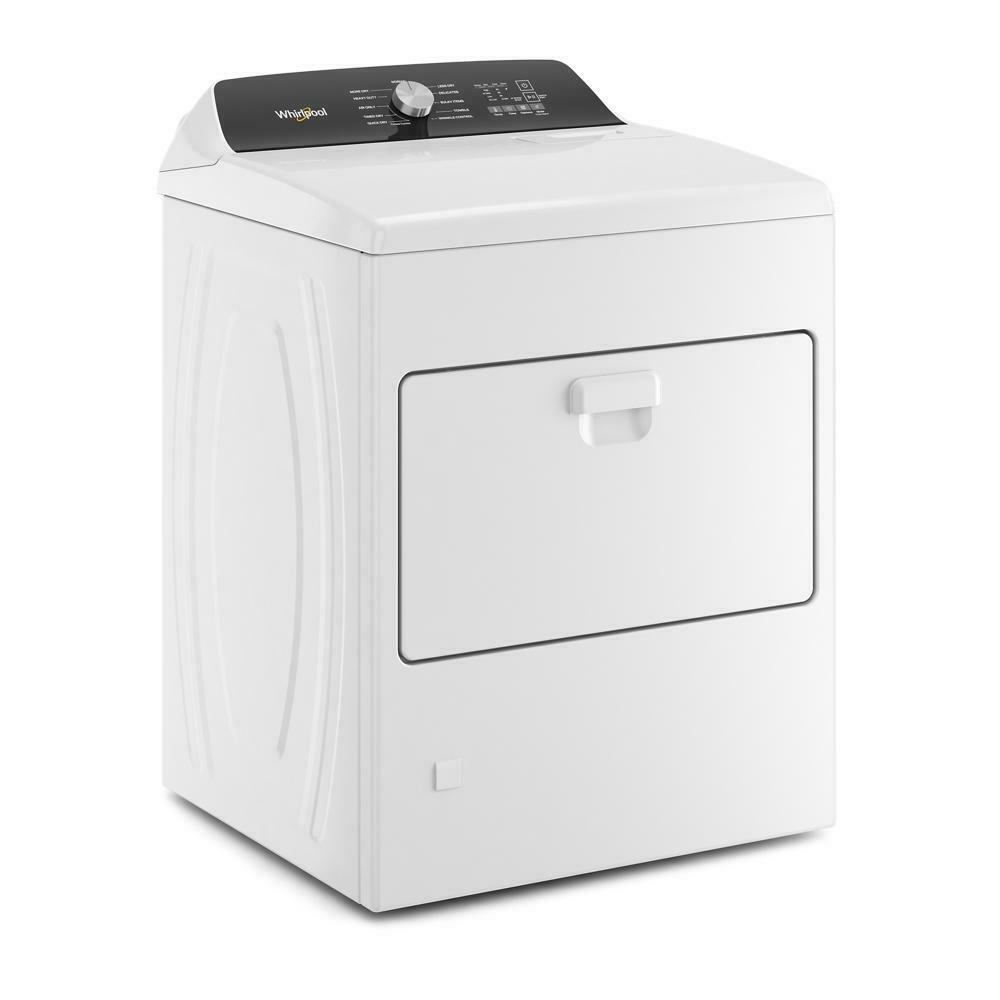

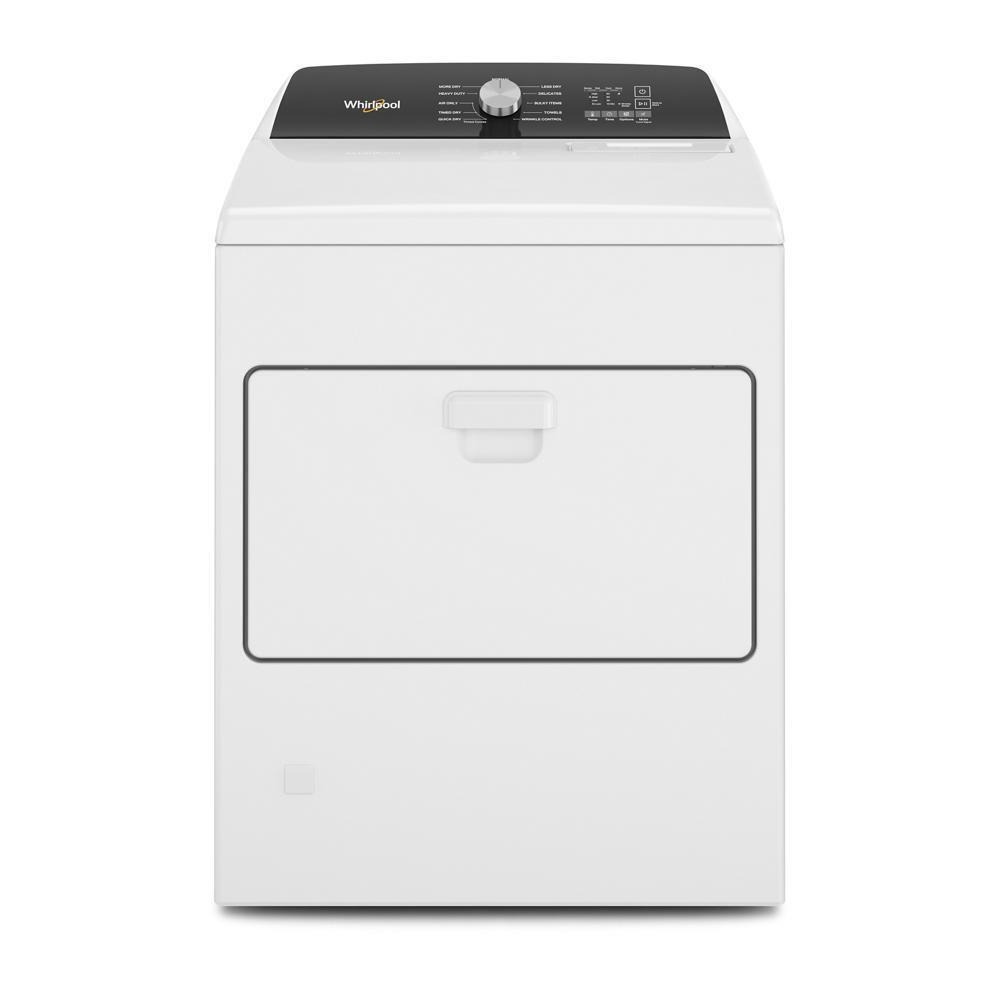

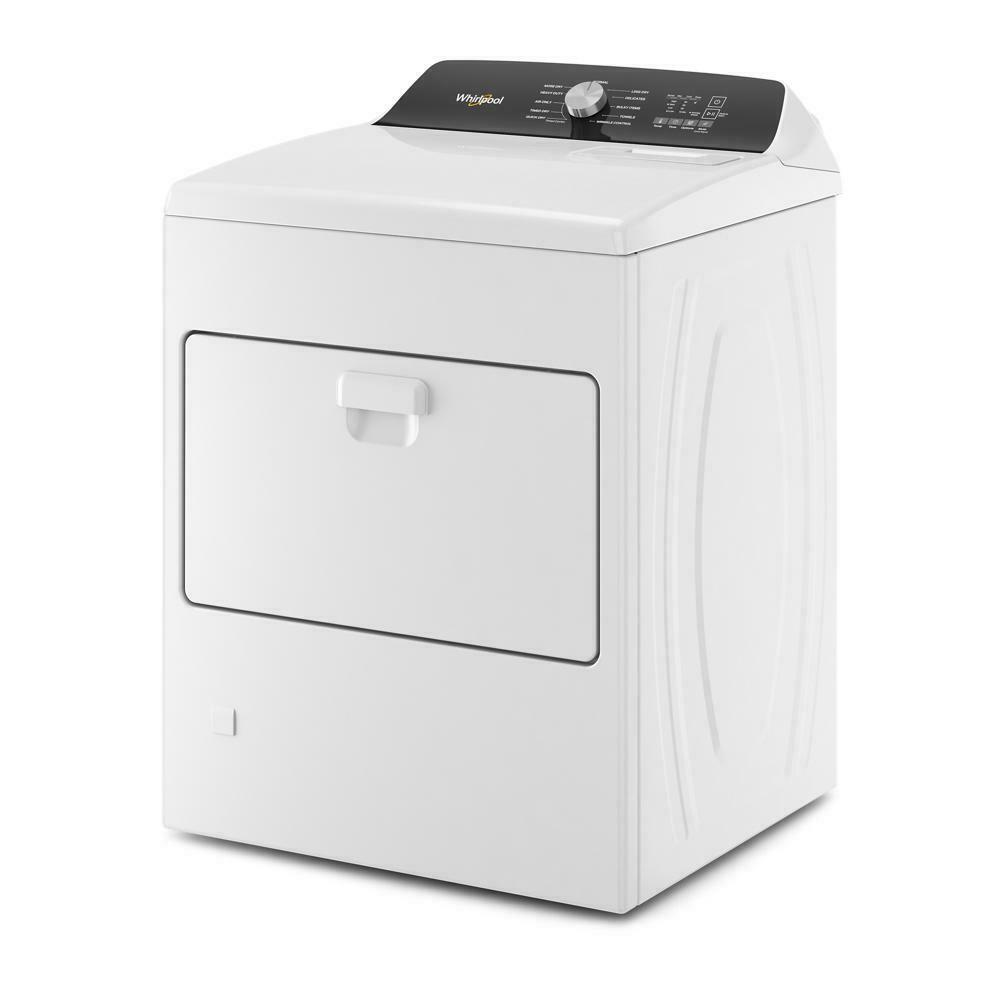

Whirlpool WGD500RLW 7.0 Cu. Ft. Long Vent Gas Moisture Sensing Dryer
Moisture Sensing
Two sensors closely monitor inside moisture and air temperatures to deliver the right results for each load. When fabrics are evenly dry and air reaches ideal temperatures, the cycle stops, helping prevent over- and under-drying.
Timed Dry
Take control of your time and the dryness level of your load. Set the control for 15, 30, 60 or 90 minutes when a damp load needs a little extra dry time or when using a drying rack.
Wrinkle Shield™ Option
After the cycle ends, help keep wrinkles from setting into clean, dry fabrics with the Wrinkle Shield™ Option. It keeps clothes tumbling for up to 150 minutes after the cycle ends or until you open the door.
Air Only Cycle
Fluff and refresh loads or air out delicates with a cycle that tumbles your items with no heat.
Height: 38.5"
Depth: 28"
- Moisture Sensing
- Wrinkle Shield™ Option
- Timed Dry
- Air Only Cycle
- Long Vent Design
Options | |
Dryer Option Selections | Static Reduce,Temperature,Wrinkle Shield™ |
Number of Dryer Options | 3 |
Cycles | |
Drying Cycles Selections | Regular Normal Dry,Regular Less Dry,Regular More Dry,Bulky Items,Delicates,Heavy Duty,Quick Dry,Timed Dry,Towels/Sheets,Whites,Wrinkle Control |
Number of Dryer Cycles | 11 |
Certifications | |
ADA Compliant | No |
Emerging Technology Award | No |
Energy Star® Qualified | No |
UL | Yes |

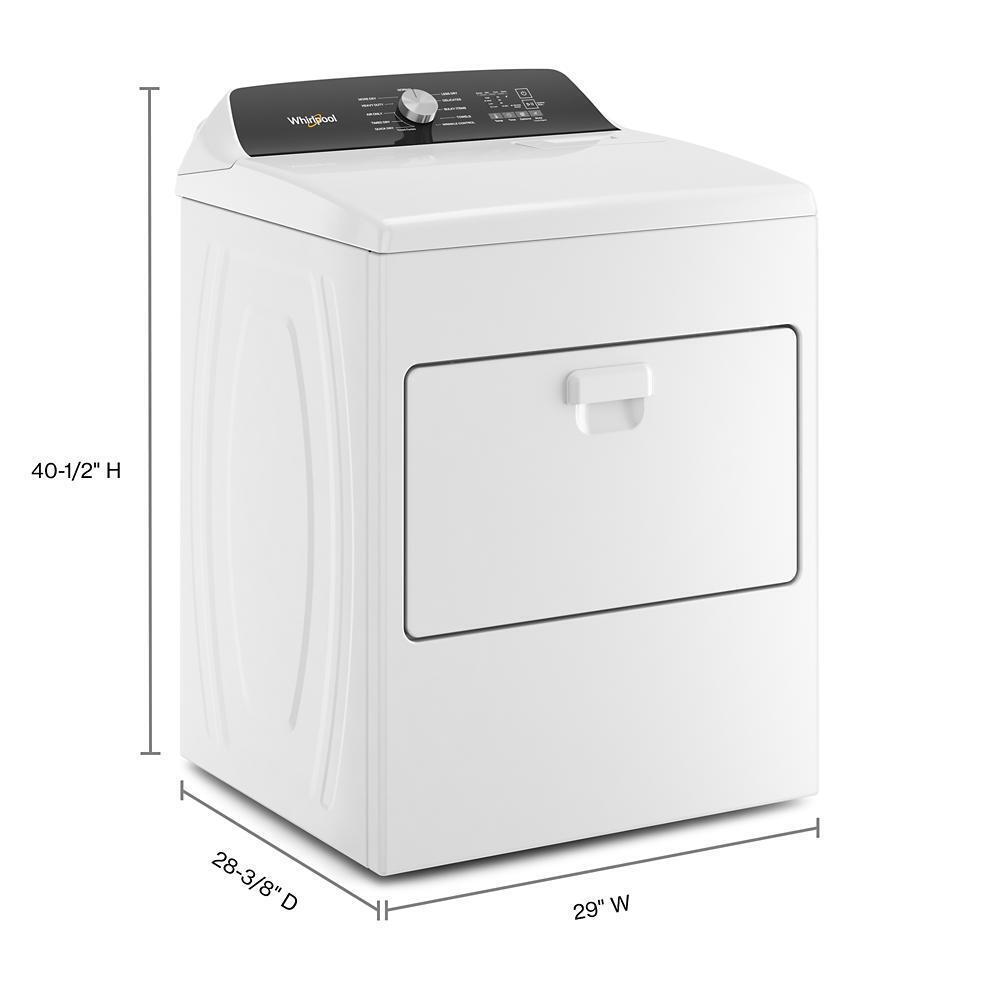

Dimensions | |
Door Opening Width(IN,inches) | 16.75 |
Height(IN,inches) | 43 |
Capacity IEC CAN(FT3,cubic feet) | 7.0 |
Minimum Height(IN,inches) | 40 1/2 |
Carton Depth(IN,inches) | 30 |
Depth(IN,inches) | 28 3/8 |
Height To Top Of Cabinet(IN,inches) | 38 1/2 |
Width(IN,inches) | 29 |
Maximum Height(IN,inches) | 42 1/8 |
Carton Width(IN,inches) | 31 |
Depth With Door Open 90 Degree(IN,inches) | 41 11/16 |
Capacity(FT3,cubic feet) | 7.00 |
Door Opening Height(IN,inches) | 20.00 |
Carton Height(IN,inches) | 44 |
Exterior | |
Reversible Door | No |
Window | No |
Door Style | Hamper |

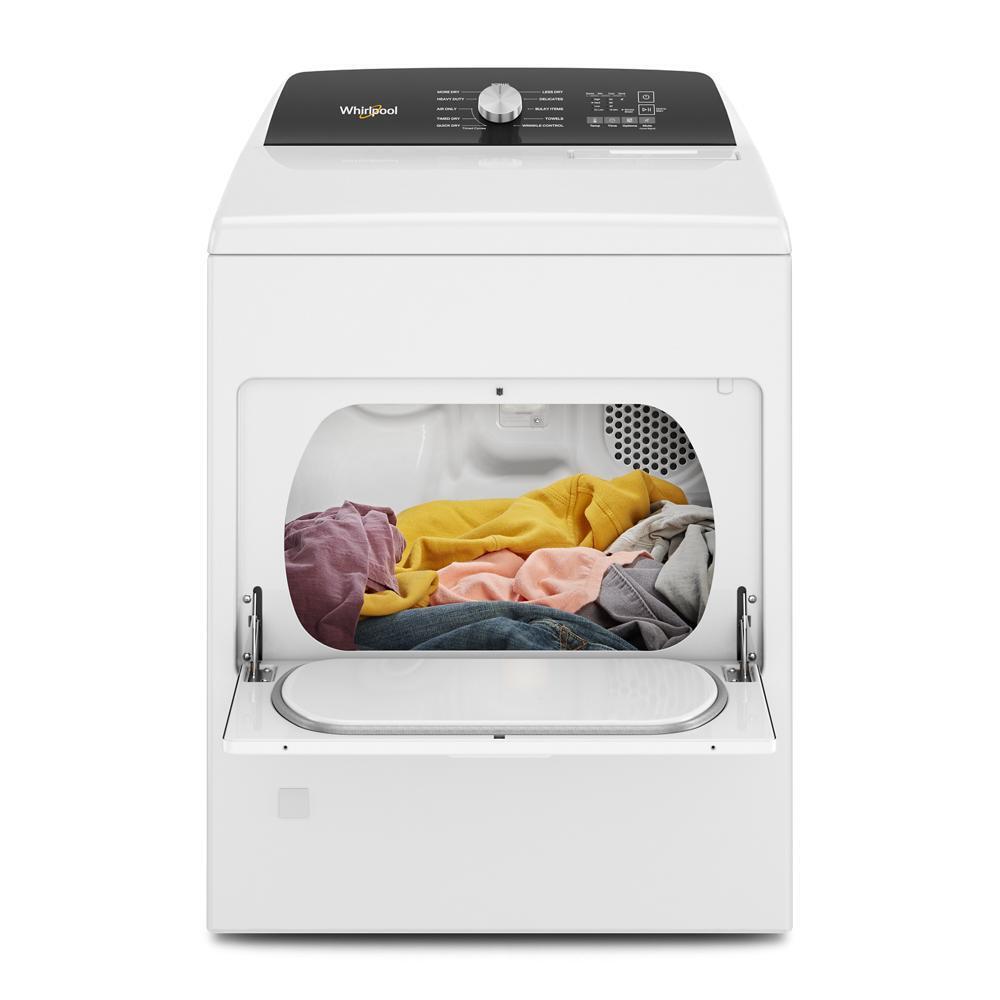

Door Opening | Drop Down |
Details | |
Drum Material | Powder Coat |
Drying Rack | No |
Maytag Commercial Components | No |
Quad Baffles | Yes |
Lint Screen Location | Top |
Steam Hose Y Connector | No |
Motor Horsepower | 1/4 HP |
Eco Monitor/Efficiency Monitor | No |
Hoses Included | No |
Interior Light | Yes |
General | |
Accessory Relationships | Yes |
Number of Temperatures | 4 |
Dryer Temperature Selections | High,Low,Medium,Air Only |

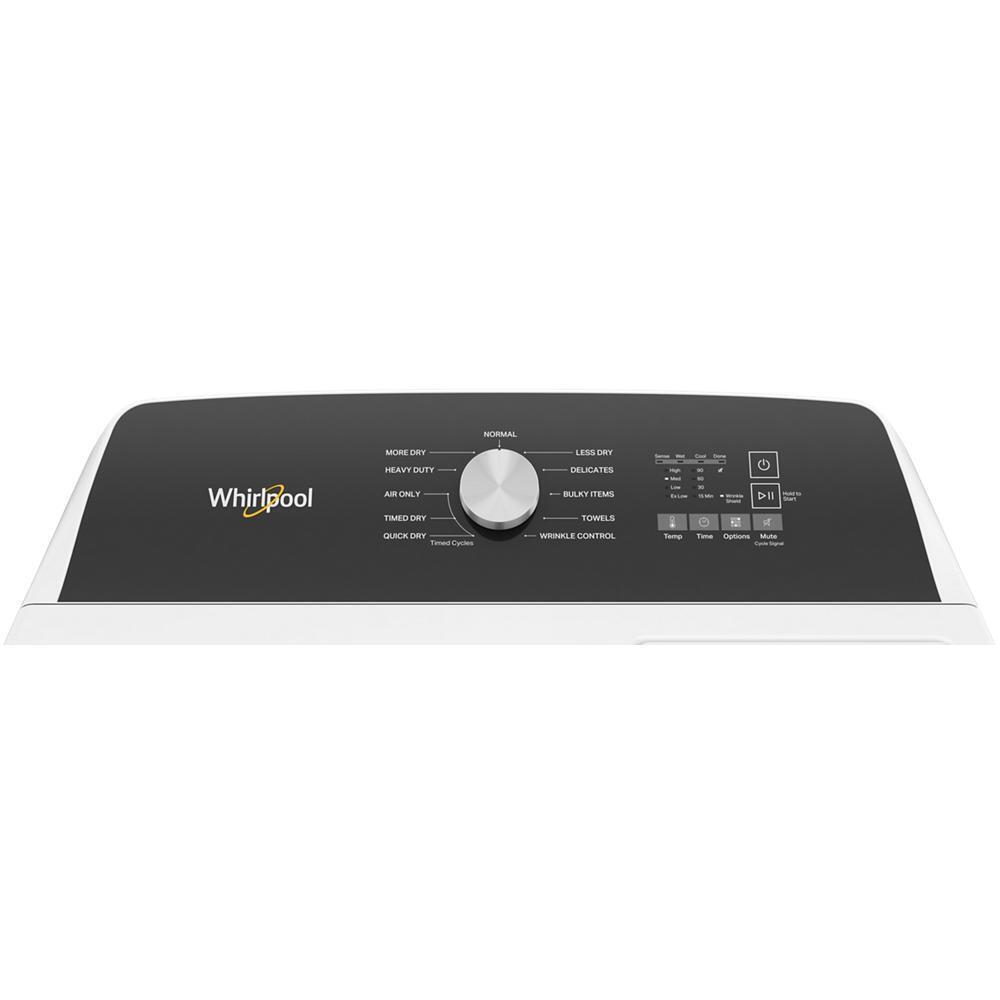

Controls | |
Automatic Temperature Controls | Yes |
Feedback-Status Indicators | Cool,Done,Sensing,Wet |
End of Cycle Signal | Yes |
Control Location | Backguard |
Electronic Display Type | Cycle Indicator Lights |
Features | |
Lint Filter Indicator | No |
Pedestal Options | No |
Sound Package | No |
Cycle Time Remaining | No |
EcoBoost™/Energy Saver | No |
Moisture Sensor | Yes |
LP Convertible | Yes |
Stackable | No |
Automatic Dry Control | Yes |
Secondary Lint Filter | No |
Electrical | |
Volts | 120 |
Amps | 15 |
Hz | 60 |
Power Cord Included | Yes |
Compatibility | |
Connectivity | No |
Works With | No |
Installation Considerations | |
Long Vent | Yes |
Maximum Vent Length (ft.) | 160 |
Flat Back | No |

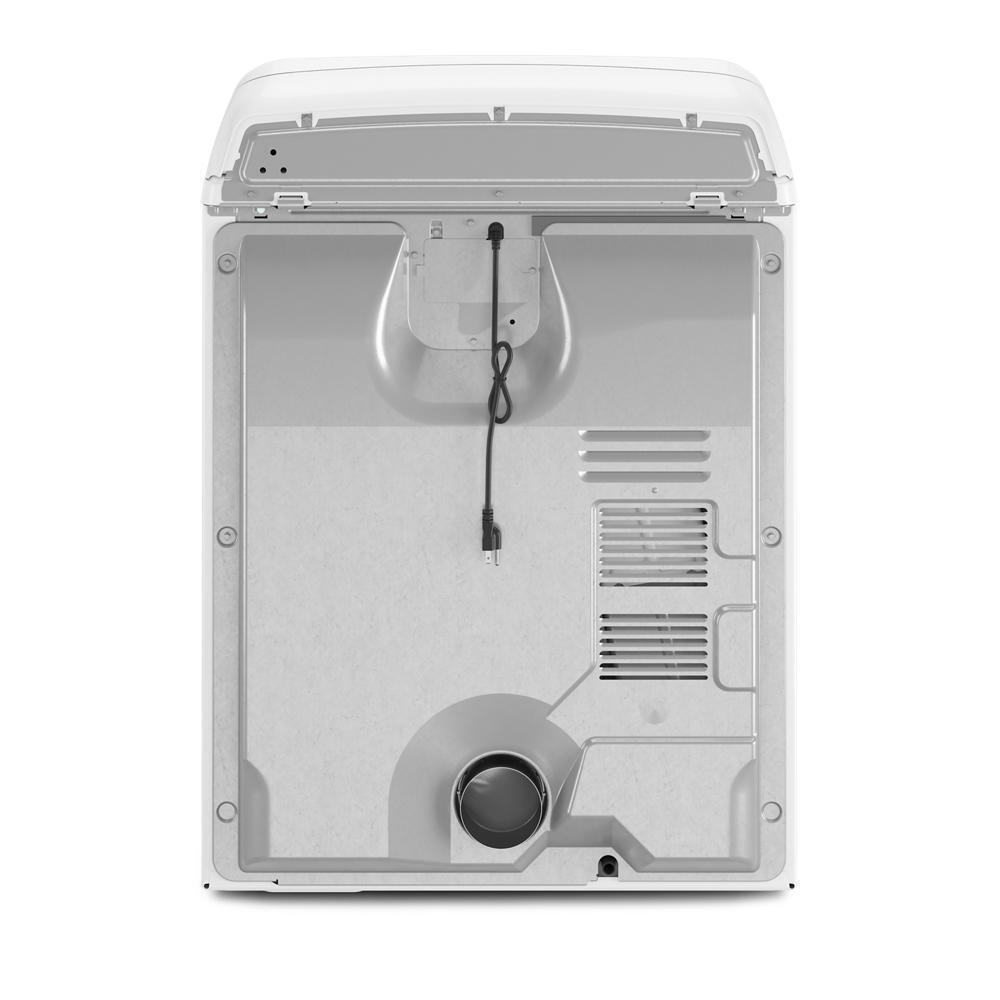

Venting Direction | Rear Only |
Modifiers | |
Selection of Drying Levels | Regular Less Dry,Regular More Dry,Regular Normal Dry |
Number of Dryness Levels | 3 |
