Whirlpool WGE745C0FS 6.7 Cu. Ft. Electric Double Oven Range With True Convection
Frozen Bake Technology
Skip preheating for favorites like pizza, lasagna, chicken nuggets, fries or pies so you can cook frozen foods faster 1 .

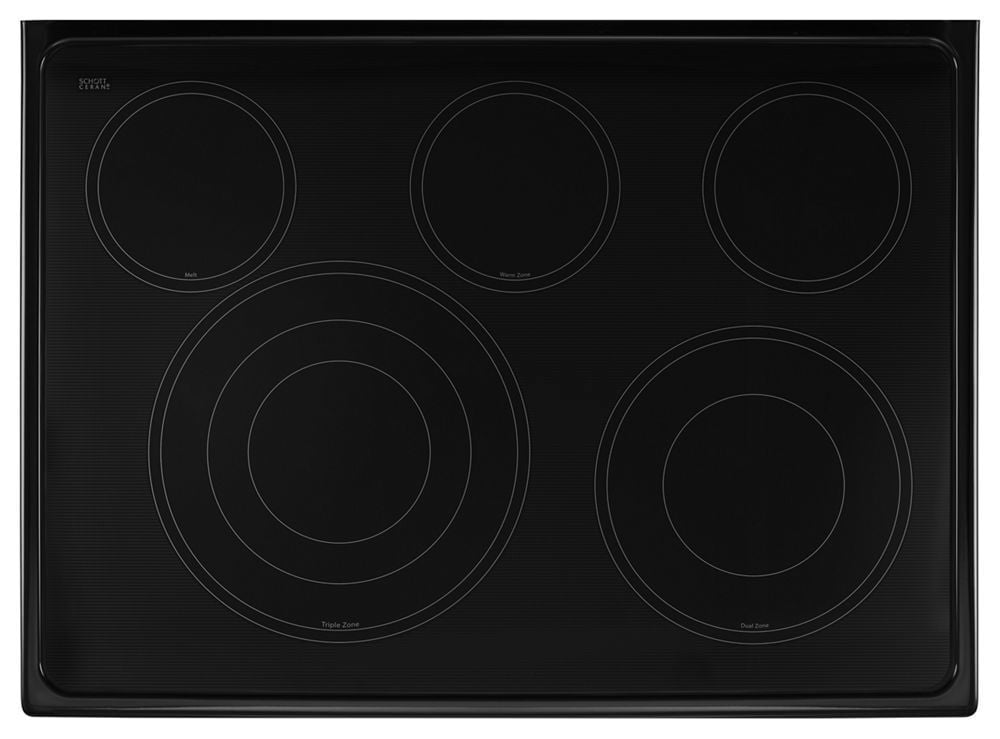

FlexHeat Triple Radiant Element
The FlexHeat triple radiant element is like having three elements in one. A 6" inner ring is great for smaller pots and pans, while 9" and 12" outer rings make room to heat larger cookware.
Convection Conversion
Your oven will do the math for you when you need to convert traditional recipes for convection cooking, automatically adjusting cooking times and temperatures.
Get Dinner On The Table Quickly With This Electric Double Oven Range. True Convection Cooking Lets You Cook Food Faster. Convection Conversion Will Do The Math For You To Adjust Cooking Times And Temperatures. Skip Preheating This Kitchen Range For Frozen Favorites Like Pizza, Lasagna, Chicken Nuggets, Fries Or Pies, Thanks To Frozen Bake Technology. The Flexheat Triple Radiant Element Is Like Having Three Elements In One To Fit Small Pots And Pans And Make Room For Larger Cookware On The Range Stove. And If You Make A Mess, Aqualift® Self-Cleaning Technology Provides This Kitchen Range With Odor-Free Cleaning Without Harsh Chemicals In Only 50 Minutes.
- Frozen Bake Technology Skip preheating for favorites like pizza, lasagna, chicken nuggets, fries or pies so you can cook frozen foods faster.
- FlexHeat Triple Radiant Element The FlexHeat triple radiant element is like having three elements in one. A 6" inner ring is great for smaller pots and pans, while 9" and 12" outer rings make room to heat larger cookware.
- Convection Conversion Your oven will do the math for you when you need to convert traditional recipes for convection cooking, automatically adjusting cooking times and temperatures.
- True Convection Cooking True convection cooking helps you cook foods faster by using a third element plus a fan to distribute hot air evenly over, under and around food.
- Temperature Sensor A built-in sensor monitors oven temperature and adjusts the cooking elements to help food bake evenly.
- Rapid Preheat (Lower Oven Only) Rapid Preheat uses all of the elements and a rear fan to heat the oven quickly.
- SteamClean Option The SteamClean option saturates baked on messes with water and high heat so they wipe up quickly.
- 6.7 Cu. Ft. Capacity
- Easy-Wipe Ceramic Glass Cooktop
Dimensions | |
Capacity | 6-7/10 |
Cutout Height | 36.0 in |
Cutout Width | 30-1/8 in |
Depth | 26-1/8 in |
Depth Closed Excluding Handles | 27-1/4 in |
Depth With Door Open 90 Degree | 46.0 in |
Height | 47-1/8 in |
Lower Oven Capacity | 4.2 cu. ft. |
Upper Oven Capacity | 2.5 cu. ft. |
Width | 29-15/16 in |
Fuel Type | Electric |
LP Convertible | No |
Range Type | Freestanding Double Oven |
Size | 30 in |
Automatic Convection Conversion Temperature Adjust | Yes |
Broiler Location | Top of Oven |
Convection Functions | Bake Lower, Broil Lower, Roast Lower |
Door Removable | Yes |
Drawer Type | None |
Hidden Bake Element | Yes Both |
Interior Color | Grey |
Lower Oven Interior Depth | 18-1/2 in |
Lower Oven Interior Height | 16.0 in |
Lower Oven Interior Width | 25.0 in |
Oven Control Location | Backguard |
Oven Control Type | Electronic Touch |
Oven Cooking System | Thermal Upper-Convection Lower |
Power On Indicator Light | Yes |
Upper Oven Interior Depth | 18-1/2 in |
Upper Oven Interior Height | 9-1/4 in |
Upper Oven Interior Width | 25.0 in |
Handle Material | Metal |
Center Rear Element-Burner Size | 6'' |
Cooktop Control Location | Backguard |
Cooktop Control Type | Knobs |
Cooktop Element Style | Smoothtop |
Cooktop Surface Color | Black |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
Left Front Element-Burner Size | 12''/9''/6'' |
Left Rear Element-Burner Size | 6'' |
Left Rear Element-Burner Type | Radiant Melt |
Number of Cooking Element-Burners | 5 |
Right Front Element-Burner Size | 9''/6'' |
Right Front Element-Burner Type | Radiant |
Right Rear Element-Burner Size | 6'' |
Bake Element Power | 2000W Both |
Broiler Element Power | 3600W |
Convection Element Type | True |
Cooktop Surface Material | Ceramic Glass |
Number of Oven Racks | 1 Upper-2 Lower |
Number of Rack Guides | 2 Upper-5 Lower |
Oven Cleaning Type | Steam-Clean |
Oven Light Type | Incandescent |
Oven Rack Type | Standard (Both) |
Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov . |
Power Cord Included | No |
Features | ADA Compliant, Frozen Bake Technology, Self-Cleaning, True Convection, Bladed Knob, Whirlpool Handle |
Knob Color | Color Coordinated/Black on Stainless |
Knob Type | Weighted-Plastic |
Oven Window Size | Extra Large Lower/Large Upper |
Power Outage Compatible | No |
