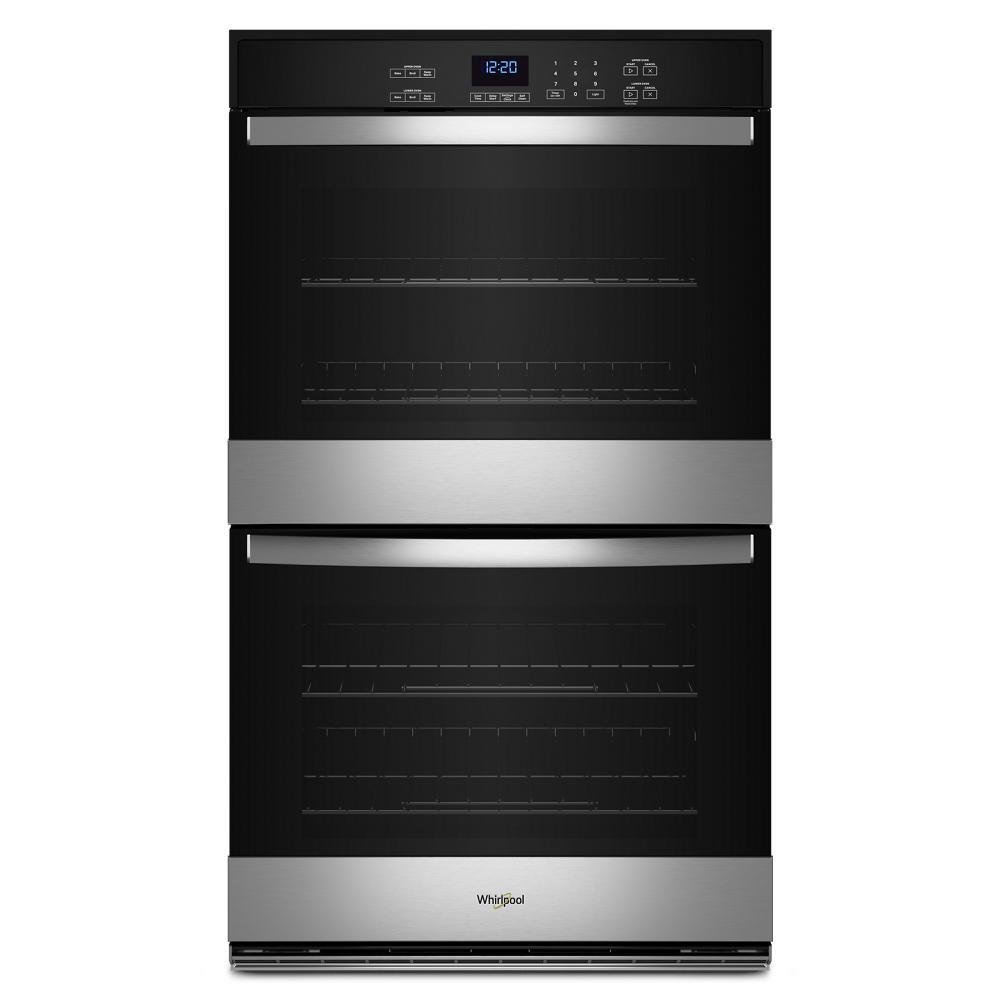

Whirlpool WOED3030LS 10.0 Total Cu. Ft. Double Self-Cleaning Wall Oven
Rebates &
Promotions
Extra-Large Oven Window
Keep an eye on your meal through the Extra-Large Oven Window.
FIT System Limited Guarantee
The FIT System Limited Guarantee ensures your new Whirlpool® Wall Oven will fit or get up to $300 toward cabinet modification.* *Fit System Limited Guarantee: On 27"" and 30"" Whirlpool® Wall Ovens. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified. Visit www.whirlpool.com/fit-guarantee.html for complete details.
Take On Every Meal With A Double Wall Oven That Cleans Without Chemicals Using The Adjustable Self-Clean Cycle. Use The Oven Steam Clean Option To Clean Up Everyday Spills. Get Meals To The Table Easily With This Fast Preheat Oven And Features Like Electronic Touch Controls And An Oven Control Lock.
- Cook more dishes at once with 10.0 Cu. Ft. Total Capacity
- Cook however you want with three cooking modes in one wall oven
- Clean without chemicals using the Adjustable Self-Clean Cycle
- Built by an American company, in business since 1911
- An American company in business since 1911
- Cook treats like cookies, pies and cakes with the Bake setting

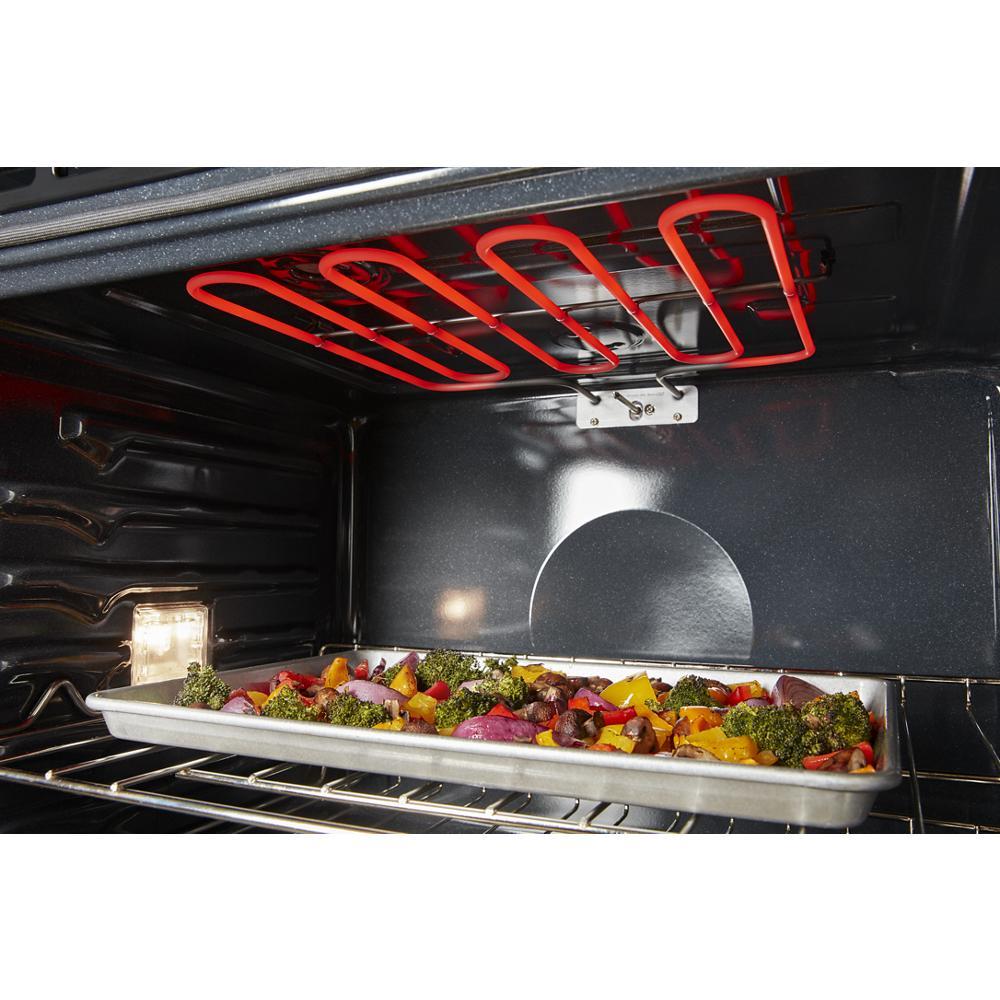

- Sear, char, brown or caramelize foods with the Broil Setting
- Avoid unintended use with Control Lock Mode
- Program the oven to bake at a future time with Delay Start

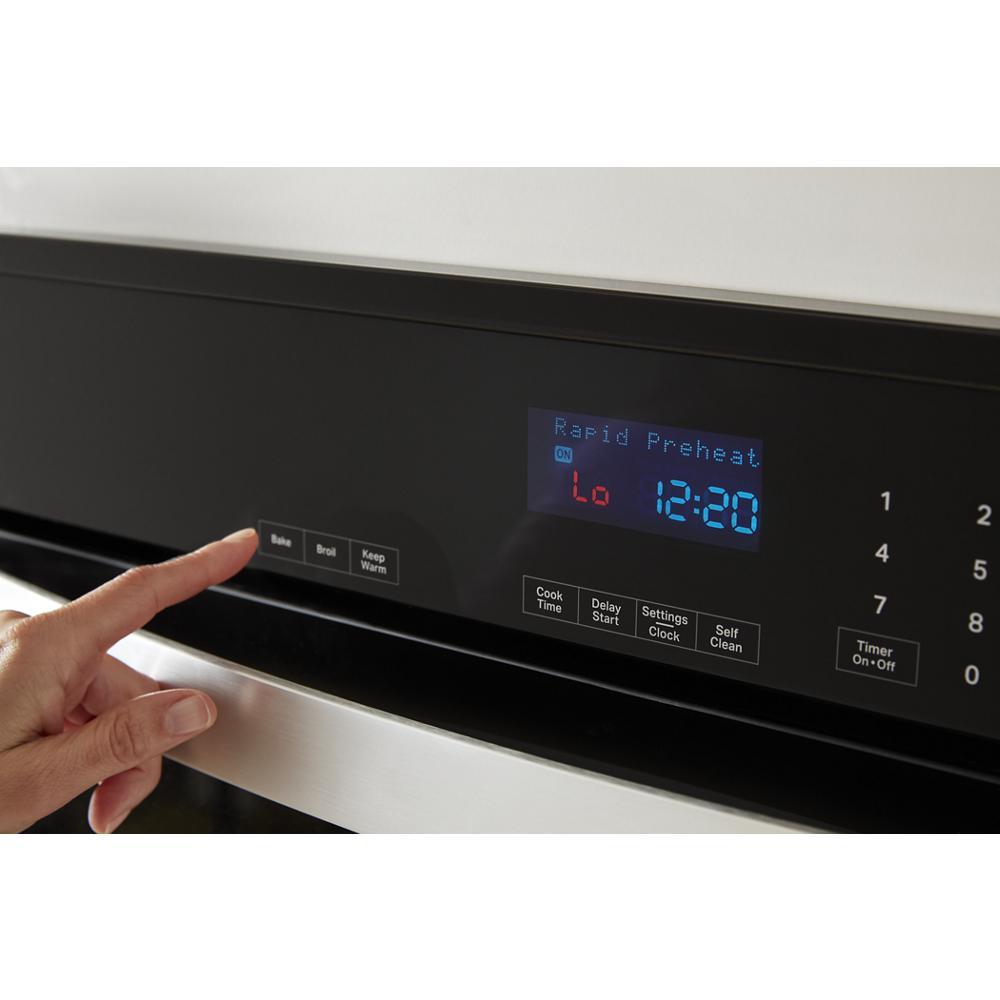

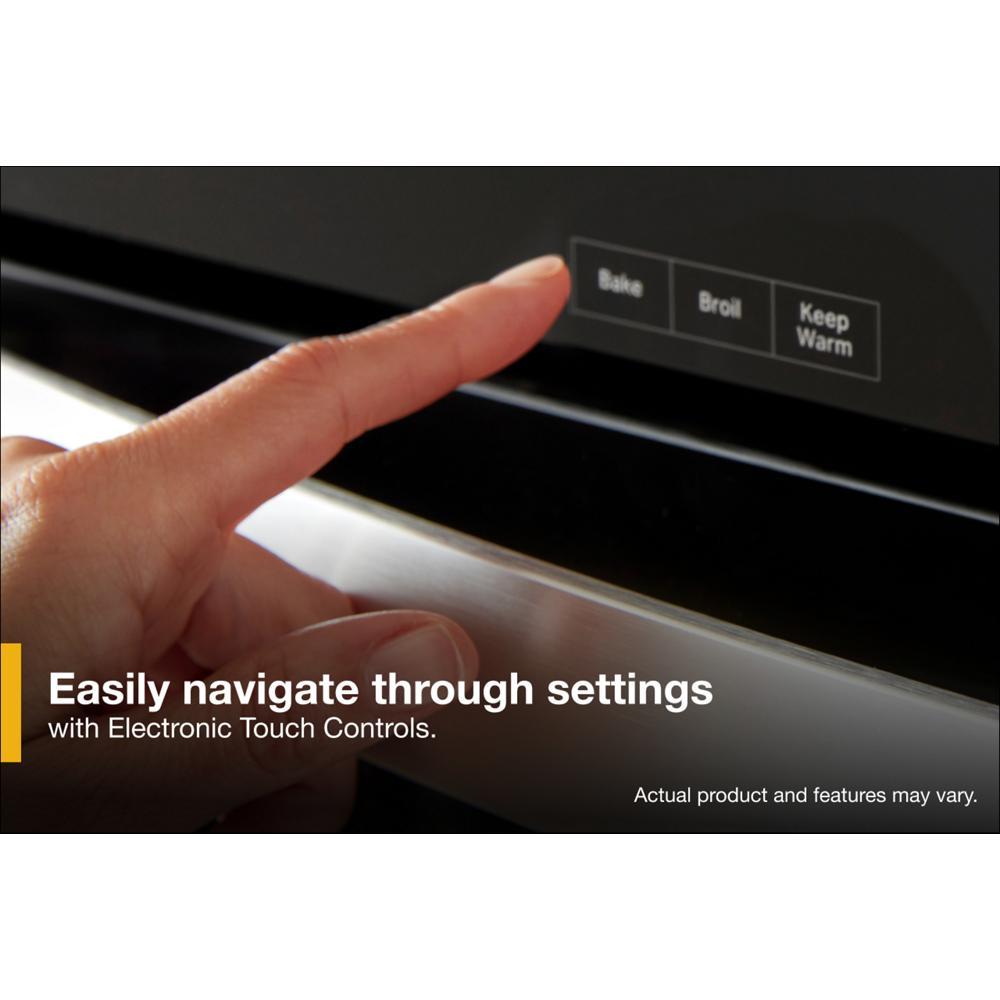

- Easily navigate through settings with Electronic Touch Controls
- Keep an eye on your meal through the Extra-Large Oven Window
- Fit your wall oven without remodeling with the FIT System
- A Hidden Bake Element creates a smooth surface for easy cleanup
- Dishes stay ready to serve with the Keep Warm Setting
- Heat the oven quickly with Rapid Preheat
- Clean up everyday spills with the Steam Clean option
Certifications | |
Ada Compliant | No |
Cul | Yes |
Energy Rating | 367 |
Prop65 | Standard |
Star K Certified | Star K Certified |
Ul | Yes |
Controls | |
Control Type | Electronic Touch |
Display Color | Blue |
Electronic Display Type | Digital |
Details | |
Delay Clean | Yes |
Flush Installation Approved | Yes |
Fuel Type | Electric |
Light Control | Oven Light Touch Pad |
Oven Automatic Shut-off | Yes |
Oven Type | Double |
Power On Indicator Light | Yes |
Temperature Conversion | No |

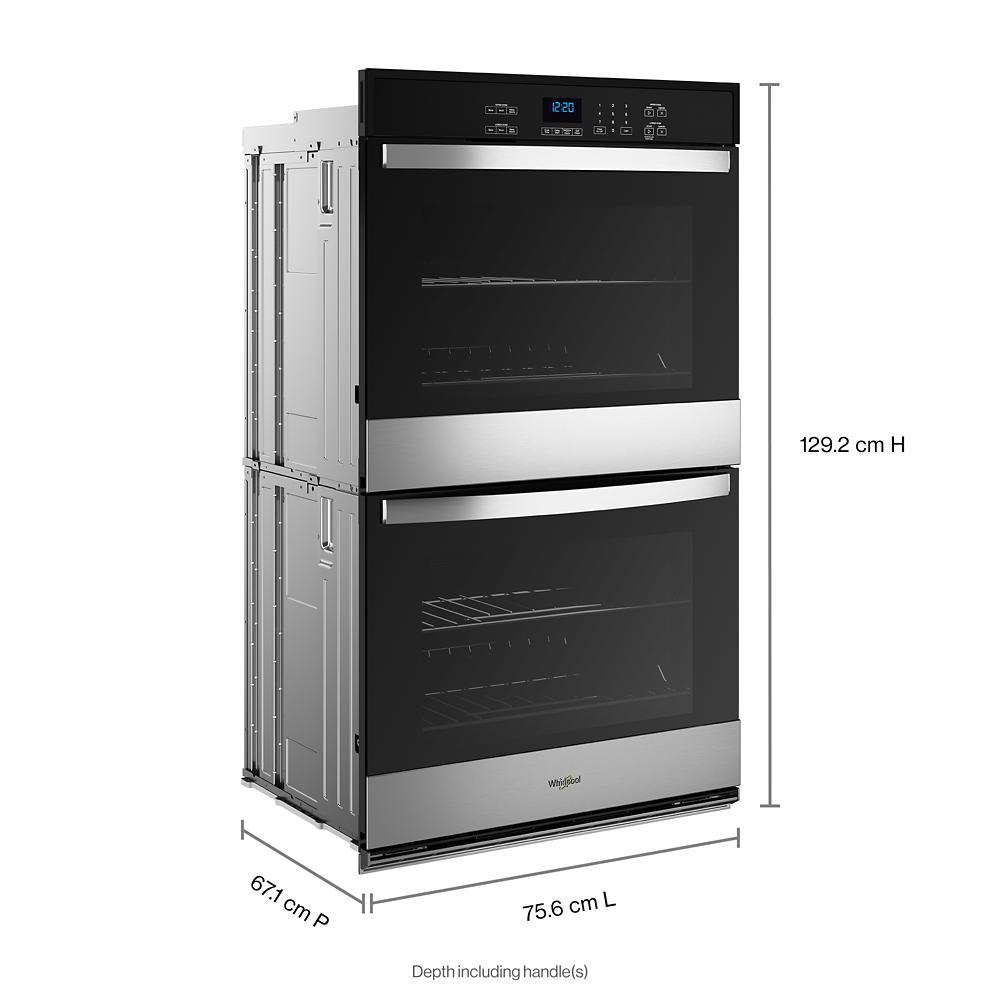

Dimensions | |
Carton Depth | 31 |
Carton Height | 54 |
Carton Width | 35 |
Cutout Depth | 24 |
Cutout Height | 50.25 |
Cutout Width | 28.5 |
Depth Closed Excluding Handles | 24.438 |
Depth Closed Including Handles | 26.438 |
Depth With Door Open 90 Degree | 46.188 |
Gross Weight | 264 |
Lower Oven Interior Depth | 19 |
Lower Oven Interior Height | 18 |
Lower Oven Interior Width | 25 |
Net Weight | 259 |
Upper Oven Interior Depth | 19 |
Upper Oven Interior Height | 18 |
Upper Oven Interior Width | 25 |
Electrical | |
Power Cord Included | No |
Exterior Details | |
Door Type | Metal & Glass |
Handle Color | Stainless Steel |
Handle Material | Metal |
Oven Window Size | Extra Large |
Microwave Details | |
Language Conversion | English/French/Spanish |
Oven Details | |
Bake Element Power | 2,800 W/2,427W |
Broiler Element Power | 3,000 W |
Broiler Location | Top of Oven |
Door Broil Position | Closed |
Door Lock | Yes |
Door Removable | Yes |
Hidden Bake Element | Yes |
Installable Under Cooktop | No |
Interior Coating | Porcelain |
Interior Color | Grey |
Light Type | Halogen |
Lower Oven Number of Oven Lights | 2 |
Number of Bake Elements | 1 |
Number of Broil Elements | 1 |

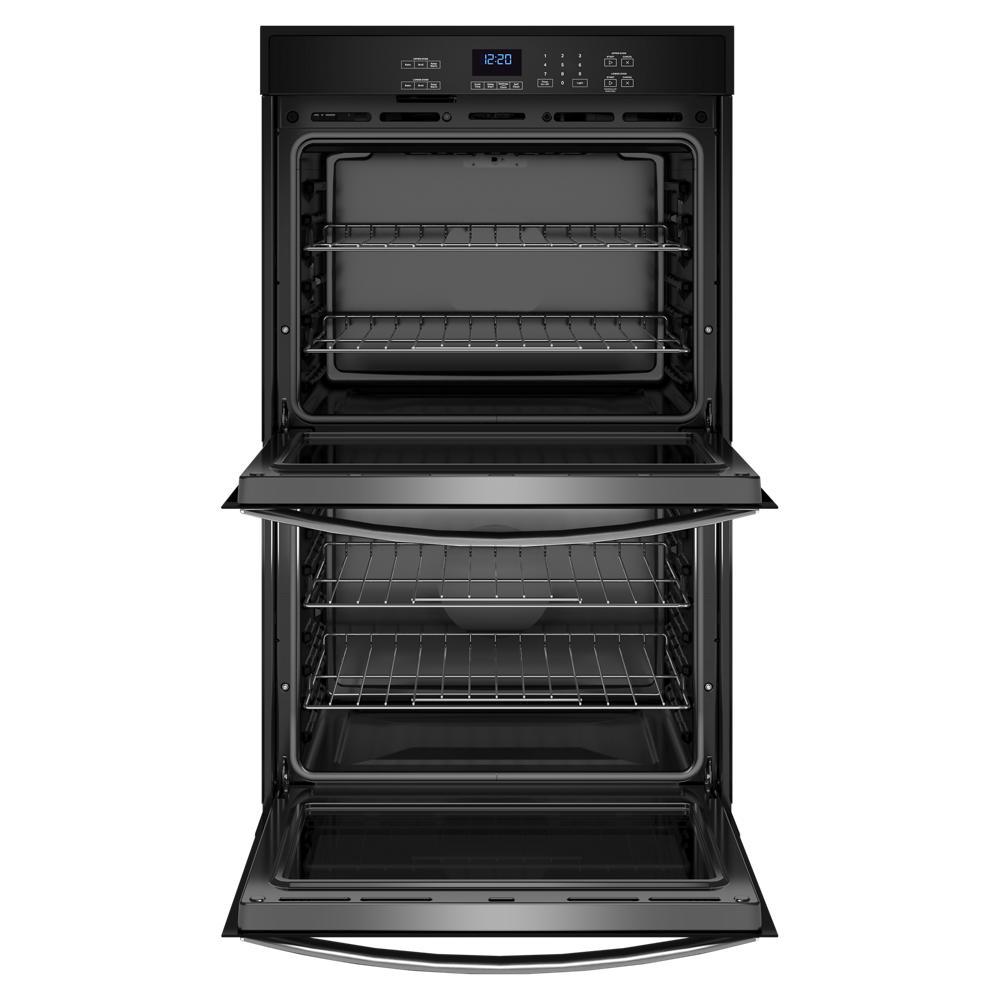

Number of Lower Oven Racks | 2 |
Number of Lower Rack Guides | 6 |
Number of Upper Oven Racks | 2 |
Number of Upper Rack Guides | 6 |
Oven Cleaning Type | Self-Cleaning |
Self-cleaning Oven Racks | No |
Upper Oven Number of Oven Lights | 2 |
Smart Compatibility | |
Connectivity | No |
Works With | No |
