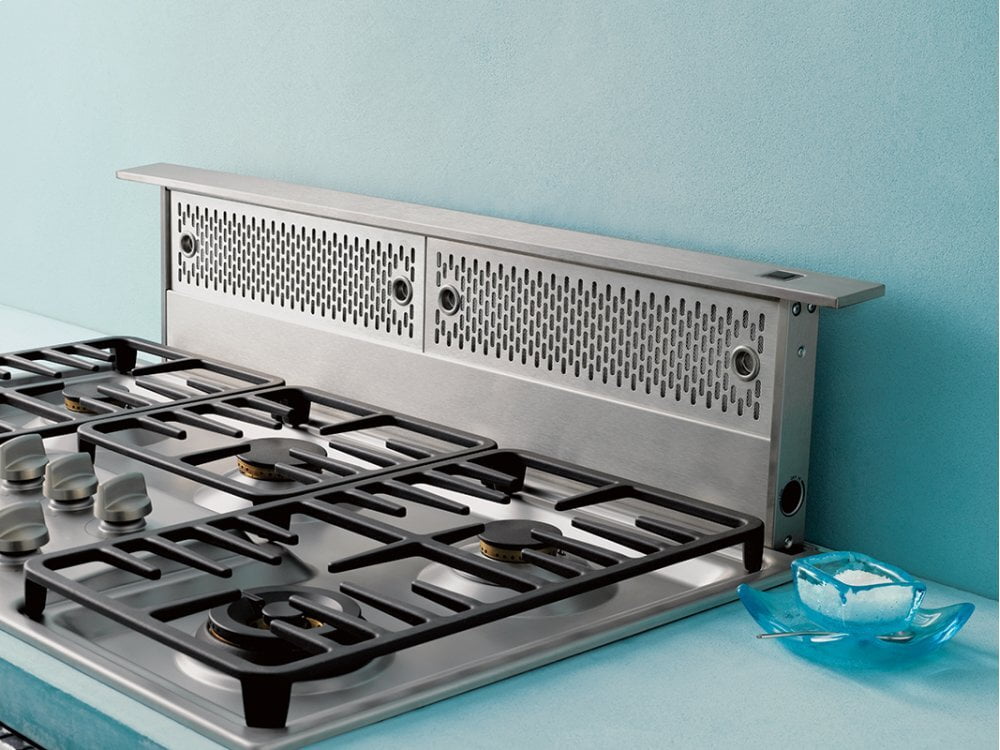

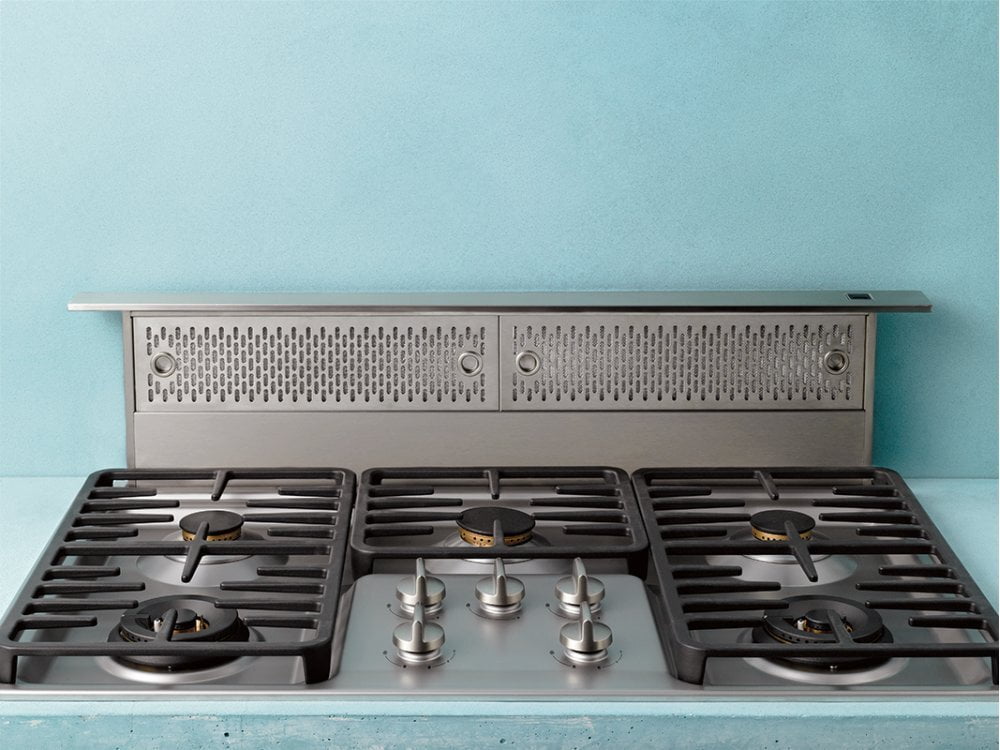

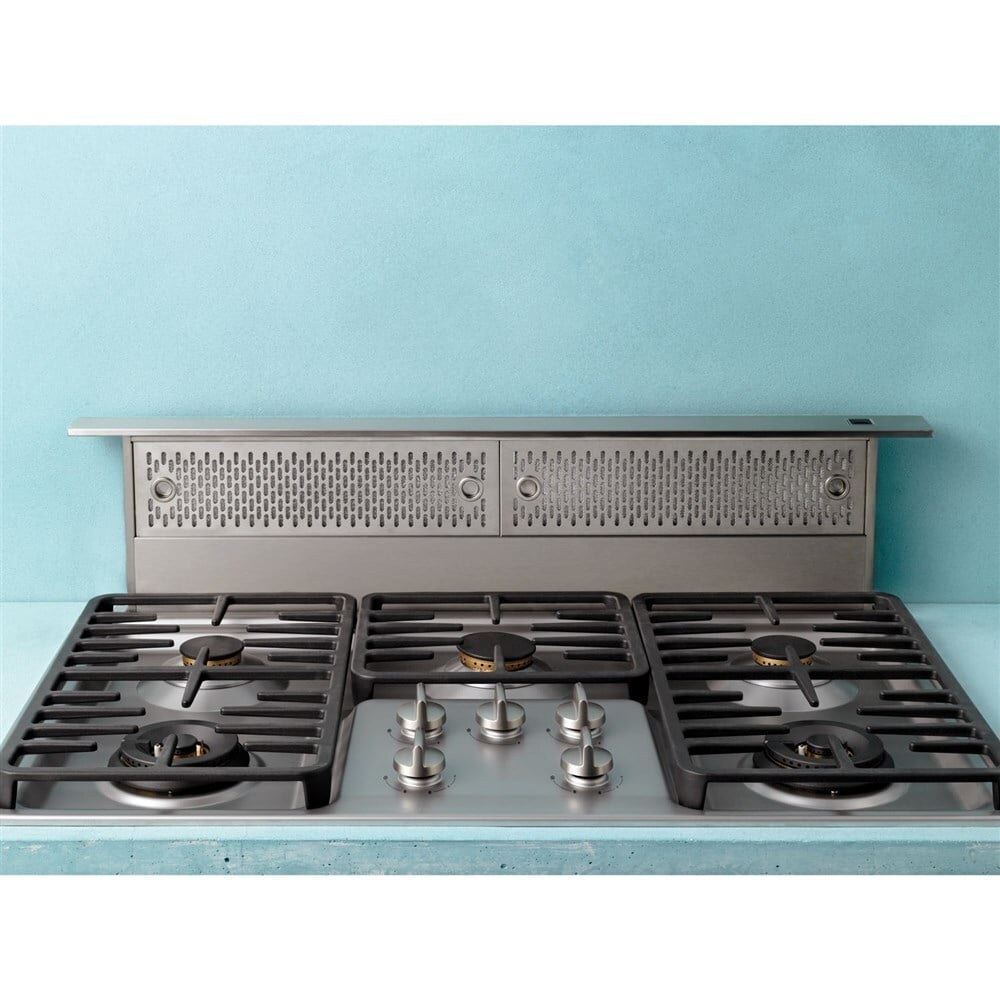

Zephyr DD1E36AS 36" Sorrento Downdraft
Ideal For Small Kitchens Or For Island Settings Where Ceilings Are Too High For Ducting, Sorrento Rises To The Occasion. The Brushed Stainless Steel Filter Unit Houses Quiet, Efficient Centrifugal Blowers. An Automatic Heat Sensor Adjusts Blowers In High-Heat Conditions. The Press Of A Button Lets You Conveniently Raise And Lower This Hood.
- 500 CFM
- Not Recirculating
- Mesh Filter
- Stainless Steel
- Internal Ducting
- Control Knob Controls
- Decorative Mesh Filters
UPC | 646328683633 |
BLOWER INCLUDED YES/NO | yes |
INTERNAL BLOWER 1 CFM | 500 |
CONTROLS TYPE | Control knob |
BLOWER SPEEDS | Infinite |
AUTOMATIC DELAY-OFF | yes |
CLEANAIR FUNCTION | no |
FILTER TYPE | decorative mesh |
DUCT DISCHARGE | horizontal |
DUCT SIZE, VERTICAL, INCHES | NA |
DUCT SIZE, HORIZONTAL, INCHES | 3.25 x 10 |
INPUT VOLTAGE | 120 |
MAXIMUM AMPERAGE | 4 |
NOMINAL WIDTH, INCHES | 36 |
NET WIDTH, INCHES | 36 |
DEPTH, INCHES | 2 |
HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 9.5 |
WEIGHT, LBS | 79.37 |
SHIPPING HEIGHT, INCHES | 11.02 |
SHIPPING WIDTH, INCHES | 34.65 |
SHIPPING LENGTH, INCHES | 39.61 |
SHIPPING WEIGHT, LBS | 83.77 |
